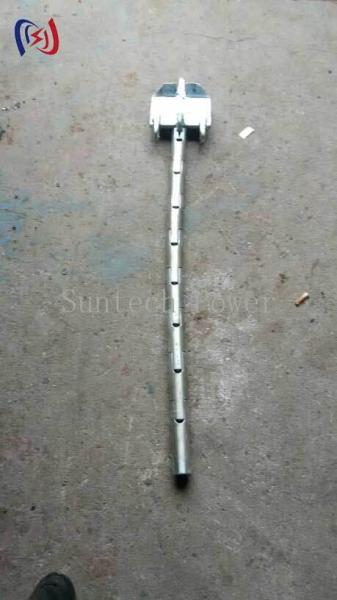

​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
Specifications
Brand Name :
Suntech Tower
Model Number :
SZ3A
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Get the Newest Price
Payment Terms :
L/C,T/T
Supply Ability :
5000 PCS/Month
Delivery Time :
3-5days
Packaging Details :
Plywood Case
Name :
Head Boards for Three Bundle Conductors
Item No. :
17228-17230
Model :
SZ3A-10
Rated Load :
100-180KN
Weight :
114-142KG
Steel Rop Length :
1x30+1x15M
Description

​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​


Core Design Features​​

  • ​​High-strength aluminum alloy frame​​ (6061-T6) with stainless steel hardware
  • ​​Rubber-coated clamps​​ to prevent conductor damage and reduce vibration
  • ​​Working Load Limit (WLL):​​ 15-75kN (depending on configuration)
  • ​​Compatible with 10-50mm diameter conductors​​ (ACSR/AAAC/ACCC types)
  • ​​Adjustable spacing​​ (400-800mm) for different bundle configurations
  • ​​UV-resistant polymer components​​ for long-term outdoor use


​​Operational Advantages​​
✔ ​​Reduces conductor galloping​​ by maintaining consistent spacing
✔ ​​Minimizes sub-span oscillations​​ with integrated damping features
✔ ​​Easy installation​​ with tool-free clamp adjustment
✔ ​​Corrosion-resistant​​ (ISO 9227 C4 class for harsh environments)
✔ ​​Low maintenance​​ design with self-lubricating components


​​Safety Certifications​​
✓ ​​IEEE 524​​ conductor installation standard compliance
✓ ​​IEC 61897​​ spacer damper requirements
✓ ​​OSHA 1910.269​​ live-line work certified
✓ ​​Non-conductive materials​​ for electrical safety


​​Maintenance Specifications​​
• ​​Annual visual inspection​​ for wear and damage
• ​​Replace rubber clamps​​ every 5 years or as needed
• ​​5000-cycle​​ service life guarantee
• ​​UV-resistant markings​​ for long-term identification


​​Typical Applications​​
➔ ​​Bundle conductor installations​​
➔ ​​Transmission line vibration control​​
➔ ​​Dead-end spacer applications​​
➔ ​​High-wind area conductor spacing​​
➔ ​​Emergency conductor repairs​



Item No. Model Rated Load(KN) Applicable Stringing Block Sheave Width(MM) Weight(KG) Steel rop length(M)
17228 SZ3A-10 100 100 114 1*30+1*15
17229 SZ3A-13 130 110 130
17230 SZ3A-18 180 110 142


​​Head Boards for Three Bundle Conductors Precision Spacer For ACSR Bundle Conductors​
