Specifications
Brand Name :
Suntech Tower
Model Number :
OPGW
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Get the Newest Price
Payment Terms :
L/C,T/T
Supply Ability :
8000 PCS/Month
Delivery Time :
3-5days
Packaging Details :
Plywood Case
Name :
Optical Cable Wire Gripper
Item No. :
20101-20104
Diameter :
8-20mm
Rated Load :
16-25KN
Weight :
3.8-5.6KG
Warranty :
1 year
Description

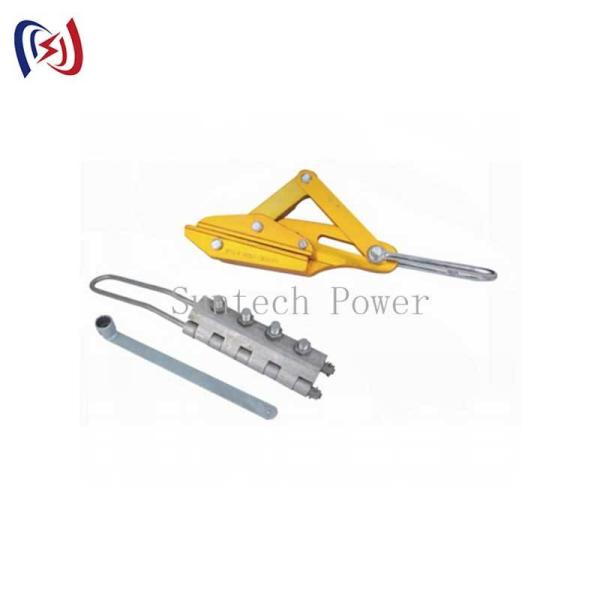

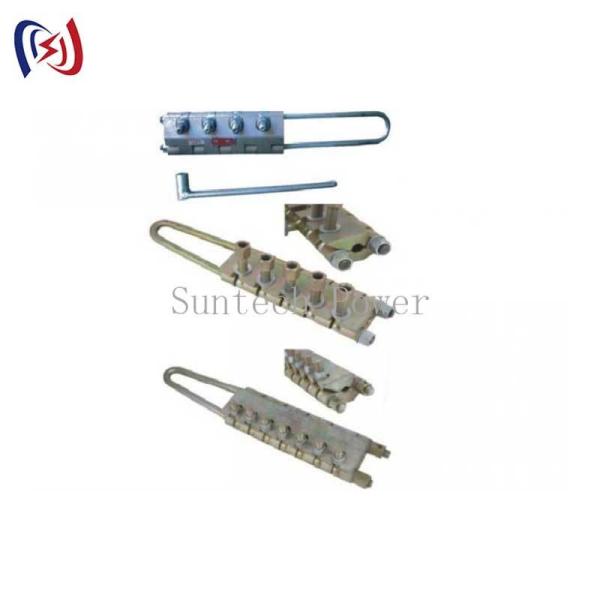

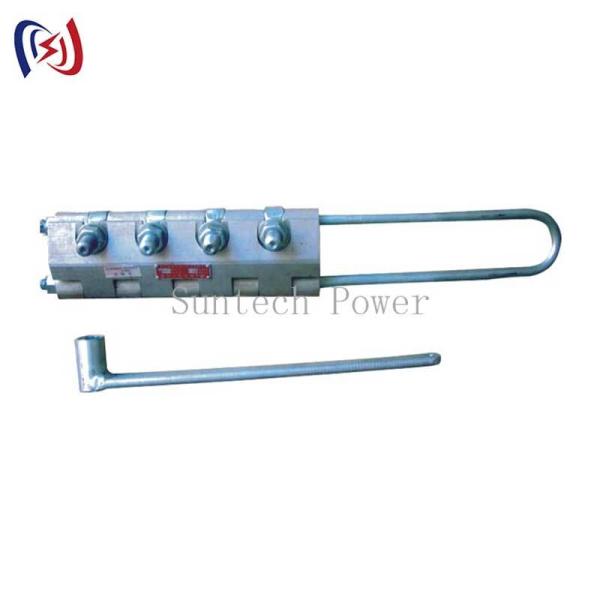

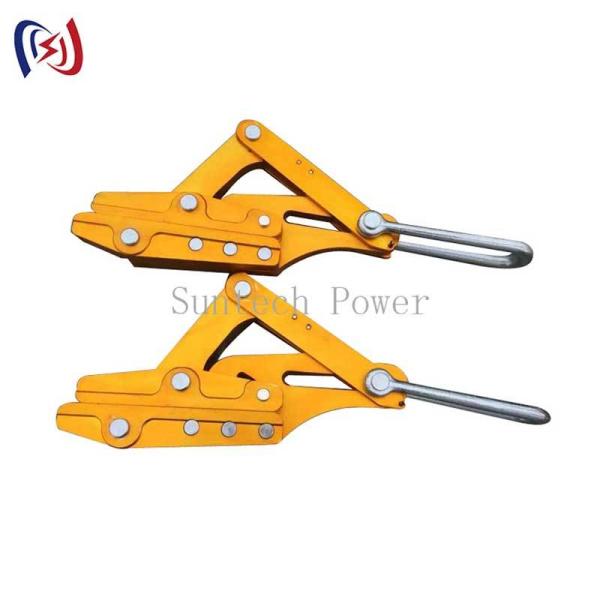

​​Optical Cable Wire Gripper Heavy Duty Clamping Tool For Fiber Optic Cable Installation​


Core Design Features​

  • ​​Non-marring jaw inserts​​ (UHMWPE or nylon) to protect delicate fiber optic cables
  • ​​Manual screw-adjustable clamping force​​ for precise tension control (5-50kN WLL)
  • ​​Lightweight aluminum alloy body​​ (6061-T6) with corrosion-resistant coating
  • ​​Self-centering mechanism​​ ensures even pressure distribution on cables
  • ​​Working Load Limit (WLL):​​ 3-30kN (color-coded for easy identification)
  • ​​Compatible with 8-24mm diameter optical cables​​ (including ADSS/OPGW types)


​​Operational Advantages​
✔ ​​Zero cable deformation​​ due to optimized pressure distribution
✔ ​​Tool-free jaw adjustment​​ with ergonomic handwheel
✔ ​​Corrosion-resistant​​ (ISO 9227 C4 class for coastal areas)
✔ ​​Integrated cable alignment guides​​ prevent twisting
✔ ​​Quick-release mechanism​​ for rapid cable insertion/removal


​​Safety Certifications​
✓ ​​IEC 60794-1​​ optical cable handling compliance
✓ ​​IEEE 1138​​ OPGW installation standard
✓ ​​Non-conductive materials​​ (20kV dielectric strength)


​​Maintenance Specifications​
• ​​Self-cleaning jaw grooves​​ require no lubrication
• ​​Field-replaceable wear pads​​ (tool-free change in <1 minute)
• ​​5000-cycle​​ service life guarantee
• ​​UV-resistant composite components​

​​Typical Applications​
➔ ​​OPGW initial stringing operations​​
➔ ​​ADSS cable mid-span repairs​​
➔ ​​Fiber optic splice tension holding​​
➔ ​​Underground cable pulling guidance​​
➔ ​​Temporary bypass circuit setup​

​​Optional Accessories​

  • ​​Insulated hot-stick adapter​​ (for live work)
  • ​​Laser alignment guide​​ for precise positioning


Item number

Cable Diameter

(MM)

Rated Load

(KN)

Weight

(KG)

20101 Φ8-20 25 3.8
20102 Φ20 45 3.8
20103 Φ11-15 16 5.6
20104 Φ15-17 16 5.6


​​Optical Cable Wire Gripper Heavy Duty Clamping Tool For Fiber Optic Cable Installation​
