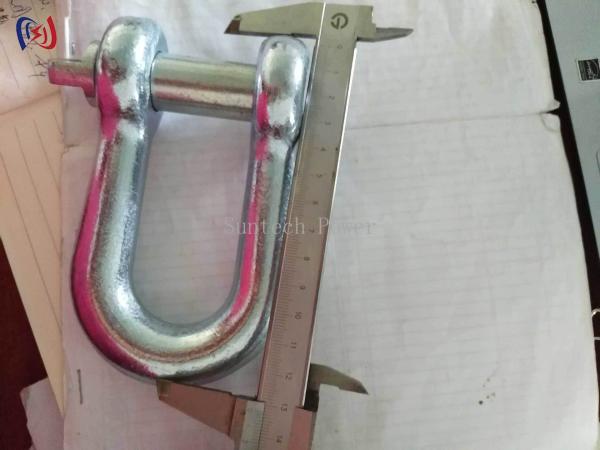

High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​
Specifications
Brand Name :
Suntech Tower
Model Number :
GXK
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Get the Newest Price
Payment Terms :
L/C,T/T
Supply Ability :
7000 PCS/Month
Delivery Time :
5-7days
Packaging Details :
Plywood Case
Name :
High Strength Shackle
Item No. :
17131-17139
Model :
GXK-1-GXK-30
Rated Load :
10-300KN
Weight :
1.15-7.5KG
Warranty :
1 year
Description

High Strength Shackle Heavy Duty Lifting Connector For Power Line Construction​


Core Design Features​​

  • ​​Drop-forged alloy steel construction​​ (Grade 100 or equivalent) for maximum strength
  • ​​Hot-dip galvanized finish​​ (ISO 1461) for superior corrosion resistance
  • ​​Working Load Limit (WLL):​​ 5-50 tons (clearly stamped on body)
  • ​​Safety factor:​​ 5:1 minimum breaking strength to WLL ratio
  • ​​Standard pin types:​​ Screw pin, bolt-type, or round pin configurations
  • ​​Smooth radius design​​ to prevent cable abrasion


​​Operational Advantages​​
✔ ​​30% stronger​​ than standard carbon steel shackles
✔ ​​360° swivel capability​​ for optimal load alignment
✔ ​​Corrosion-resistant​​ for coastal and industrial environments
✔ ​​Easy visual inspection​​ points for safety checks
✔ ​​Interchangeable pins​​ for different rigging needs


​​Safety Certifications​​
✓ ​​ASME B30.26​​ rigging hardware standard
✓ ​​EN 13889:2003​​ forged steel shackle certification
✓ ​​DNV-GL certified​​ for marine applications
✓ ​​Non-magnetic versions​​ available for substation use


​​Maintenance Specifications​​
• ​​Annual load testing​​ recommended for critical applications
• ​​Monthly visual inspection​​ for cracks or deformation
• ​​Grease lubrication​​ of screw threads (NLGI #2)
• ​​UV-resistant markings​​ for long-term identification


​​Typical Applications​​
➔ ​​Conductor block rigging​​
➔ ​​Tower component lifting​​
➔ ​​Guy wire tensioning​​
➔ ​​Crane load securement​​
➔ ​​Temporary work platform support​

​

​​Optional Accessories​​

  • ​​Safety latch kits​​ for screw pin models
  • ​​Custom marking tags​​ for asset tracking
  • ​​Arctic-grade versions​​ (-40°C operation)


Item number Model

Rated Load

(KN)

Main Size

(mm)

Weight

(kg)
A B C D
17131 GXK-1 10 55 42 12 20 0.15
17132 GXK-2 20 67 58 16 22 0.29
17133 GXK-3 30 97 82 20 34 0.80
17133A GXK-3A 30 97 112 20 34 0.80
17134 GXK-5 50 107 89 22 39 1.12
17134A GXK-5A 50 107 131 22 39 1.29
17135 GXK-8 80 125 96 30 42 2.40
17136 GXK-10 100 141 114 34 48 3.56
17137 GXK-16 160 152 139 37 54 4.80
17138 GXK-20 200 164 140 39 60 5.17
17139 GXK-30 300 186 146 50 68 7.5
