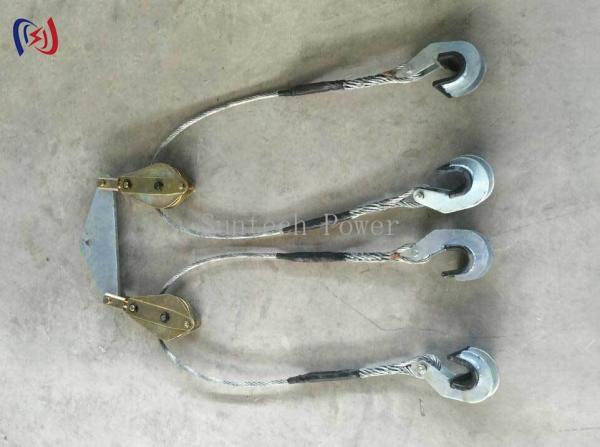

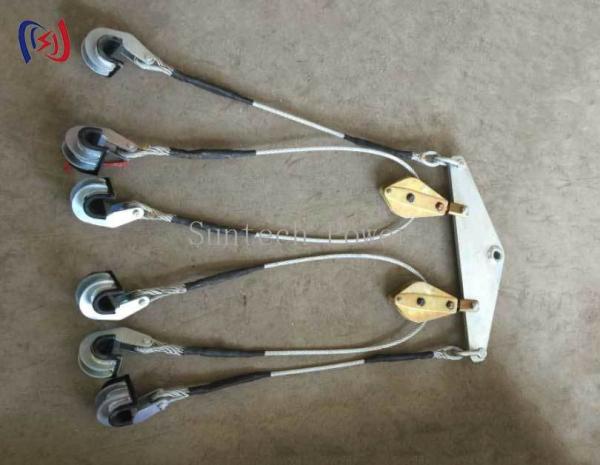

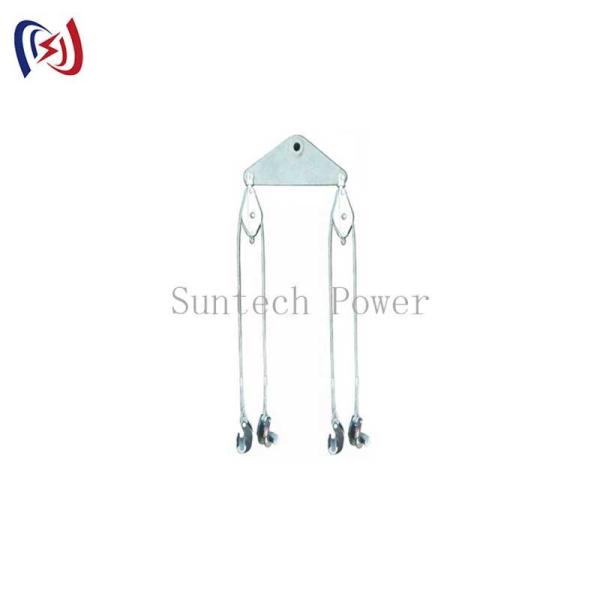

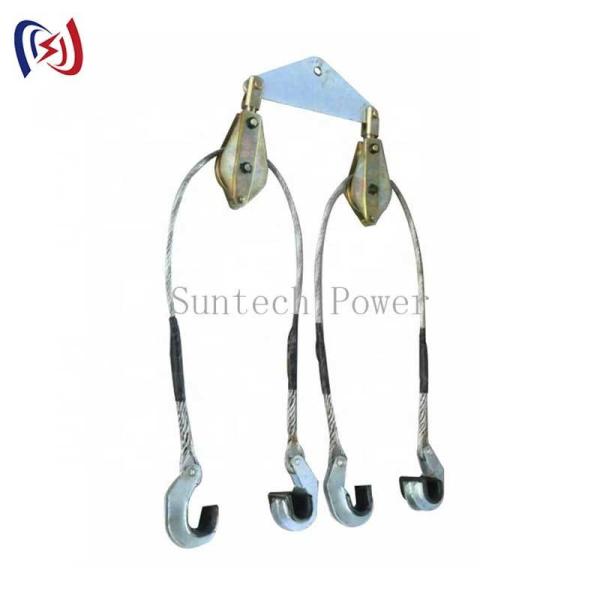

​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
Specifications
Brand Name :
Suntech Tower
Model Number :
ST25
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
8000 PCS/Month
Delivery Time :
3-5days
Packaging Details :
Plywood Case
Name :
Multiple Fission Conductor Lifter
Item No. :
19112-19119B
Model :
ST25-2-ST320-8
Rated Load :
2x12-8x40KN
Hook slot length :
60-160
Weight :
13-160KG
Description

​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​


Core Design Features​​

  • ​​Modular lifting arms​​ with independent tension control for each conductor
  • ​​High-strength aluminum alloy frame​​ (7075-T6) with stainless steel components
  • ​​Working Load Limit (WLL):​​ 10-100kN per conductor (configurable)
  • ​​Compatible with 4-8 bundle conductors​​ (10-50mm diameter each)
  • ​​Self-locking quick-release mechanisms​​ for safe conductor handling
  • ​​Corrosion-resistant coating​​ (ISO 9227 C5-M class for harsh environments)


​​Operational Advantages​​
✔ ​​Simultaneous lifting​​ of multiple conductors with balanced load distribution
✔ ​​50% faster installation​​ compared to single-conductor methods
✔ ​​Prevents conductor twisting​​ during lifting operations
✔ ​​Tool-free adjustments​​ for different bundle configurations
✔ ​​Integrated load indicators​​ for each lifting arm


​​Safety Certifications​​
✓ ​​IEEE 524​​ conductor installation standard compliance
✓ ​​OSHA 1910.269​​ live-line work certified
✓ ​​EN 13414-1:2020​​ dynamic load testing
✓ ​​Non-conductive components​​ for electrical safety


​​Maintenance Specifications​​
• ​​Self-lubricating bearings​​ (10,000-hour service life)
• ​​Field-replaceable wear pads​​ (tool-free change in <5 minutes)
• ​​5,000-cycle​​ operational lifespan
• ​​UV-resistant markings​​ for long-term identification


​​Typical Applications​​
➔ ​​Bundle conductor installation/removal​​
➔ ​​Dead-end tension stringing operations​​
➔ ​​Transposition tower conductor handling​​
➔ ​​Emergency conductor repairs​​
➔ ​​River crossing conductor installations​


Item number Model

Rated Load

(KN)

Hook slot length

(mm)

Weight

(kg)

 Note
19112 ST25-2 2x12 120 13 Two
19113 ST50-2 2x15 160 25


Two
19114 ST80-2 2x40 250 40 Two
19108 ST36-3 3x12 120 21


Three
19109 ST75-3 3x25 160 35 Three
19110 ST120-3 3x40 250 60 Three
19115 ST48-4 4x12 120 35 Four
19116 ST100-4 4x25 160 60 Four
19117 ST160-4 4x40 250 90 Four
19118A ST150-6 6x25 160 70 Sex
19118B ST240-6 6x40 250 110 Sex
19119A ST200-8 8x25 160 120 Eight
19119B ST320-8 5+6 250 160 Eight


​​Multiple Fission Conductor Lifter Professional Lifting Device For Power Grid Projects​
