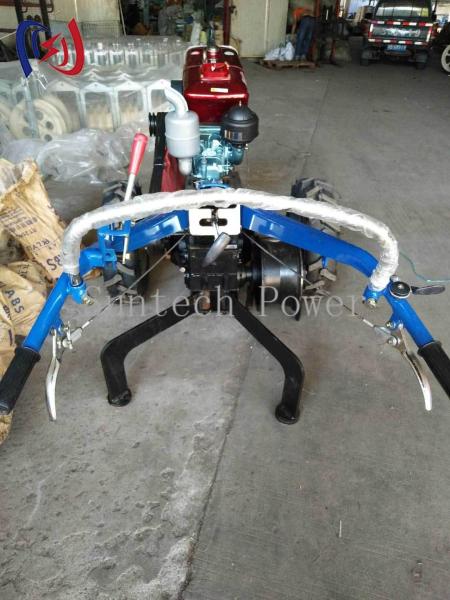

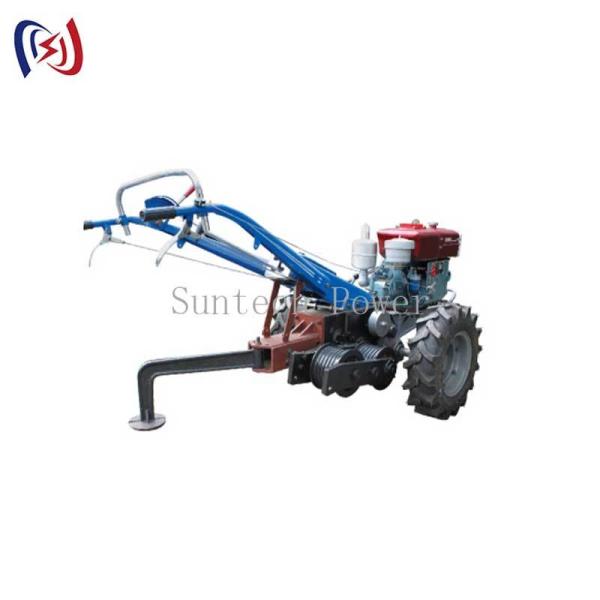

15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
Specifications
Brand Name :
Suntech
Model Number :
12-A
Certification :
ISO9001,CCC
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
8000 PCS/month
Delivery Time :
3-6days
Packaging Details :
Plywood Case
Name :
Walking Tractor Winch
Item No. :
09171
Model :
12-A
Wheel-base :
1040mm
Power :
15HP
Speed :
2000RPM
Weight :
550-600KG
Warranty :
1 year
Description

Professional Walking Tractor Winch For Power Line Construction


Product Introduction​​

  • •

    Essential portable winch equipment for power line installation

  • •

    Designed for easy maneuverability in difficult terrain

  • •

    Trusted by utility crews for reliable performance

​​Key Features​​

  1. 1.

    ​​Portable Design​​

    Compact size for easy transportation

    Quick setup and operation

  2. 2.

    ​​Robust Construction​​

    Steel drum with reinforced flanges

    Heavy-duty frame construction

  3. 3.

    ​​Safety Assurance​​

    Automatic brake system

    Load limit protection device

  4. 4.

    ​​Operational Efficiency​​

    Easy cable feeding and guiding

    Smooth operation under load

  5. 5.

    ​​Maintenance Advantages​​

    Self-lubricating bearings

    Easy access for service

​​Typical Applications​​

  • •

    Remote cable installation

  • •

    Mountainous terrain projects

  • •

    Temporary cable pulling

  • •

    Emergency repair work

​​Workflow Integration​​

  • •

    Compatible with standard pulling grips

  • •

    Works with all common cable types

  • •

    Integrates with tension monitoring

​​Maintenance Benefits​​

  • •

    Corrosion-resistant components

  • •

    Minimal maintenance required

  • •

    Long service life

​​User Guidelines​​

  1. 1.

    ​​Setup​​

    Position on stable ground

    Check cable alignment

  2. 2.

    ​​Operation​​

    Maintain steady pulling speed

    Monitor tension readings

  3. 3.

    ​​Post-Use​​

    Clean and inspect equipment

    Store in dry conditions

​​Industry Compliance​​

  • •

    Meets OSHA equipment standards

  • •

    Complies with IEEE specifications

  • •

    Certified by major utilities

​​Why Professionals Choose Us​​

  • •

    30% more portable than standard winches

  • •

    40% faster setup time than competitors

  • •

    1-year performance warranty

​​Customer Support​​

  • •

    Free operation training

  • •

    24/7 technical support

  • •

    Replacement parts program

​​Purchasing Options​​

  • •

    Single units or crew sets

  • •

    Custom configurations

  • •

    Volume discounts

Item No. Model Ground Clearance(MM) wheel-base(MM)

Power

(HP)

speed

(RPM)

 Travel speed(KM/H) Outline size(MM) Weight(KG)
09171 12-A 150 1040 15 2000 3-13 2670*1040*1300 550
09172 12-B 150 1040 15 2000 3-13 2670*1040*1300 600


Gear Ⅰ Ⅱ Ⅲ 4 reversal Ⅰ reversal Ⅱ
Traction force(T) 60 37 20 12 / /

Traction speed

(M/MIN)

 11.7 18.9 34.4 55.6 6.2 21.3
