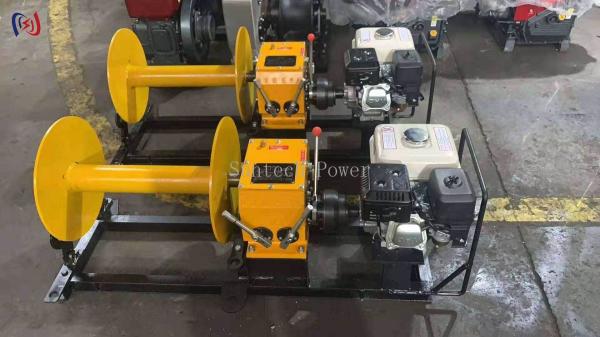

3-5T Cable Pulling Winch JJQ-30 for Power Line Construction
3-5T Cable Pulling Winch JJQ-30 for Power Line Construction
3-5T Cable Pulling Winch JJQ-30 for Power Line Construction
3-5T Cable Pulling Winch JJQ-30 for Power Line Construction
Specifications
Brand Name :
Suntech
Model Number :
JJQ-30
Certification :
ISO9001
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
8000 PCS/Month
Delivery Time :
3-6days
Packaging Details :
Plywood Case
Name :
Cable Pulling Winch
Item No. :
08155-08156
Model :
JJQ-30
Tractive force :
3-5T
Power :
4.04-6.61KW
Weight :
100-150KG
Description

Professional Cable Pulling Winch For Power Line Construction


Product Introduction​​

  • •

    Essential cable installation equipment for power line projects

  • •

    Designed for smooth and controlled cable pulling operations

  • •

    Trusted by utility professionals for reliability and safety

​​Key Features​​

  1. 1.

    ​​Smooth Cable Pulling​​

    Precision gear system for controlled operation

    Even cable tension maintenance

  2. 2.

    ​​Robust Construction​​

    Steel drum with reinforced flanges

    Heavy-duty frame construction

  3. 3.

    ​​Safety Assurance​​

    Automatic brake system

    Load limit protection device

  4. 4.

    ​​Operational Efficiency​​

    Easy cable feeding and guiding

    Smooth operation under load

  5. 5.

    ​​Maintenance Advantages​​

    Self-lubricating bearings

    Easy access for service

​​Typical Applications​​

  • •

    Underground cable installation

  • •

    Overhead line stringing

  • •

    Substation cable pulling

  • •

    Emergency cable replacement

​​Workflow Integration​​

  • •

    Compatible with standard pulling grips

  • •

    Works with all common cable types

  • •

    Integrates with tension monitoring systems

​​Maintenance Benefits​​

  • •

    Corrosion-resistant components

  • •

    Minimal maintenance required

  • •

    Long service life

​​User Guidelines​​

  1. 1.

    ​​Setup​​

    Secure winch to stable base

    Check cable alignment

  2. 2.

    ​​Operation​​

    Maintain steady pulling speed

    Monitor tension readings

  3. 3.

    ​​Post-Use​​

    Clean and inspect equipment

    Store in dry conditions

​​Industry Compliance​​

  • •

    Meets OSHA equipment standards

  • •

    Complies with IEEE specifications

  • •

    Certified by major utilities

​​Why Professionals Choose Us​​

  • •

    30% smoother operation than competitors

  • •

    40% more durable than standard winches

  • •

    1-year performance warranty

​​Customer Support​​

  • •

    Free operation training

  • •

    24/7 technical support

  • •

    Replacement parts program

​​Purchasing Options​​

  • •

    Single units or crew sets

  • •

    Custom configurations

  • •

    Volume discounts


Item No. Model

Rotation

direction

 Gear

rotational

speed

(RPM)

Traction

speed

(M/MIN)

Tractive

force(T)

 Power(KW) Outline(mm) Weight(KG)
08155

JJQ-30

6HP

Gasoline

engine

 corotation

I slow

 9.0 4.0 3.0 4.04 1000*500*560 100

Ⅱ fast

 16.0 6.6 1.8
reversal reverse gear 7.5 3.3 No lifting
08156

JJQ-50

9HP

Gasoline

engine

 corotation I slow 6.5 4.0 5.0 6.61 1400*510*650 150
Ⅱ fast 16.0 9.0 2.2
reversal reverse gear 7.0 4.0 No lifting
