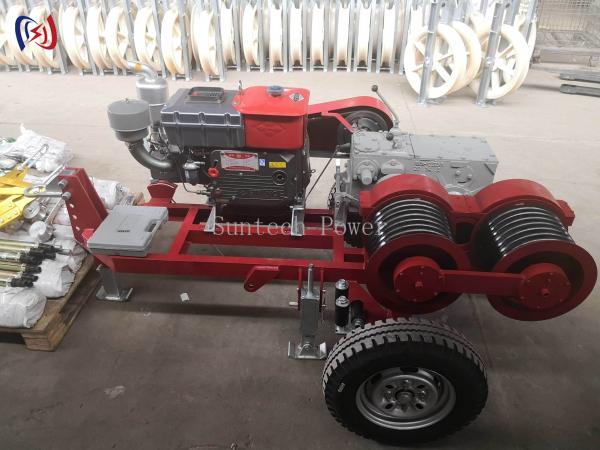

6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
6.3-9KW Double Drum Winch for Power Line Construction JJCS-50J
Specifications
Brand Name :
Suntech
Model Number :
JJCS-50J
Certification :
ISO9001,CCC
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
8000 PCS/month
Delivery Time :
3-5days
Packaging Details :
Plywood Case
Name :
Double Drum Winch
Item No. :
09151-09162
Model :
JJCS-50J
Power :
6.3-9KW
Speed :
2000-3600RPM
Weight :
270-700KG
Description

Professional Double Drum Winch For Power Line Construction


​Product Introduction​​

  • •

    Essential dual-cable handling equipment for power line projects

  • •

    Designed for simultaneous or independent cable operations

  • •

    Trusted by utility professionals for reliability and versatility

​​Key Features​​

  1. 1.

    ​​Dual Drum Operation​​

    Independent drum control system

    Simultaneous or separate cable handling

  2. 2.

    ​​Robust Construction​​

    Steel drums with reinforced flanges

    Heavy-duty frame and mounting system

  3. 3.

    ​​Safety Assurance​​

    Independent braking for each drum

    Load limit protection devices

  4. 4.

    ​​Operational Efficiency​​

    Smooth cable feeding and guiding

    Precise tension control

  5. 5.

    ​​Maintenance Advantages​​

    Self-lubricating bearing systems

    Easy access for service and maintenance

​​Typical Applications​​

  • •

    Parallel cable installation

  • •

    Guy wire tensioning operations

  • •

    Substation cable pulling

  • •

    Emergency restoration work

​​Workflow Integration​​

  • •

    Compatible with standard pulling grips

  • •

    Works with all common cable types

  • •

    Integrates with tension monitoring systems

​​极速Maintenance Benefits​​

  • •

    Corrosion-resistant components

  • •

    Minimal maintenance requirements

  • •

    Long service life

​​User Guidelines​​

  1. 1.

    ​​Setup​​

    Secure winch to stable foundation

    Check cable alignment on both drums

  2. 2.

    ​​Operation​​

    Maintain controlled pulling speeds

    Monitor both drum tensions

  3. 3.

    ​​Post-Use​​

    Clean and inspect all components

    Store in dry protected area

​​Industry Compliance​​

  • •

    Meets OSHA equipment standards

  • •

    Complies with IEEE specifications

  • •

    Certified by major utilities

​​Why Professionals Choose Us​​

  • •

    35% more efficient than single drum systems

  • •

    40% more versatile operation capabilities

  • •

    1-year performance warranty

​​Customer Support​​

  • •

    Free operation training

  • •

    24/7 technical support

  • •

    Replacement parts program

​​Purchasing Options​​

  • •

    Single units or complete systems

  • •

    Custom configurations available

  • •

    Volume discounts for utilities


Item No. 09151 09152 09162
Model JJCS-50J JJQS-50J JJCS-50T
Engine Model

KF186A

Diesel Engine

Honda 390

Gasoline Engine

S195G

Diesel Engine
Power(KW) 6.3 6.6 9
Speed(RPM) 2600 3600 2000

Pull force

(KN)/

Speed

(M/MIN)

 Slow 50*6.0,30/10 50/6.0,30/10 50/3.1,40/9.6
Moderate / / 45/7.1,17/22.3
Fast 13/23,10/30 13/23,10/30 33/11.3,10/35.6
Reverse -/5,-/17 -/5,-/17 -/7.35
Drum bottom of groove diameter Φ230 Φ230 Φ300
outline size(MM) 1280*770*600 1280*770*600 2440*1300*1140
Weight(KG) 280 270 700
