Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
Specifications
Brand Name :
Suntech
Model Number :
QHJ
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
Western Union, L/C, T/T, T/T
Supply Ability :
200pcs/month
Delivery Time :
7-10days after Payment
Packaging Details :
Exported Cartons and Pallets
Material :
Insulated Plate
Type :
Hoisting Tackle
Name :
Insulated Tackle
Application :
Construction Transmission Line
Capacity :
1,2,3,5T
Warranty :
One Year
Description

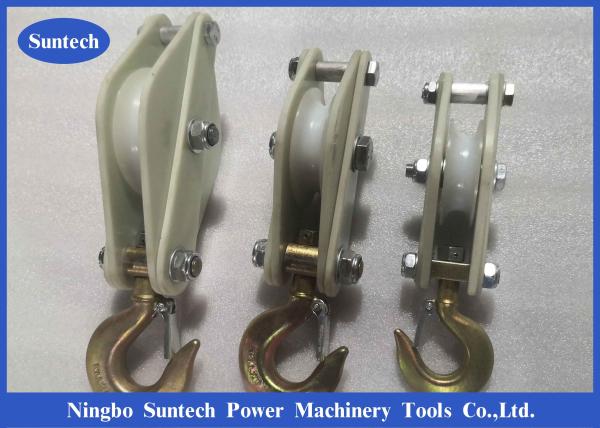

Epoxy Resin Plate Tower Erection Stringing Pulley Block Insulated Hoisting Tackle

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,

inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Item number Model Number of sheaves Rated load (kN) MAX. Rope Diameter(mm) Weight (kg)
11401 QHJ1x1 1 10 Φ8 1.8
11402 QHJ1x2 2 Φ6 1.8
11403 QHJ1x3 3 Φ6 2.1
11411 QHJ2x1 1 20 Φ10 2.9
11412 QHJ2x2 2 Φ8 3.1
11413 QHJ2x3 3 Φ8 3.8
11421 QHJ3x1 1 30 Φ11 4.1
11422 QHJ3x2 2 Φ10 4.3
11423 QHJ3x3 3 Φ8 5.3
11424 QHJ3x4 4 Φ8 6.3
11431 QHJ5x1 1 50 Φ13 5.6
11432 QHJ5x2 2 Φ11 6.1
11433 QHJ5x3 3 Φ10 7.3
11434 QHJ5x4 4 Φ10 8.3
11441 QHJx1 1 50 Φ8 1.3
11442 QHJx2 2

Φ6

 1.3
11443 QHJx3 3 Φ6 1.8

Remarks:

1.Product is made of Epoxy resin plate with MC nylon wheel,it has light weight.

2.Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.

3.Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.

Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate

Other Hoisting Tackle for your referenc.

Tower Erection Stringing Pulley Block Hoisting Tackle Insulated Epoxy Resin Plate
