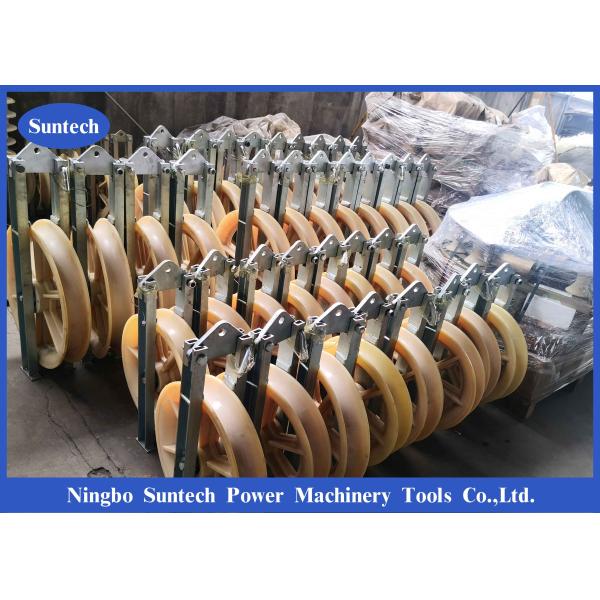

Transmission Line Single Large Diameter Conductor Stringing Blocks
Transmission Line Single Large Diameter Conductor Stringing Blocks
Transmission Line Single Large Diameter Conductor Stringing Blocks
Transmission Line Single Large Diameter Conductor Stringing Blocks
Transmission Line Single Large Diameter Conductor Stringing Blocks
Transmission Line Single Large Diameter Conductor Stringing Blocks
Specifications
Brand Name :
Suntech
Model Number :
SHDN,SHD
Certification :
ISO & CE
Place of Origin :
Ningbo,China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets per month
Delivery Time :
10-15 DAYS AFTER DEPOSIT
Packaging Details :
Containers By Sea
Name :
Stringing Pulley Block
Sheave Material :
MC Nylon
Frame :
Steel Tube
Rated Load :
20KN-100KN
Apply :
Constructure Site
Warranty :
at least 1 Year
Description

Transmission Line Single Large Diameter Conductor Stringing Blocks

Application:

It is suitable to string stranded aluminum and ACSR conductors on tangent structures. All the sheaves are

mounted on ball bearings. The frame is made of galvanized steel. Compression sleeves, swivel connectors,

and pulling rope connectors can pass through the groove.

Note:

1.Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks

could be supplied on request.

2.The data in the model means the diameter of sheave X width of sheave (mm).

Shipment

1. The blocks will be shipped in container or by air.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The blocks will be loaded in plywood case.

2. It also can be packed in wooden case or steel frame case.

Model Wheel size Diameter x Width Conductor size Rated load Weight Wheel material
(mm) (mm2) (kN) (kg)
SHD-508X75 508X75 ≤400 40 85.5 Middle steel
SHD-660X100 660X100 ≤500 20 106 Two Nylon
SHDN-508X75 508X75 ≤400 40 60 Nylon
SHDN-660X100 660X100 ≤500 40 85
SHDN-822X110 822X110 ≤630 60 100
SHDN-916X110 916X110 ≤800 80 140
SHDN-1040X125 1040X125 ≤1000 110 210
SHDNN-255X110 255X110 ≤630 100 160
