Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line
Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line
Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line
Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line
Specifications
Brand Name :
Suntech
Model Number :
SHDN
Certification :
ISO
Place of Origin :
Zhejiang, China
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
800pcs per month
Delivery Time :
7-10 workdays
Packaging Details :
Exporting Containers and Cases
Name :
Aluminum Conductor Pulley
Material :
Steel wheel,nylon
Model :
SHDN660 SHSQN750 SHSQN822 SHWQN916
Inner Size :
408,560, 640, 710, 800 Mm
Outside Dia :
508,660,750, 822, 916 Mm
Usage :
Construction Site
Description

Bundled Aluminum Five Conductor Pulley Blcok For 220KV Transmission Line

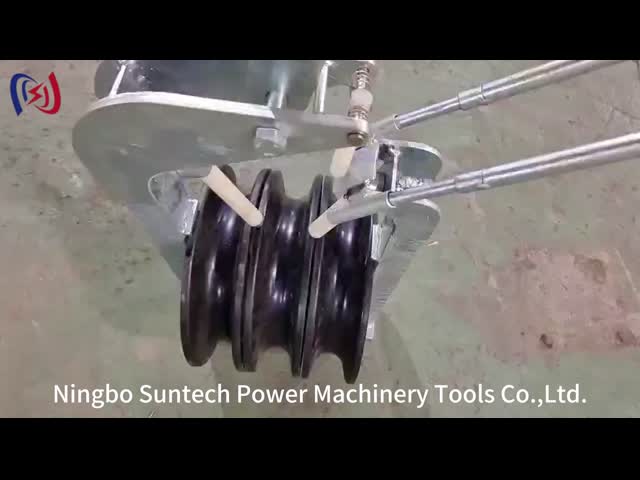

660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing.

The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.

Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be

supplied on request.The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

660MM Overhead Transmission Line Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10121 SHD660 400-500 20 30 Aluminum alloy
10124 SHDN660 400-500 20 24 MC Nylon
10122 SHS660 400-500 40 106 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10125 SHSLN660 400-500 40 92
10127 SHSQN660 400-500 40 76 MC Nylon
10123 SHW660 400-500 60 150 Aluminum Alloy lined with neoprene
10126 SHWLN660 400-500 60 120
10128 SHWQN660 400-500 60 110 MC Nylon
10129 SHQZ660 400-500 80 260 Central steel, conductor sheave nylon or aluminum alloy
10130 SHQ660A 400-500 80

190

Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line

Bundled Aluminum Conductor Pulley Block For 220KV Transmission Line

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
