HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy
Specifications
Brand Name :
Haurem
Model Number :
HRHS42
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
high speed and low torque
Channel :
1~14
Contact Resistance :
≤5mΩ ( 50rpm )
Electrical Noise :
Max 10mΩ
Feature :
high speed High prcision
Operating Humidity :
60%RH or higher
Rotating Speed :
22000RPM
Series :
High speed slip ring
Temperature :
-40℃~+80℃
Work Humidity :
0~85%RH
Voltage Rating :
440VAC/VDC
Description

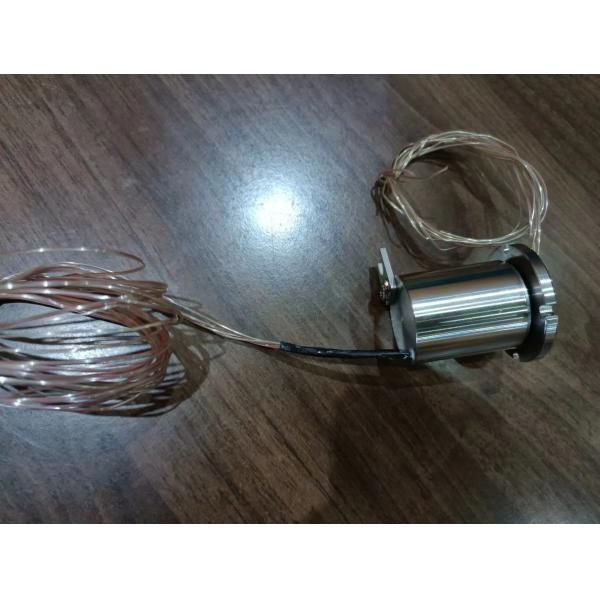

HRHS42 High Speed Slip Ring for Superior Wear Resistance and Stability use for Wind Energy

High speed slip ring manufactured by Haurem supports 1~24 circuit power(0~20A) or each kind of signal.

HRHS42 series high speed slip ring is specially designed for high speed equipment, Higher rotational speed can be up to 20000Rpm.

Has high product accuracy with low cost, high stability and reliability, can transmit signal and power together, low dynamic resistance fluctuation.

Import platinum and gold as contact material which have superior wear resistance and stability.

Number of Circuits 2 circuits(power)+8 circuits(signal) Outer diameter 42mm
Voltage Rating 440VAC(power),24VDC(signal) Operating Speed 0~22000RPM
Current 2 circuits@ 20A, 8 circuits signal Torque 0.5N.m
Housing material Stainless steel Contact material Precious Metals:gold-gold
Working life >100 million rotation(According to the working environment) Dynamic resistance fluctuation <10mΩ(at 50rpm)
Electricity noise <3mΩ Lead Type UL @Awg22,Awg17
Pressure trength 1000VDC@50Hz Lead Size 300mm
Insulation resistance 1000MΩ@600VDC Protection Class IP51~68
Working Temperature -40°C to 80°C Working Humidity 10% to 85% RH

HRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind EnergyHRHS42 High Speed Slip Ring Superior Wear Resistance And Stability For Wind Energy

Our Haurem slip rings are widely adopted in Wind energy, Aerospace,Industrial automation,Intelligent robots,Engineering machinery,Measurement instruments,Medial equipments,Packaging machinery,Security etc. fields. They are specialized in continuous transmission for medium and pressure of power, signal,pneumatic,hydraulic under 360° unrestrained rotation to make sure the whole system will be steady rotating without any damage to the prone wires.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
