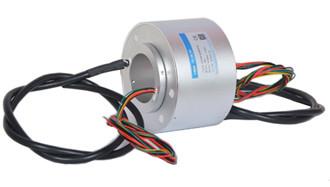

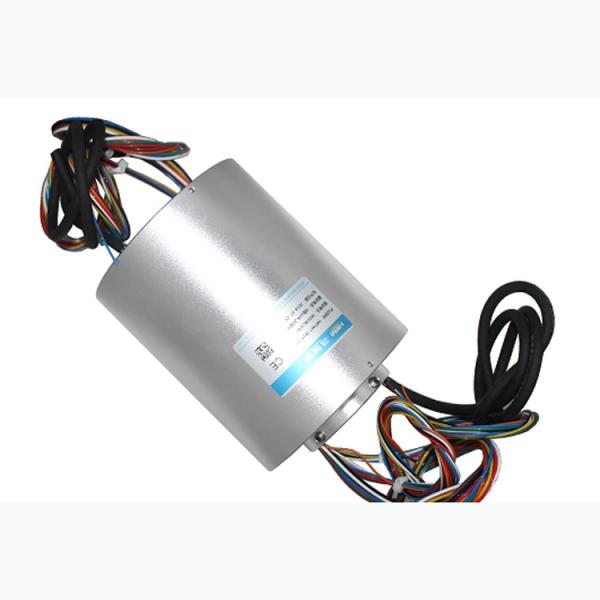

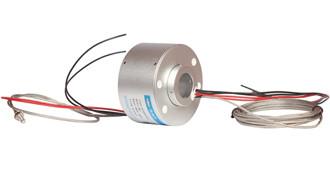

Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments
Specifications
Brand Name :
Haurem
Model Number :
HRST series
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
Thermocouple signal or power
Channel :
1~48
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Operating Humidity :
60%RH or higher
Rotating Speed :
600RPM
Temperature :
-40℃~+80℃
Voltage Rating :
400VAC/VDC
High light :
Typical Application:Packaging machines, Medical equipments, Chemical equipments etc.
Description

Thermocouple Signal Slip Ring

Specially designed for thermocouple signal, low noise, low voltage transfer, can combine signal and power transmission. No signal distortion, high recognition rate.

Electrical Spec. 　 Options
Rating voltage 380VAC Flange for set up
Rating current 5A,10A,15A/Ring The wire exit direction,length is optional
Insulation resistance 1000MΩ@500VDC Can combine more circuits:1-148Ring
Dielectric strength 600VDC@50HZ Higher voltage and current capacity
Electrical noise 10mΩ@6VDC,50mA,5Rpm Higher rotational seed:1000Rpm,2500Rpm,5000Rpm
Mechanical Spec Environment
Speed 600Rpm Working temperature -40℃~+80℃
Torque 60N.cm Mechanical vibration MIL-SID-810E
Protection class IP54--IP65 Humidity 10% to 90% RH
Contact material Precious Metal Materials Lead Free,RoHS compliant
Lead Wire 12 color Teflon CE Certified YES

Optional

◆ Lead wire length;
◆ Flange for set up;
◆ Various radial exits are available;
◆ Can combine more circuits:1-72 rings;
◆ High protection class: IP65 is optional;
◆ Can custom high temperature up to 280 degrees;
◆ Aviation connector is optional;
◆ Screen cable;
◆ Transimission frequency is up to 500MHz;
◆ Can combine high speed data in same slip ring under Ethernet,USB and Profibus ;
◆ Available for Thermocouple signal ;
◆ Gas pressure and/or fluid pressure hyrid ;
◆ Signal,coaxial cable and/or power wire mixed;
◆ High voltage, large current(1000A,10000V);
◆ Military rank.

Multi Channel Thermocouple Slip Ring 600RPM For Medical Equipments

As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.
