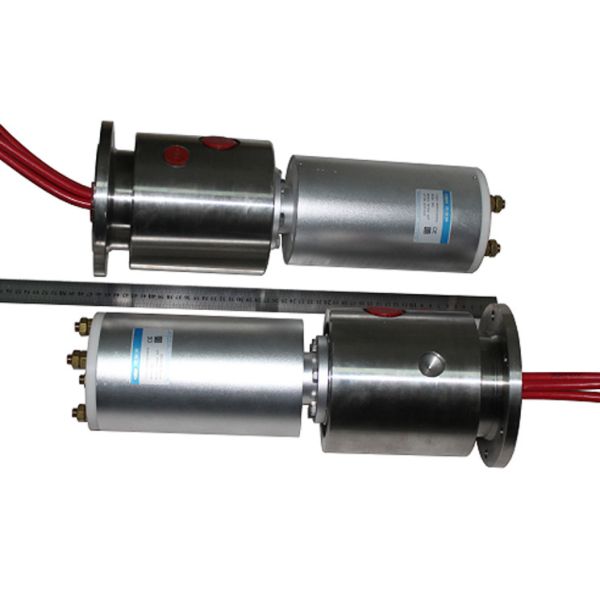

50MP Hybrid Slip Ring Fluid Midea 1-12 Rings For Filling Equipment
50MP Hybrid Slip Ring Fluid Midea 1-12 Rings For Filling Equipment
50MP Hybrid Slip Ring Fluid Midea 1-12 Rings For Filling Equipment
50MP Hybrid Slip Ring Fluid Midea 1-12 Rings For Filling Equipment
Specifications
Brand Name :
Haurem
Model Number :
HRCM120
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
Can combine hyrid transimission of power,liquid or/and gas etc. media;
Channel :
1~12
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Feature :
precious metals and multi contact points in each circuit
Operating Humidity :
60%RH or higher
Rotating Speed :
300RPM
Series :
Conductive Slip Ring
Temperature :
-40℃~+80℃
Voltage Rating :
380VAC/VDC
Description

Haurem company's HRCM conductive slip ring is specially designed for rotary equipments to transfer power,singal and/or other by fluid medium. Available for 1,2,4,8 passage for gas, oil or/and water, combine 1-48 electrical passage and the passage size can be modified or specialized by customers, the passage type can be solid or through bore as well.

Electrical Spec. 　 Options
Rating voltage 380VAC Flange for set up
Rating current 5A,10A,15A/Ring The wire exit direction,length is optional
Insulation resistance 1000MΩ@500VDC Can combine more circuits:1-126Ring
Dielectric strength 600VDC@50HZ Higher voltage and current capacity
Electrical noise 10mΩ@6VDC,50mA,5Rpm Higher rotational seed:1000Rpm,2500Rpm,5000Rpm
Mechanical Spec Environment
Speed 300Rpm Working temperature -40℃~+80℃
Torque 60N.cm Mechanical vibration MIL-SID-810E
Protection class IP54-IP68 Humidity 10% to 90% RH
Contact material Precious Metal Materials Lead Free,RoHS compliant
Lead Wire 12 color CE Certified YES
Life 50 millions revolution The life of slip ring is up to revolutions, operation environment and temperature etc.

50MP Hybrid Slip Ring Fluid Midea 1-12 Rings For Filling Equipment

Hunan Haurem Technology Co., Ltd. is the earliest professional manufacturer of precision slip rings with core high- technology in the world, we are dedicated to engineering, manufacturing and testing our products completely in-house to assure the highest in quality and performance to meet customers' multi requirements. We have more than sixty types of patented products filled the gap in our domestic market, we also have more than ten thousands of slip ring solutions, and established extensive and long-term cooperation with many domestic research institutes since 2001. With the ideal function, distinguished appearance and competitive price, HRM slip ring have been enjoyed the warm popularity in over 50 countries.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
