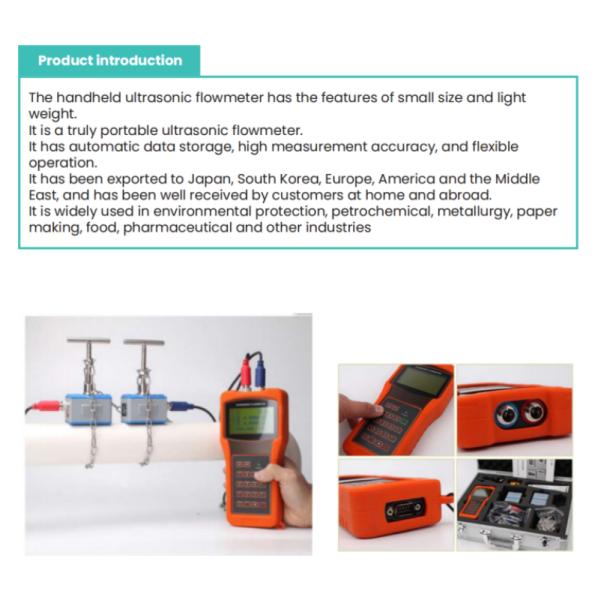

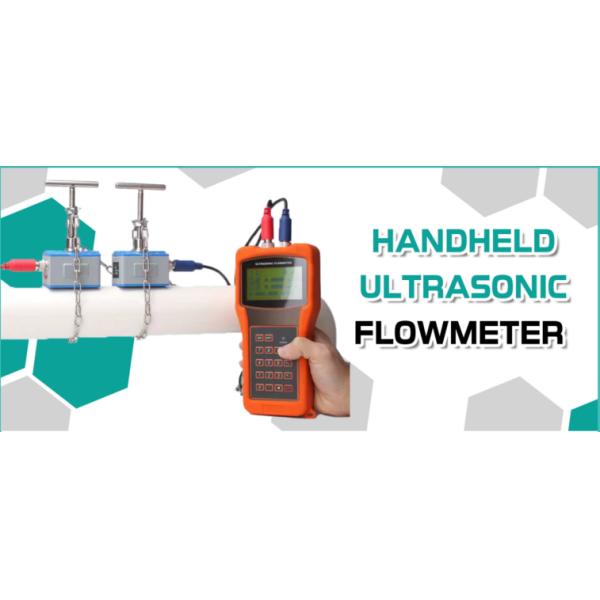

Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
Specifications
warranty :
1 years
customized support :
OEM, ODM, OBM, Software reengineering
Place of Origin :
Henan, China
Brand Name :
KFMH
Model Number :
MHUF
type :
Variable Area Water Flowmeters, Ultrasonic meters, Ultrasonic flow meters, Digital
Product Name :
Handheld Ultrasonic Water Flow Meter Liquid Ultrasonic Flowmeter
Media :
Liquid
Accuracy :
1.0%
Output Signal :
4-20mA/Pulse/RS485/RS232
Connection :
Clamp-on
Power Supply :
220VAC/24VDC
Flow Transducer :
Standard/High Temp.
Temperature :
-30℃ ~ +90℃ / -30℃ ~ +160℃
Transducer Cord Length :
Standard: 5m x 2
Description

+

Product Description

Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter

Product Name Handheld Ultrasonic Flowmeter
Linearity 0.005
Repeatability 0.002
Accuracy +1%R, flow velocity large than 0.2m/s
Diameter DNI5 - DN6000 mm, velocity +32 m/s
Medium Water, seawater, industrial sewage, acid and alkali solution, alcoholbeer, etc
Power Supply 3 AAA built-in Ni-H batteries; 100V-240V AC for the charger
Power Consumption 6W
Communication RS232-C baud-rate: from 75 to 57600; Support MODBUS protocol, HART
(optional)
Data Logger Built-in data logger can store over 2000 lines of data
Totalizer 7-digit totals for net, positive and negative flow respectively

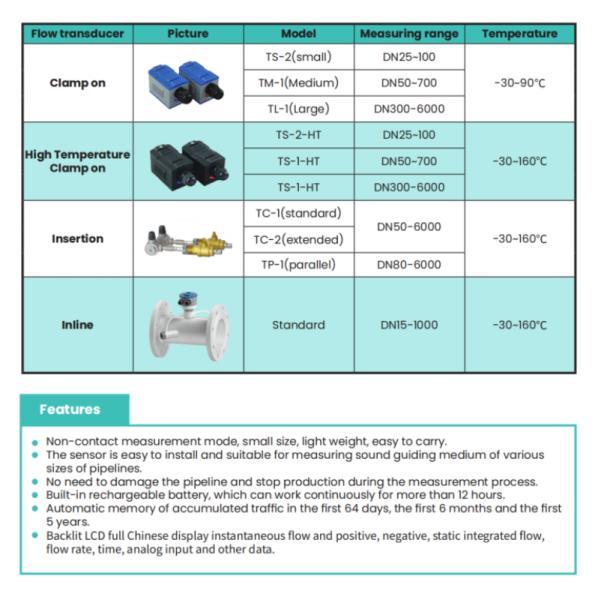

Transducer Cord
Length		 Standard 5m x 2; Optional 10m x1

Clamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic FlowmeterClamp-On Handheld Ultrasonic Sensor Water Sewage Flow Meter Liquid Ultrasonic Flowmeter
