65mm Diameter Low Power PCB Slip Ring 5V 2 Channels 1A For Precision Rotating Parts
65mm Diameter Low Power PCB Slip Ring 5V 2 Channels 1A For Precision Rotating Parts
Specifications
Brand Name :
GuRen
Model Number :
PCB6580-2P01
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Aperture size :
65mm
Outer diameter :
80mm
Electrical pathways :
2-way 1A
Rotation speed :
0-100rpm
Thickness :
6mm
Operating voltage :
5V
Description
The PCB6580-2P01 low-power PCB slip ring is designed specifically for low-voltage precision equipment. It can stably transmit signals and power in a narrow space and is suitable for a variety of small precision rotating components.
PCB6580-2P01 low-power PCB slip ring Features

1. Operating voltage: 5V, suitable for voltage-sensitive microelectronic devices.
2. Aperture: 65mm, suitable for small and medium-sized precision rotary axes.
3. Operating temperature range: -30°C to +80°C, with excellent high and low temperature resistance.
4. Supports dual-channel 1A current transmission, suitable for low-power devices.
5. Insulation withstand voltage: 100VAC@50Hz, 60s, electrical safety meets the requirements of precision equipment.
6. Wire size: AWG26, suitable for low-current transmission.

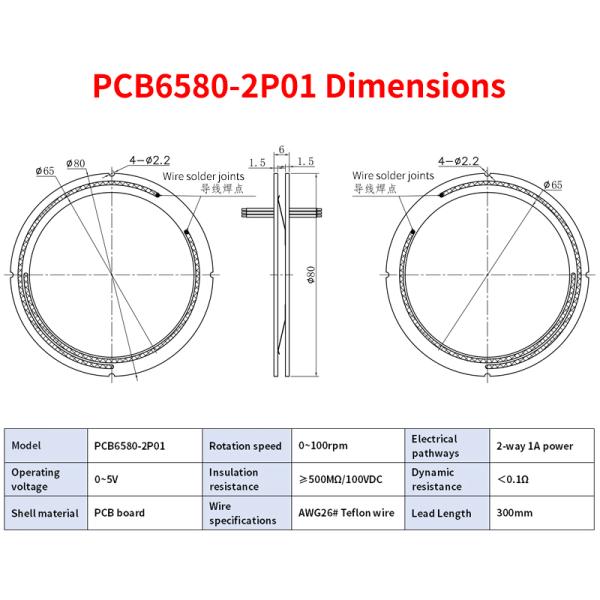

PCB6580-2P01 low-power PCB slip ring Technical Specifications
Mechanical Specifications Electrical Specifications
Speed 100rpm Voltage 5VDC/VDC
Working life 3 million rpm Insulation resistance ≥500MΩ/100VDC
Operating humidity 0～85%RH Wire Specifications Silicone wire
Operating temperature -30°C to 80°C Dielectric strength 100VAC@50Hz,60S
Contact material Precious Metals Dynamic resistance change <0.1Ω
Shell material Aluminum Alloy Thickness 6mm
Rotation torque 0.01N.m+0.03N.m/6 channels Number of routes 2-way1A
Protection level IP40

PCB6580-2P01 low-power PCB slip ring Applications
Designed for equipment with limited installation space, including:
  • Security monitoring pan/tilt systems
  • Industrial robot joints
  • Automated rotary stations
  • Test and measurement equipment
