50mm Center Hole High Speed Slip Ring 5000rpm Wear Resistant Gold Plated
50mm Center Hole High Speed Slip Ring 5000rpm Wear Resistant Gold Plated
Specifications
Brand Name :
GuRen
Model Number :
GS50119 series
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
4 weeks ARO
Packaging Details :
Standard/On Request
Speed :
5000rpm
Rated voltage :
0-380VAC/VDC
Inner diameter :
5cm
Outer diameter :
11.9cm
Installation :
Anti-rotation plate installation
Temperature :
-30℃～+80℃
Description

The GS50119 series high-speed 360-degree rotating conductive ring has a design speed of 5000 rpm. Its metal housing significantly increases its load-bearing capacity, supporting multiple transmission lines and meeting the rotating power supply needs of large equipment.


GS50119 series high-speed 360-degree rotating conductive ring product features

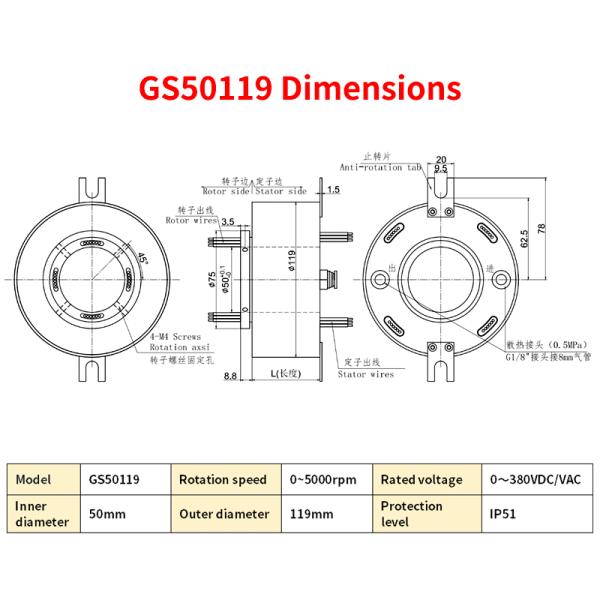

1. Featuring a large 50mm center hole and 119mm outer diameter, the metal housing is specifically designed for use in large rotating equipment requiring passage through extra-thick shafts.
2. A combination of alloy brushes and gold-plated rings ensures heavy-duty operation at speeds up to 5000rpm, reducing friction and improving durability.
3. It offers 2-36 power and signal lines, supporting extreme configurations such as 30 signal lines or 36 power lines, meeting the needs of large-scale equipment.
4. 800VCA insulation strength and ≥1000MΩ insulation resistance, combined with heat dissipation connectors, ensure safe operation in high-voltage environments.


GS50119 series high-speed 360-degree rotating conductive ring parameters


Mechanical Specifications

Electrical Specifications

Speed

5000rpm(The maximum customizable speed is 12000)

Voltage

0-380VAC/VDC

Operating temperature

-30℃～+80℃

Insulation resistance

≥1000MΩ/500VDC

Operating humidity

0～85%RH

Wire Specifications

Teflon wire

Contact material

Imported gold-plated ring

Dielectric strength

300VAC@50Hz,60S

Shell material

Aluminum Alloy

Dynamic resistance change value

<0.01Ω

Rotation torque

0.05N.m+0.02N.m/6 channels

Protection level

IP51


GS50119 series high-speed 360-degree rotating conductive ring applications

It is mainly used for spindles of high-speed machining centers, centrifugal separation equipment, aircraft engine testing, high-end medical equipment, and specific national defense and scientific research equipment.
