Specifications
Brand Name :
GUREN
Model Number :
GK0925-8PS-E0081-1
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer Diameter :
25mm
Inner Diameter :
9mm
Contact material :
Gold-Gold
Single channel current :
2A
Circuit :
8-way
Speed :
0-150rpm
Description

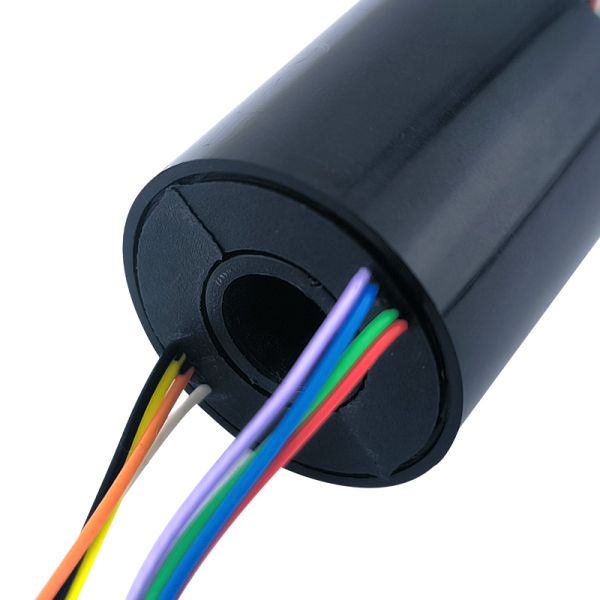

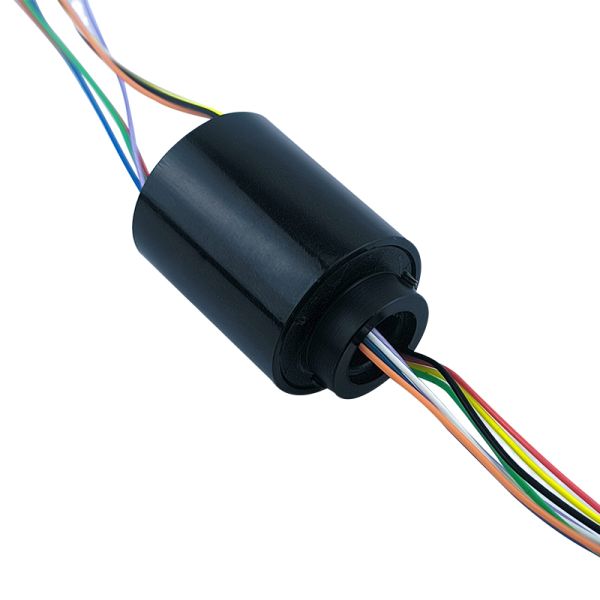

This 8-channel 2A miniature hollow signal slip ring features a PBT engineering plastic shell and a 9mm hollow structure, with an outer diameter of only 25mm. It utilizes gold-to-gold contact material and AWG26# Teflon wire to ensure stable and reliable signal and power transmission at 220V operating voltage and 150RPM speed.
signal slip ring Key Features

Ultra-compact hollow design: A 25mm outer diameter combined with a 9mm central hole provides an ideal rotary connection solution for miniature devices.

Gold-to-gold contact protection: Utilizing gold-to-gold contact materials ensures low contact resistance and long service life.

Superior electrical configuration: AWG26# Teflon wire is high-temperature resistant and corrosion-resistant, ensuring signal transmission integrity.

Insulated and safe housing: The PBT engineering plastic housing provides excellent electrical insulation and mechanical strength.

signal slip ring Performance Parameters
Parameter Value
Dielectric strength 200VCA@50Hz,60s
Insulation resistance ≥300MΩ/200VDC
Dynamic resistance change value ＜0.015Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 200mm; stator 200mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm
signal slip ring Product Dimensions
8-channel 2A Hollow Signal Slip Ring with 9mm Center Hole for Miniature Automation Equipment
signal slip ring Applications

Miniature automation equipment: small robotic arms, rotary connections for precision instruments.

Security monitoring equipment: signal transmission for miniature pan-tilt units and dome cameras.

Medical equipment: power supply for small rotating testing instruments.

Instruments and meters: rotary connection parts for testing and measurement equipment.


signal slip ring Frequently Asked Questions

Q1: What types of cables can pass through the 9mm center bore?

A: The 9mm center bore is suitable for sensor cables, fiber optic cables, thin air tubes, etc., providing a convenient passage for internal wiring.

Q2: What are the advantages of PBT material compared to a metal casing?

A: PBT engineering plastic has excellent electrical insulation, heat resistance, and dimensional stability, while effectively reducing overall weight.

Q3: Does the product support higher speeds?

A: The standard version of this product is optimized for 150 RPM. For higher speeds, we can provide customized solutions. Please contact our technical support.
