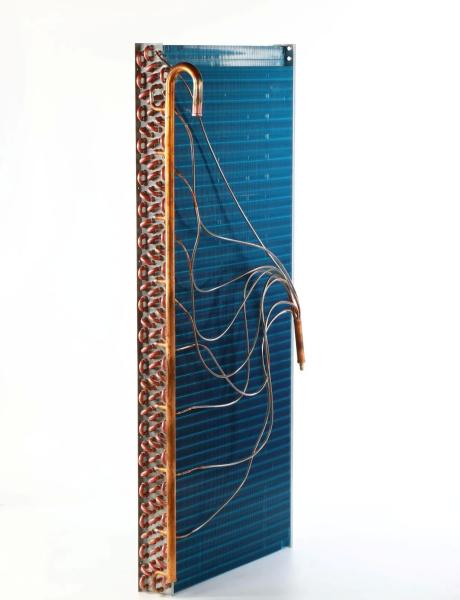

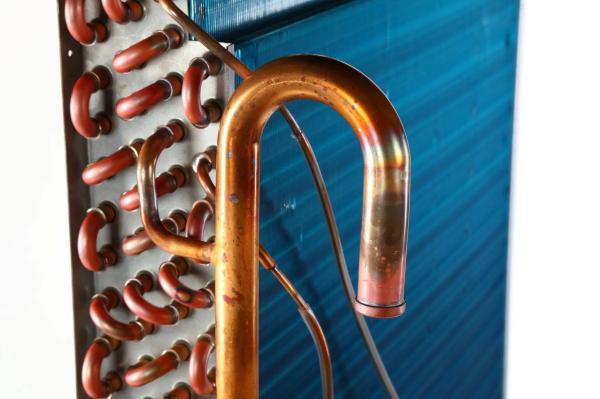

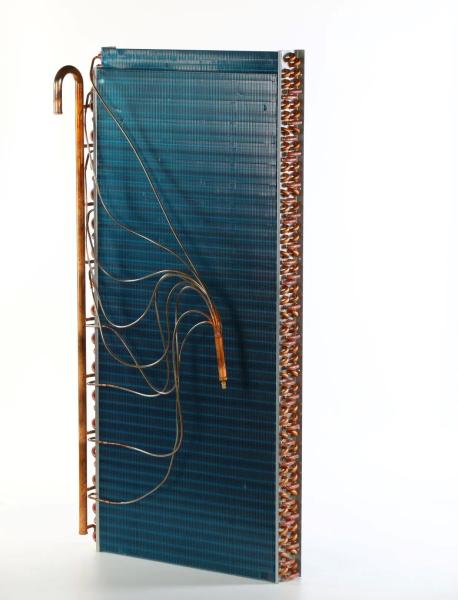

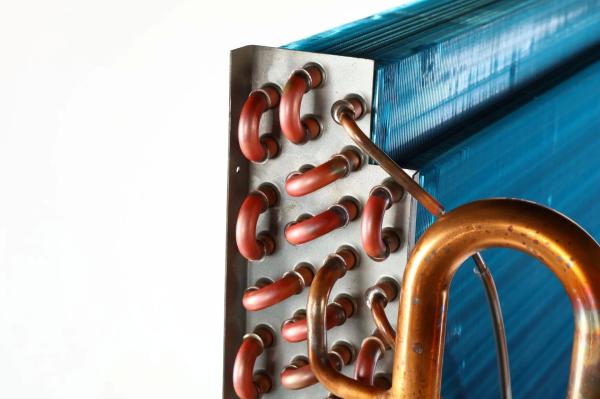

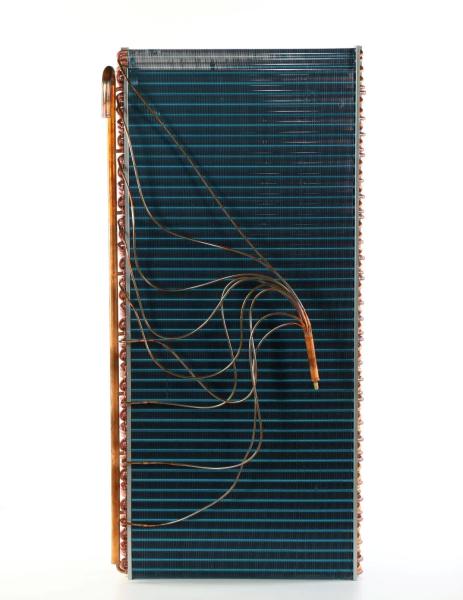

Customized Copper Evaporator Coil Heat Exchanger with 1.4~2.0mm Fin Space and 21*12.7mm Hole Pitch

Specifications

MOQ :

200

Price :

Material :

Copper, aluminum, galvanized plate

Copper pipe diameter :

Φ7, Φ7.94, Φ9.52

Copper pipe type :

Inner grooved or smooth tube

Aluminum foil type :

Hydrophilic or bare

Fin type :

Louver fin, flat fin, corrugated fin

Fin pitch :

Ø7 1.1~1.8mm, Ø7.94 1.4~2.0mm, Ø9.52 1.4~2.3mm

Hole pitch :

20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm

Tube diameter :

Φ7, Φ9.52, Φ12.7, Φ15.88

Distance of hole/row :

21*12.7mm, 25.4*22mm, 31.75*27.5mm, 38.1*33mm

Fin style options :

Louvered fin, Plain fin, Sine wave fin, V ripple fin, Corrugated fin

Fin space range :

1.3~6.35mm

Production capacity :

10000 Pieces/Year

Heat exchanger principle :

Regenerative Heat Exchanger

Style :

Steel Type

Material composition :

Stainless Steel

Description

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5
