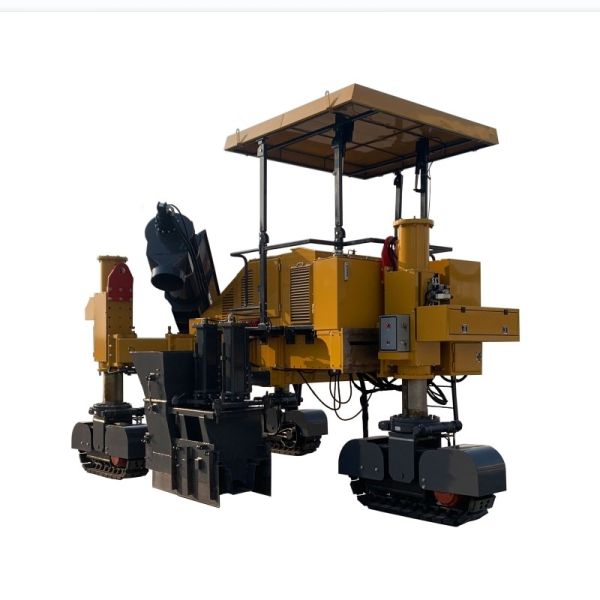

Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Concrete Slipform Paver for Curb & Gutter Construction
Specifications
Brand Name :
SIMING
Model Number :
SMC-5500
Certification :
ISO9001/CE
Place of Origin :
Jiangsu, China
MOQ :
1 unit
Payment Terms :
T/T,
Supply Ability :
1 unit a month
Delivery Time :
30-45 work days
Packaging Details :
Container shipping
Max Paving Width :
3m
Max Paving Height :
1800 mm
Engine Power :
118 kW
Model :
customized
Paving Speed :
0-10 m/min
Travel Speed :
0-2 km/h
Fuel Tank Capacity :
230 L
Overall Dimensions :
7000 x 2250 x 2860 mm
Operating Weight :
15,000 kg
Condition :
New
Grade Control System :
Automatic
Description

The SMC-5500 Concrete Slipform Paver is an ideal solution for curb and gutter construction, offering high precision, stability, and continuous paving performance. Designed for municipal infrastructure projects, this slipform paving machine ensures accurate shaping and smooth finishing of concrete curbs, gutters, and edge structures.

Equipped with a fully hydraulic drive system and advanced electronic control, the SMC-5500 slipform concrete paver maintains consistent paving quality even on complex job sites. The automatic steering and leveling system allows precise control of line, grade, and slope, ensuring uniform curb profiles and clean edges. With customizable molds, this concrete slipform paver can adapt to various curb and gutter specifications required by different municipalities.

The powerful vibration compaction system ensures dense concrete consolidation, reducing voids and improving long-term durability. These features make the SMC-5500 slipform paver a reliable choice for high-standard curb construction.

Common applications include urban road curbs, drainage gutters, sidewalk edges, and median dividers. The machine’s ability to complete multiple processes—spreading, vibration, forming, and finishing—in one pass significantly improves construction efficiency and reduces labor dependency.

As a professional Concrete Slipform Paver manufacturer, we provide flexible configuration options to meet local design standards, helping contractors achieve consistent quality and faster project delivery.

Technical Parameters:

No.

Project

Unit

Parameter

Basic performance parameters

1

Max paving width

cm

300

2

Max paving height

cm

180

3

Work speed

m/min

0～10

4

Driving speed

km/h

0～2

5

Theoretical productivity

m3/h

90

6

hopper capacity

m3

2～10(Depends on the width of the mold)

7

Climbing ability

％

≥20

8

Diesel tank

L

230+120(optional)

9

Water tank

L

500

10

Hydraulic oil tank

L

300

Engine performance parameters

11

Engine model

/

Shangchai SC4H160.5G4

12

Engine power

kW r/min

118Kw/2200

13

Engine type

/

4-cylinder water-cooled

14

Emission standard

/

stage 4(stage 3 is optional)

Size parameters

15


Dimensions (L x W x H)

mm

7000×3550×3600

16


Transport (L x W x H)

mm

7000×2250×2860

17

Track (L x W x H)

cm

163x30x63

Weight parameters of the whole machine

18

Weight

kg

15000

Homework performance parameters - feeding

22

Spiral device speed

r/min

0～70

23

Spiral diameter

cm

42

24

Belt device speed

r/min

0～100

Homework Performance Parameters - Mold

25

Number of molds

pcs

1

26

Construction form

/

Left side paving(optional)

Performance parameters for homework - vibration compaction

28

Vibration rod frequency

Hz

0～167

32

Number of vibrator

pcs

5

Homework Performance Parameters - Cleaning

33

Cleaning form

/

High pressure cleaning

34

Cleaning pressure

Mpa

7

Hydraulic system

35

Quantity of hydraulic pumps

pcs

2

36

Hydraulic oil cooling

/

Large size radiator, forced air cooling

37

Maximum filtering accuracy

/

10μm

Construction case:

Concrete Slipform Paver for Curb & Gutter Construction Concrete Slipform Paver for Curb & Gutter ConstructionConcrete Slipform Paver for Curb & Gutter Construction Concrete Slipform Paver for Curb & Gutter ConstructionConcrete Slipform Paver for Curb & Gutter Construction Concrete Slipform Paver for Curb & Gutter Construction
