Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Specifications
Brand Name :
SIMING
Model Number :
SMC-6800
Certification :
ISO9001/CE
Place of Origin :
Jiangsu, China
MOQ :
1 unit
Payment Terms :
T/T
Delivery Time :
30-45 days
Packaging Details :
shipping
Diesel Tank Volume :
370 L
Travel Speed :
0-25 m/min
Paving Width :
0-8500 mm
Condition :
New
Engine Power :
194 kW@2200rpm
Paving Thickness :
0-480 mm
Style :
Track
Leveling Function :
High-precision automatic
Climbing Ability :
20%
Core Components :
Engine, hydraulic pump, vibrating spear
Water Tank :
400L (standard) + 140L*4 (optional)
Control System :
High-performance sensors
Flatness :
3mm/3m
Description
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Stable SMC-6800 Slipform Paving Machine
The SMC-6800 Concrete Slipform Paver is engineered for durability and efficiency in agricultural irrigation and rural road construction projects. This robust machine delivers reliable performance in remote locations with challenging terrain conditions.
Featuring a powerful hydraulic system and four-track travel structure, this slipform paver maintains operational stability on soft soils and uneven surfaces. The adjustable paving width and thickness capabilities enable construction of diverse concrete structures including irrigation channels, farm roads, and access pathways.
The high-performance vibration system ensures dense, uniform concrete compaction, enhancing resistance to erosion and cracking. Integrated operation facilitates continuous paving, reducing construction timelines while maintaining consistent quality across extensive irrigation routes.
Primary Applications
  • Agricultural water channels and irrigation systems
  • Rural access roads and farm pathways
  • Village infrastructure development
  • Drainage ditch construction
With straightforward operation and minimal maintenance requirements, the SMC-6800 is ideally suited for large-scale agricultural development initiatives.
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Technical Specifications
Parameter Specification
Paving Width 3500-8500 mm
Paving Thickness 0-480 mm
Smoothness ±3 (mm/3m)
Paving Speed 0-7.5 m/min
Travel Speed 0-1.5 km/h
Vibrating Circuits 24
Vibrating Frequency 0-167 Hz
Diesel Tank Capacity 370 L
Water Tank Capacity 400 L (standard) + 140L*4 (optional)
Total Length 13740/9640 mm (transportation/work)
Width 2800/10150 mm (transportation/work)
Height 3280/4300 mm (transportation/work)
Engine Model QSB6.7-C260
Power Output 194 Kw@2200rpm
Emission Standard Euro 3/4

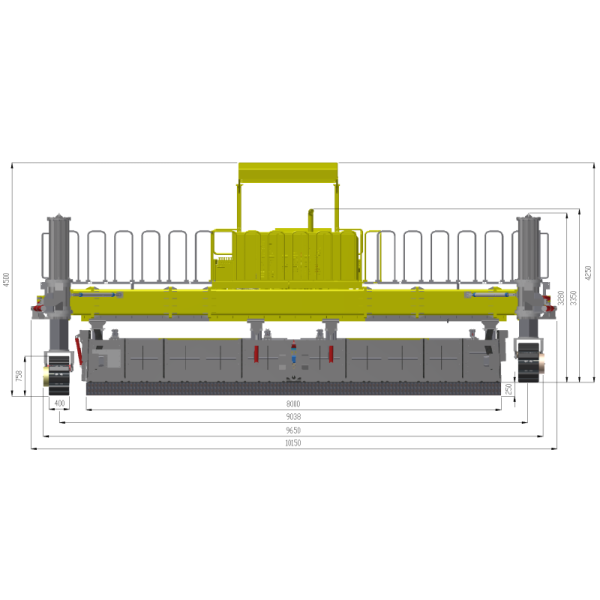

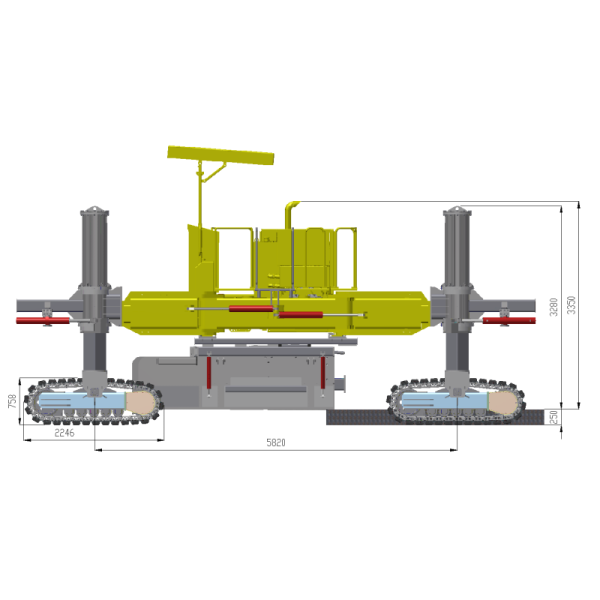

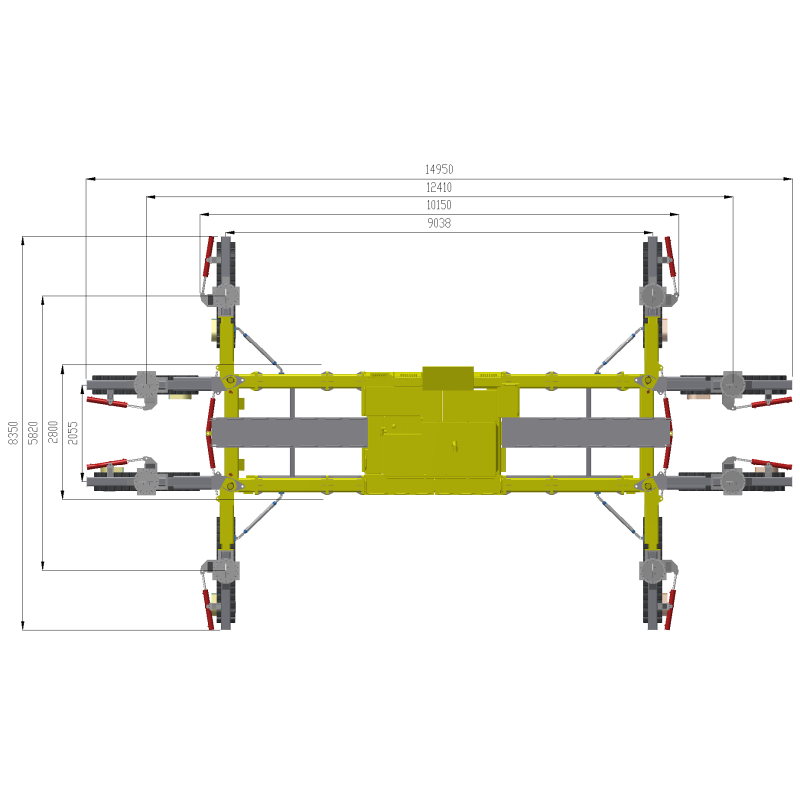

Product Dimensions
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
Project Case Studies
Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects Concrete Slipform Paver for Agricultural Irrigation & Rural Road Projects
As an experienced Concrete Slipform Paver supplier, we deliver cost-effective solutions specifically tailored to agricultural and rural infrastructure requirements.
