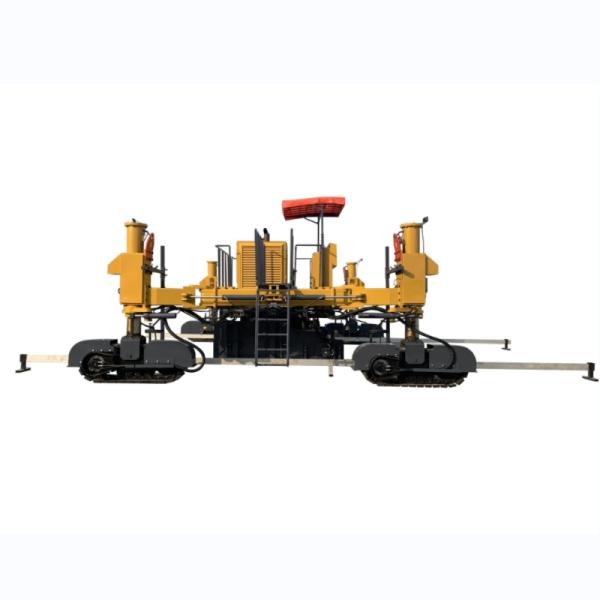

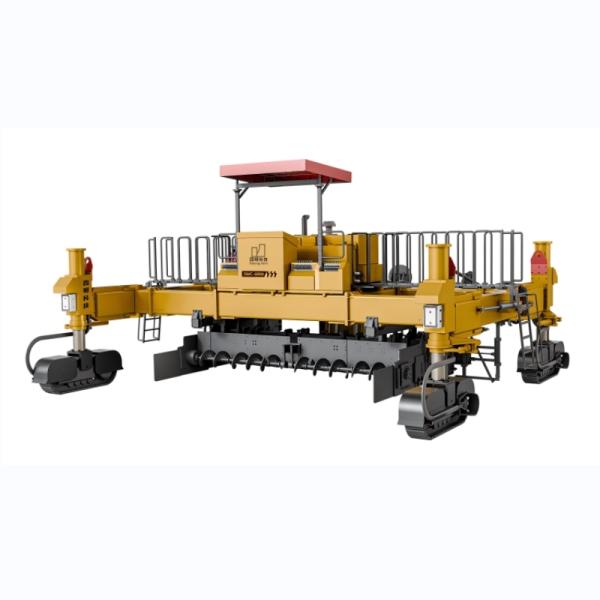

SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Siming
MOQ :
1
Price :
$389,800
Weight :
30000 kg
Paving thickness :
0-450mm
Paving width :
3500-8000mm
Driving Speed :
0-1.5 km/h
Paving Speed :
0-7.5 m/min
Flatness :
±3 mm/3m
Vibrator brand :
WYCO
Vibrator interface :
16
Vibrator frequency :
0-167 Hz
Fuel tank :
370L
Water tank :
400L (standard) + 140L*4 (optional)
Engine :
Shangchai SC7H240G4
Rate power :
177Kw/2200rpm
Emission standard :
Phase Ⅳ (Phase Ⅲ optional)
Transport size :
131740*2800*3220 mm
Description
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine

Application conditions:

SMC-6800 cement concrete slip form paver is a multi-purpose cement concrete construction equipment independently developed by our
company. It is widely used in the construction fields of various grades of highways, high-speed railway subgrade, airport and rail
transit concrete base. It replaces the traditional process and greatly improves the construction quality and efficiency of the
above cement concrete structures.
The machine has large power reserve, full electronic control, full hydraulic power drive, four crawler walking, and is equipped
with automatic steering and automatic leveling control system to complete the process flow of vibration, paving, forming and
plastering of cement concrete structures at one time.
Paving width
3500-8000 mm
Paving height
0-450 mm
Flatness
±3 mm/3m
Paving Speed
0-7.5 m/min
Driving speed
0-1.5 km/h
Vibrator brand
WYCO
Vibrator interface
16
Vibrator frequency
0-167 Hz
Frul tank
370L
Water tank
400L（standard）+140L*4(optional)
Engine
Shangchai SC7H240G4
Rate power
177Kw/2200rpm
Emission standard
Phase Ⅳ(Phase Ⅲ optional)
Feed system
Spiral
Weight
30 t
Transport size(L*W*H)
131740*2800*3220 mm
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
Functional features:
Power System
1. Equipped with a water-cooled engine,powerfuland reliable in operation.
2. Equipped with a parallel three in one large-sizedradiator,forced air cooling,and significant heat dissipation effect.

Hydraulic System
1. Four pump load sense hydraulic system from well-known international brands.
2. The inlet and outlet ports of the pump are equipped with high quality filters.


Electronic Control system
1. Color graphic and text display on the main console with fault diagnosis,working status,and alarm.
2. The steering,grade,and slope of slipform paver are electronic automatic control, and the sensors and controllers communicate
by CAN-bus.
3. Configure four longitudinal slope sensors and two steering sensors.

Traveling Device
1.Four-track hydraulic drive,high traction.
2. Load sense hydraulic drive with low system heating.


SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
Vibration Compaction System
1.High quality hydraulic vibrator with square head shell.
2.Equipped with 16 standard vibration circuits(additional 6 circuits option),with stepless frequency adjustable from 0 to167Hz.
concrete spreading system
1. Use a dump truck to directly unload the concrete in front of the paver,and spread the irregular concrete pile with an
excavator.
2. Two hydraulic driven spreading augers with independent control and infinitely adjustable revolution.

Water System
1. Type: High pressure washer with water gun.
2. One Standard water tank capacity is 400L,four 130L tanks option.

Tamper Bar Device
1. Hydraulic driven stepless frequency regulation.
2. Push down the surface coarse aggregate to create a surface slurry layer.
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
SMC-6800 Slipform Paver for Airport Runway with HighPower Engine
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
