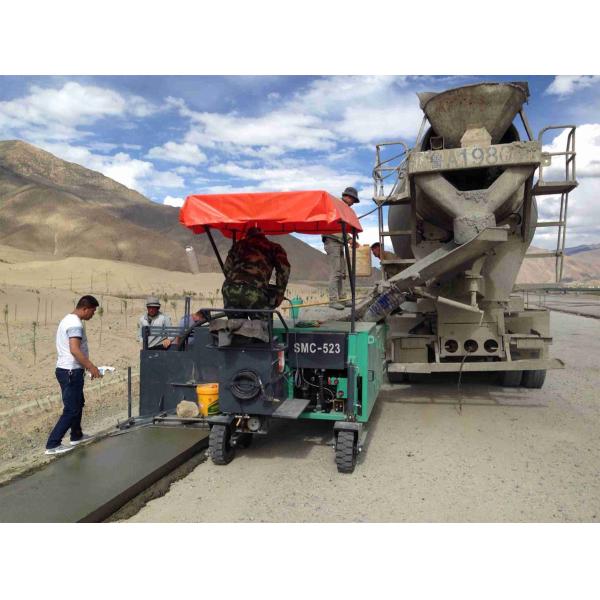

SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Siming
MOQ :
1
Price :
$39,000
Weight :
2400 kg
Engine Model :
Yanmar4TNV88/Quanjiao QC490G
Hydraulic Pump :
American Sauer variable displacement pump KRR038
Paving Width :
0-1250mm
Paving Height :
0-500mm
Transport Size :
length 352× width 150× height 130 cm
Host Weight :
3100kg
Paving Size :
curb width 125× height 50 cm
Paving Speed :
0~12m/min
Driving Speed :
0~30m/min
Core Components :
Engine, hydraulic pump, vibrating spear
Fully Hydraulic :
Yes
Single Track Drive :
Hydraulic
Automatic Leveling :
High-precision
Built-in Vibration :
Yes
Certification :
ISO9001/CE
Description
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm


Product description：

Application range
Suitable for the construction of highways and municipal roads, including curbs, slope protection, and drainage ditches.
Three boxes volume

Paving width
0-1250mm
Paving height
0-500mm
Engine model
Yanma 4TNV88/ QC490G
Hydraulic pump
USA Sa variable pump KRR038
Transport size (cm)
length 352× width 150× height 130
Host weight
3100kg
Paving size (cm)
curb width 125× height 50
Paving speed
0~12m/min
Driving speed
0~30m/min
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm



Features
1. The human-machine interface is friendly and intuitive.
2. This machine meets the requirements of high efficiency and environmental protection, with sufficient power surplus to cope
with various harsh working conditions.





3. Single track hydraulic drive, smooth walking, good adhesion.
4. Equipped with high-precision automatic leveling and automatic steering functions, it can accurately pave according to specified elevation and line type.


SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm






5. Use a built-in vibration rod to ensure smooth surface and dense interior of the concrete after paving and forming.
6. Equipped with a complete set of high-pressure water flushing devices and various random tools for easy field work and
maintenance of the machine

SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
SMC-523 Hydraulic Slipform Paver for Highway Curb Paving 125x50cm
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
