Specifications
Brand Name :
SIMING
Model Number :
SMC-6500
Certification :
ISO-9001/CE
Place of Origin :
China
MOQ :
1 psc
Payment Terms :
L/C, T/T
Delivery Time :
30-45 days
Packaging Details :
Container
Paving Width :
2500-4500 mm
Warranty :
1 Year
Paving Depth :
0-15 m/min
Travel Speed :
0-1.8 km/h
Total Weight :
19.5 t
Vibration Frequency :
0-167 Hz
Fuel Capacity :
320L
Water tank capacity :
550L
Description

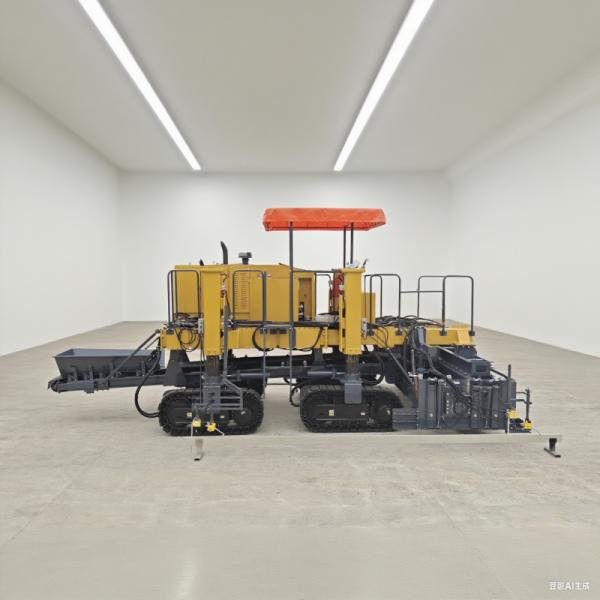

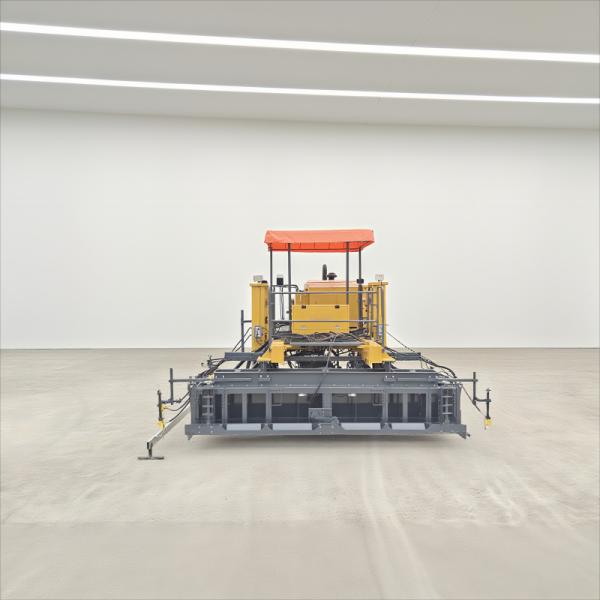

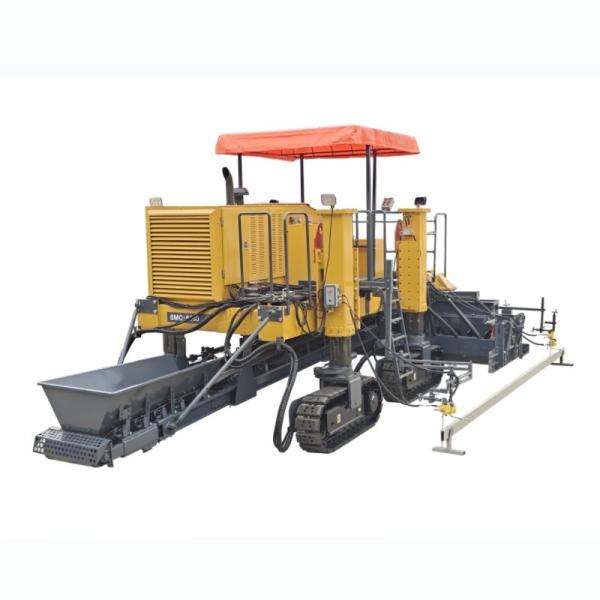

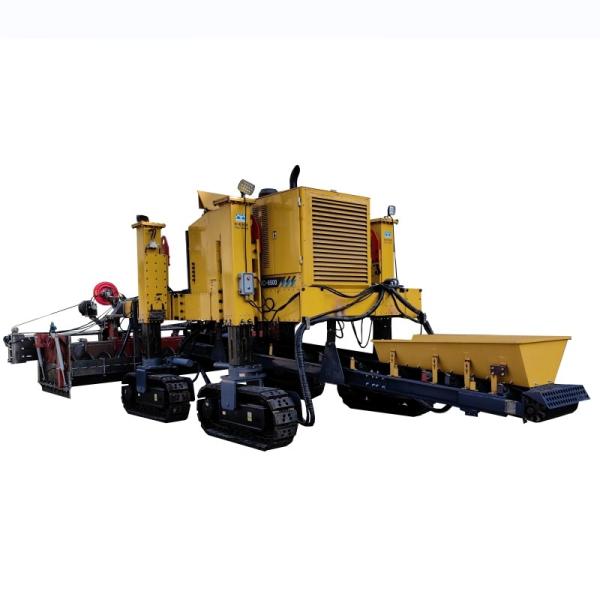

The SMC - 6500 slipform paver is a state - of - the - art concrete construction equipment independently developed by our company, specifically engineered to meet the demands of high - standard pavement projects.

It comes with a substantial power reserve, ensuring it can handle even the most challenging paving tasks with ease. The integration of full electronic control and full hydraulic drive systems grants it exceptional operational precision and responsiveness. The four - track travel design provides outstanding stability, allowing the paver to move smoothly and maintain accuracy during operation, even on uneven terrain.

Equipped with an advanced automatic steering system, the SMC - 6500 can navigate precisely along the designated paving path, eliminating deviations and ensuring a straight and uniform pavement edge. The automatic leveling system is equally impressive, constantly adjusting the paver's working surface to maintain a consistent height, which is crucial for achieving a smooth and level concrete surface.

What truly sets the SMC - 6500 apart is its ability to complete the entire process of cement concrete handling in one seamless operation. From feeding the concrete into the machine, distributing it evenly across the paving area, vibrating and compacting it to ensure proper density, to finally paving and smoothing the surface, every step is executed with high efficiency and precision. This integrated approach significantly improves both the construction quality and speed compared to traditional paving methods that rely on multiple separate operations.

The newly designed rear - mounted mold is a game - changer for projects with limited road base clearance. It can effectively solve the problem of insufficient clearance, enabling negative clearance construction. This makes the SMC - 6500 highly versatile, especially suitable for paving county roads and rural roads that often lack road shoulders. Whether it's a small - scale rural road project or a more extensive county road construction, the SMC - 6500 delivers consistent and reliable performance, ensuring that each pavement project meets the highest standards of quality and durability.

Technical parameters

Paving width 2500-4500 mm
Paving height 0-300 mm
Flatness ±3 mm/3m
Paving Speed 0-15 m/min
Driving speed 0-1.8 km/h
Vibrator brand WYCO
Vibrator interface 12
Vibrator frequency 0-167 Hz
Frul tank 320L
Water tank 550L
Engine Shangchai SC7H180G3
Rate power 132Kw/2200rpm
Emission standard Phase Ⅳ(Phase Ⅲ optional)
Feed system belt
Weight 19.5 t
Transport size(L*W*H) 7500*3000*2800 mm
