SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction
Specifications
Brand Name :
SIMING
Model Number :
SMC-6500
Certification :
ISO-9001/CE
Place of Origin :
China
MOQ :
1 psc
Payment Terms :
L/C, T/T
Delivery Time :
30-45 days
Packaging Details :
Container
Paving Width :
2500-4500 mm
Warranty :
1 Year
Paving Depth :
0-15 m/min
Travel Speed :
0-1.8 km/h
Total Weight :
19.5 t
Vibration Frequency :
0-167 Hz
Fuel Capacity :
320L
Water tank capacity :
550L
Engine power :
132kW/2200rpm
Paving thickness :
0 - 300 mm
Description
TAre you in search of a top - notch concrete paving solution for your road construction projects? Look no further than the SMC - 6500 Slipform Paver!

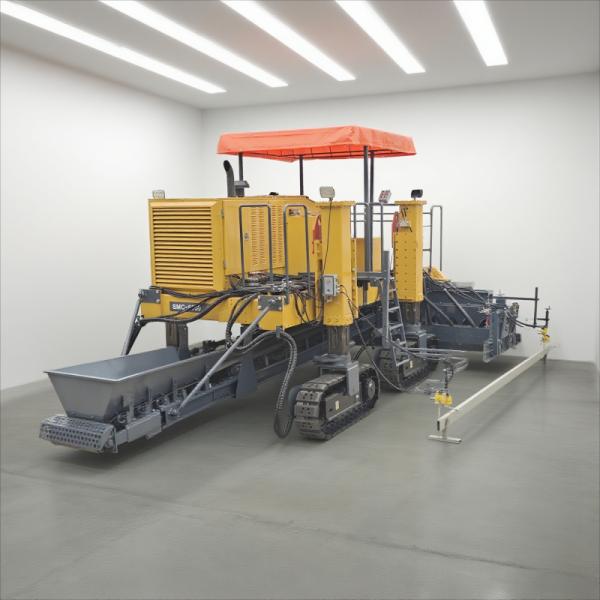

This paver is an independently developed concrete construction equipment, perfect for high - standard pavement projects. It has a large power reserve, ensuring it can tackle demanding paving tasks effortlessly. With full electronic control and full hydraulic drive, along with a four - track travel system, it offers excellent stability and maneuverability, even on uneven ground.
Equipped with an automatic steering and automatic leveling system, the SMC - 6500 can complete the entire process of cement concrete feeding, distribution, vibration, compaction, paving, and smoothing in one go. This not only boosts construction speed but also significantly enhances the quality of the pavement compared to traditional methods.
The newly designed rear - mounted mold is a standout feature. It can solve the problem of insufficient road base clearance, enabling negative clearance construction. This makes the paver highly suitable for paving county roads and rural roads without shoulders.

Technical parameters

Paving width 2500-4500 mm
Paving height 0-300 mm
Flatness ±3 mm/3m
Paving Speed 0-15 m/min
Driving speed 0-1.8 km/h
Vibrator brand WYCO
Vibrator interface 12
Vibrator frequency 0-167 Hz
Frul tank 320L
Water tank 550L
Engine Shangchai SC7H180G3
Rate power 132Kw/2200rpm
Emission standard Phase Ⅳ(Phase Ⅲ optional)
Feed system belt
Weight 19.5 t
Transport size(L*W*H) 7500*3000*2800 mm

Cases:

SMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road ConstructionSMC - 6500 concrete Slipform Paver: High - Efficiency Concrete Paving Equipment for Road Construction

nvest in the SMC - 6500 Slipform Paver today and take your road construction projects to the next level!
