Specifications
Payment Terms :
L/C,T/T
Vibrating Frequency :
0-167 Hz
Paving Width :
3500-8500mm
Paving Thickness :
0-450mm
Walking Speed :
0-1.1km/h
Fuel Tank Capacity :
470 L
Diesel Tank Volume :
370L
Weight :
30t
Warranty :
1 Year
Engine Power :
177 kW@2200rpm
Condition :
New
Paving speed :
0-6m/min
Emission standard :
Stage 4
Brand Name :
SIMING
Model Number :
SMC-6800
Certification :
ISO9001/CE
Place of Origin :
Jiangsu, China
MOQ :
1 unit
Delivery Time :
30-45 days
Packaging Details :
shipping
Description

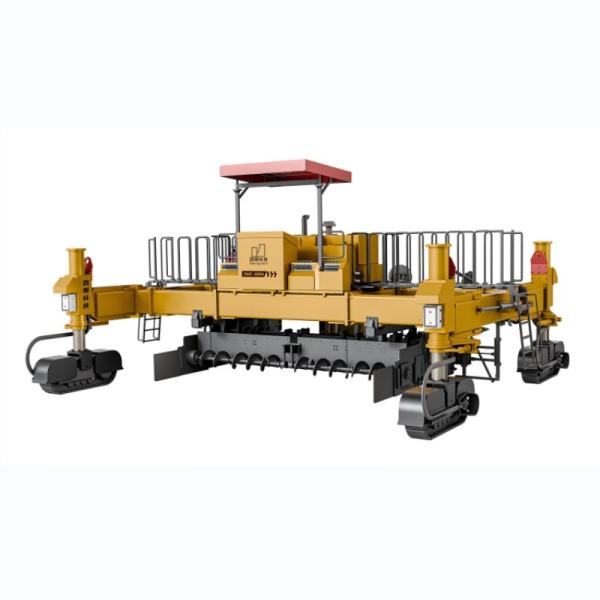

SMC-6800 Cement Concrete Slipform Paver: Engineering Efficiency Accelerator
The SMC-6800 is a multi-functional cement concrete construction equipment designed to replace traditional manual work with integrated operation. It provides dual guarantees of quality and speed for various scenarios including expressway base courses, high-speed railway subgrades, and agricultural irrigation channels, solving the problems of slow efficiency, large errors, and high labor costs in traditional processes.
Core Advantages
Power System: Endurance Guarantee
The SMC-6800 features a combination of water-cooled engine and parallel-flow three-way radiator with forced air cooling, enabling 24/7 non-stop operation. This reduces construction delays by 3-5 days and helps projects be delivered 7-10 days ahead of schedule.
Hydraulic System: Stable Performance
  • Equipped with a four-pump load-sensing hydraulic system from international first-tier brands
  • Dual-stage high-quality filters reduce hydraulic oil contamination risk by 80%
  • 40% reduction in long-term maintenance costs
Vibration Compaction System: Density Customization
  • Military-grade square-head hydraulic vibration core with 0-167Hz precise frequency modulation
  • Expressway base course: Density reaches over 98%, meeting 10+ year service life
  • Irrigation channels: Low-frequency vibration increases smoothness by 30%
Electronic Control System: Intelligent Operation
  • Colorful graphical interface with real-time fault diagnosis
  • Automatic steering/elevation calibration reduces training period by 30%
  • Construction parameter error controlled within ±2mm
Traveling Device: All-Terrain Capability
  • Four-track "hydraulic tank-type" design for stability on 15° slopes
  • Load-sensing drive technology prevents high-temperature shutdowns
  • Adapts to diverse climates including humid and dry heat environments
Additional Features
  • Dual-hydraulic auger intelligent material-homogenizing arms
  • High pressure washer with 400L standard water tank (optional 4*130L tanks)
  • Optional tie bar inserter with automatic/manual operation
  • Optional oscillating beam with hydraulic frequency regulation
  • Optional super smoother for superior road finish
  • Optional DB inserter for various dowel bar specifications
Technical Specifications
Parameter Value
Paving Width 3500-8500 mm
Paving Thickness 100-480 mm
Smoothness ±3 (mm/3m)
Paving Speed 0-6 m/min
Speed 0-1.1 km/h
Vibrating Circuits 24
Vibrating Frequency 0-167 Hz
Diesel Tank 370 L
Water Tank 400 L (standard) + 140L*4 (optional)
Total Length 13740/9640 mm (transportation/work)
Width 2800/7300 mm (transportation/work)
Height 3220/4300 mm (transportation/work)
Engine Model SC7H240 G4
Power 177 Kw @ 2200rpm
Emission Stage 4
