Specifications
Brand Name :
SIMING
Model Number :
SMC-521
Certification :
ISO9001/CE
Place of Origin :
Jiangsu, China
MOQ :
1 unit
Payment Terms :
L/C,T/T
Delivery Time :
15-20 work days
Packaging Details :
Container shipping
Paving Width :
1250mm
Paving Height :
400 mm
Model :
customized
Paving Speed :
0-12 m/min
Travel Speed :
0-33 m/min
Overall Dimensions :
3200 x 1500 x1300mm
Description
Drainage Channel Construction | Concrete Slipform Paver Application

n tropical and monsoon regions, concrete drainage channels are critical for road durability. These long, repetitive structures are ideal for slipform paving.

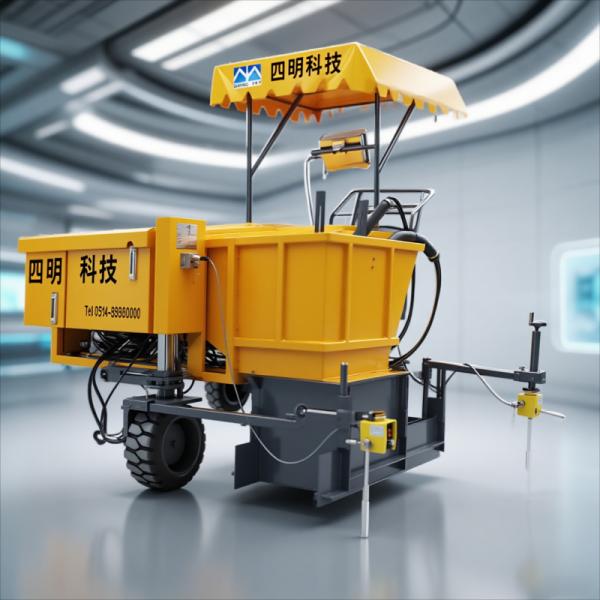

The SMC-521 Concrete Slipform Paver enables continuous drainage channel construction without repeated formwork installation. It operates stably on soil or gravel bases, reducing site preparation costs.

By improving consistency and shortening construction time, the SMC-521 minimizes leakage and edge defects, making it a practical Concrete Slipform Paver for drainage projects in developing markets.

Application Features
  1. User-friendly and intuitive man-machine interface
  2. Meets high efficiency and environmental protection requirements with sufficient power surplus
  3. Single crawler hydraulic drive ensures stable operation and good adhesion
  4. High-precision automatic leveling and steering for accurate paving according to specified elevation and line shape
  5. Built-in vibrating rod ensures smooth concrete surface and dense interior after paving
  6. Complete high-pressure water washing device and random tools for convenient field work and maintenance
Technical Parameters
No. Project Unit Parameter
1 Engine / Yanmar 3TNV88/Quanjiao QC485G
2 Hydraulic pump / American Sauer variable pump KRR038
3 Paving speed m/min 0-12
4 Driving speed m/min 0-33
5 Paving size cm Curb stone width 125*height 40
6 Host weight kg 2100
7 Shipping size(L*W*H) mm 3200*1500*1300

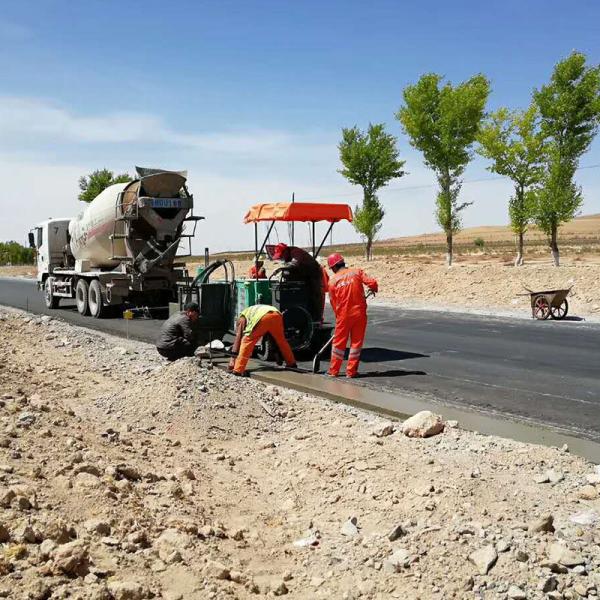

Construction Case
Drainage Channel Construction | Concrete Slipform Paver Application Drainage Channel Construction | Concrete Slipform Paver Application
Drainage Channel Construction | Concrete Slipform Paver Application
