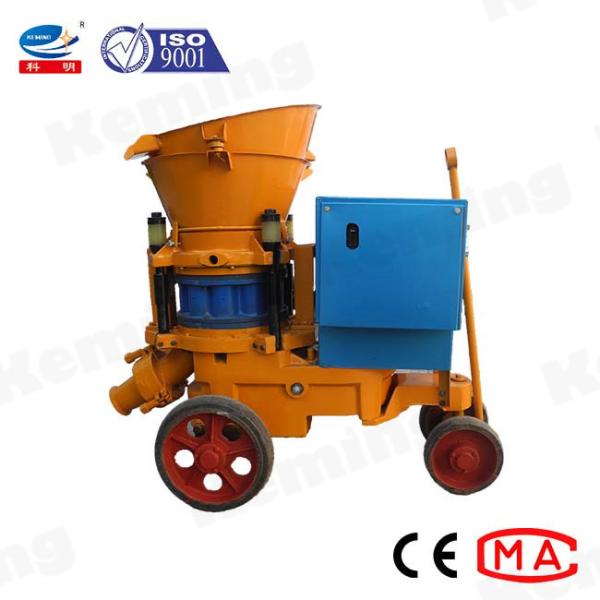

Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa
Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa
Specifications
Brand Name :
KEMING
Model Number :
KPZ-3
Certification :
CE,MA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Per Month
Delivery Time :
10~20 Work Day
Packaging Details :
Export Wooden Case
Product name :
KPZ-3/4/5/7/9 dry gunite machine
Pressure :
0.6Mpa
Max aggregate :
20mm
Main power :
7.5kW
Horz. distance :
100m
Vert. distance :
40m
Capacity :
7~9m3/h
Theory :
Rotory shotcrete machine
Output :
3/4/5.5/6.5/8.5m3/h
COLOR :
Customer's Requirement
Description

Customized KPZ dry gunite shotcrete machine using electric motor for mine

Electric Dry Shotcrete Machine Introduction:

1. Electric dry shotcrete machine is designed for spraying dry, damp and wet mixture.

2. Electric dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box.

3. It has advanced technology, rational structure, convenient operation, stable performance and long service life.

Electric Dry Shotcrete Machine Application:

1. Electric dry shotcrete machine can be used for dry or half wet concrete spray construction.

2. It is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

Electric Dry Shotcrete Machin Parameters:

KPZ Series (Electric motor)
Model KPZ-3 KPZ-4 KPZ-5/PC5I KPZ-7 KPZ-9
Output 2-3m3/h 3.5-4.5m3/h 4.5-5.5m3/h 6-7m3/h 7.5-8.5m3/h
Max. conveying dist. 250m 230m 200m 150m 100m
Max. aggregate size 15m 18m 20m 20m 20m
Hose inner diameter φ42/51mm φ42/51mm φ51mm φ57mm φ57/64mm
Air consumption 5-6m3/min 6-7m3/min 7-8m3/min 8-9m3/min 9-10m3/min
Motor power 3kw 5.5kw 5.5kw 7.5kw 7.5kw
