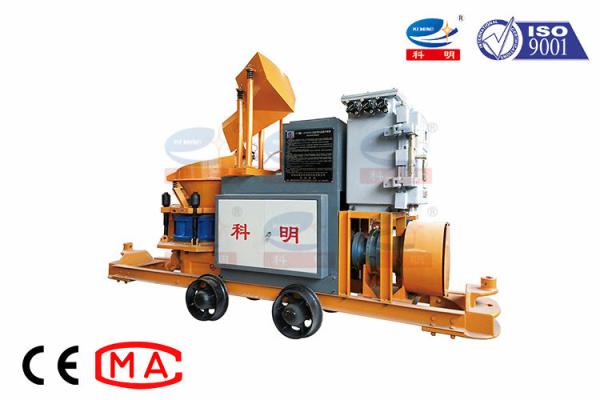

Mining Safety Concrete Shotcrete Machine Low Dust Dry Shotcrete Machine
Mining Safety Concrete Shotcrete Machine Low Dust Dry Shotcrete Machine
Specifications
Brand Name :
KEMING
Model Number :
JPS6I-L
Certification :
CE,MA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Per Month
Delivery Time :
10~20 Work Day
Packaging Details :
Export Wooden Case
Capacity :
6~7m3/h
Pressure :
0.6Mpa
Max aggregate :
20mm
Main power :
7.5kW
Horz. distance :
100m
Vert. distance :
40m
Description

Mining Safety Concrete Shotcrete Machine Low Dust Dry Shotcrete Machine

Shotcrete Machine Parameters:

Capacity
m3/h
4~6
Conveying dist.
m
60/10
Suitable water and cement ratio
>0.40
Addictive ratio of powdery accelerator
/
3%~7%
Max. aggregate size
mm
≤15
Conveying pipe ID.
mm
φ57
Work pressure
MPa
0.2~0.4
System air pressure
MPa
≥0.6
Air consumption
m3/min
≥10
Material feeding height
m
1.1
Motor type
Type
/
YBK2-160M-6
Power
kW
7.5
Type
/
YBK2-112M-4
Power
kW
4
Type
/
YBK2-112M-4
Power
kW
4
Voltage
V
380/660 or 660/1140
Machine gauge
mm
600(900)
Dimensions
(Length×width×height)
mm
3179×820×1900
Total weight
kg
1500

Shotcrete Machine Features:

1. JPS6IL Anti-explosion Wet Shotcrete Machine Mining Machine

2. JPS6IL includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.

3. long conveying distance, fewer dusts, reliable performance.

4. simplified operation, convenient maintenance and cleaning.

Shotcrete Machine Application:

1. JPS6IL Wet Shotcrete Machine for spraying half wet or wet concrete.

2. widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

Mining Safety Concrete Shotcrete Machine Low Dust Dry Shotcrete Machine
