21m 23m 25m 29m 38m 45m Aerial Bucket Truck Mounted Aerial Working Platform Aerial Lift Truck With Bucket
21m 23m 25m 29m 38m 45m Aerial Bucket Truck Mounted Aerial Working Platform Aerial Lift Truck With Bucket
Specifications
Brand Name :
JIUHE
Model Number :
21m 23m 25m 29m 38m 45m
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
20000USD-37000USD
Payment Terms :
L/C, T/T
Supply Ability :
100SET
Delivery Time :
15 WORKING DAYS
model :
21m 23m 25m 29m 38m 45m
name :
aerial platform truck
Description
21m 23m 25m 29m 38m 45m Aerial Bucket Truck Mounted Aerial Working Platform aerial lift truck with Bucket
Product Overview

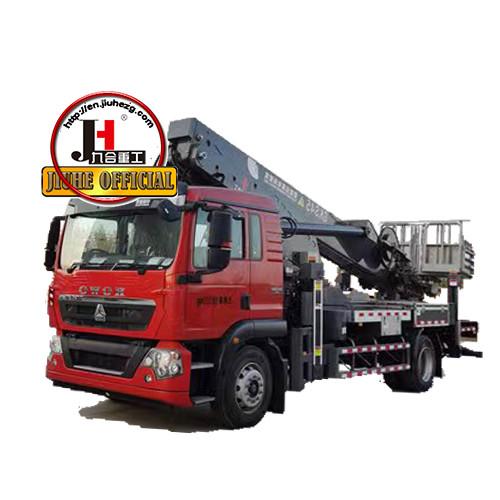

JH/JIUHE 21m 23m 25m 29m 38m 45m Truck Mounted Aerial Working Platform with Bucket.
The new generation of small and light duty Aerial working platform from JIUHE is only 6m in length, ecology green and saving energy. Big span of double-level horizontal legs can be regulated separately with good adaptability to the work conditions . Equal volume cylinder make sure that work platform is always horizontal. The machine is equipped with remote control equipment, has the function of stowing vehicle with one key, easy to operate.

In addition, it is quite convenient for operation of the machine on the narrow road because of its unilateral operation function .mutual lock function and soft leg protection function make sure that operation is safe, supply emergency electric pump that is used to stow work equipment in an emergency.
FEATURES AT A GLANCE
Product Highlights: (1) safe and reliable, easy to operate Imported key parts ensure reliable operation. Four stabilizers can be controlled separately, with high adaptability. Boom action and legs action with mutual locking,legs is restricted to move when the boom is moving .Soft leg protection ensure safe operation, boom is restricted to slew when horizontal leg is not extended, but lifting is not limited. To ensure safety operation, it is equipped with an emergency power system. (2) beautiful and comfortable The overall dimensions have obvious advantage in the same industry, small, fast and agile. (3)high configuration, high cost performance The unit is equipped with imported key parts, overall structure use high strength plate, safe and reliable, can meet the needs of user with good cost performance.
Right elevation
Front elevation
Left elevation
PRODUCT SPECIFICATIONS
No
Item
21m
23m
25m
29m
38m
45m
1
Max. working height of platform
21m
23m
24.7m
28.9m
38m
45.3m
2
Max. working range of platform
11.5m
13.7m
15.8m
22m
24.3m
28.2m
3
Power
115kw
115kw
132kw
130kw
205kw
220kw
4
Rated load of working platform
200kg
200kg
200kg
400kg
400kg
400kg
5
Rotation angle of working platform
360°
360°
360°
360°
360°
360°
6
wheelbase
2800mm
2800mm
3300mm
2800mm
3900mm
4900mm
7
Overall length
5995mm
5995mm
5995mm
6114mm
8130mm
9680mm
8
Overall width
2070mm
2070mm
2070mm
2170mm
2530mm
2496mm
9
Overall height
2950mm
2950mm
3150mm
3226mm
3840mm
9890mm
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1: Is your company a factory or a trading company?
A: Yes,We are a factory specializing in the production of aerial vehicles.

Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.

Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of
Letter.

Q4: What is your terms of delivery?
A: EXW,FOB,CFR,CIF,DDU.

Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.

Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
