Specifications
Brand Name :
JIUHE
Model Number :
70m
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
100SET
Delivery Time :
25 WORKING DAYS
Brand :
JIUHE
Warranty :
1 year
Condition :
New
Color :
as requested
Keyword :
concrete pump truck
Main pump :
Rexroth
Wireless remote control :
HBC
Max. vertical conveying distance :
70M
Power type :
Diesel
Productivity :
140M³/H
Weight :
57000kg
Dimension(L*W*H) :
16607*2550*4000mm
Chassis Brand :
SHACMAN 10x4
Engine power :
510HP
Boom arm number :
6 SECTIONS
Hopper capacity (M3 ) :
0.6
Description

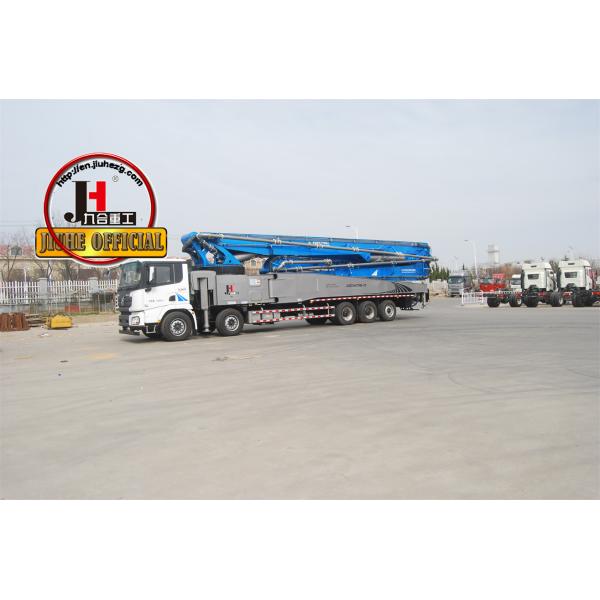

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

1.Extremely High Pumping Efficiency: The 70-meter pump truck's efficient pumping system can rapidly convey concrete, reducing construction project time and increasing productivity.

2.Suitable for Heavy-Duty Engineering Applications: Ideal for large-scale high-rise buildings, bridges,tunnels, and other heavy-duty projects, it can easily handle challenging concrete pumping tasks.

3.Flexibility and Ease of Operation: The design of Jiuhe Heavy Industry's 70-meter pump truck is flexible and user-friendly, allowing it to adapt to different work scenarios and pumping requirements. Operators can easily control the pumping process, improving work efficiency.

4.Durability and Low Maintenance Costs: Jiuhe Heavy Industry manufactures the pump truck using high-quality materials and advanced manufacturing processes, ensuring exceptional reliability and durability, reducing maintenance costs and downtime.

5.Safety and Easy Maintenance: The 70-meter pump truck is equipped with advanced safety features to ensure job site safety. Additionally, the company provides comprehensive after-sales service and maintenance support to ensure the pump truck's smooth operation and upkeep.

I. Chassis
1 Chassis Brand Foton/Faw/Isuzu
2 Driving type 10*4
3 Power 510HP
4 Steering type Left hand drive or right hand drive
5 Emission standard EURO 5
II. Boom system
1 Max. Vertical height(M) 69.3
2 Max. Horizontal Concrete Placing radius (M) 65.3
3 Concrete placing depth(M) 51.8
4 Boom structure 70X-6RZ
5 Rotating angle of turret 360°
6 Length of end hose (MM) 3000
7 Concrete delivery pipe dia. 125
III. Electric Control System
1 Working voltage(V): 24
IV. Hydraulic transmission system
1 Type of hydraulic system Open type
2 System working pressure (Mpa) 32
3 Displacement of main hydraulic oil pump (ml/r) 260
4 Hydraulic fuel tank capacity (l) 880
5 Cooling mode of hydraulic oil Forced-air Cooling
VII. Pumping system
1 Form of concrete distribution valve S Valve
2 Concrete cylinder 260
3 Maximum feeding height (MM) 1550
4 Hopper capacity (M3 ) 0.65
5 Slump of pumped concrete 160-220
6 Dimension of allowable maximum aggregate (MM) 40
7 Lubricating method Centralized lubrication

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 202370M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

70M JIUHE isuzu Diesel Concrete Pump Truck with 6 Sections Boom Arm in 2023

Development strategy

Strives for the survival by the quality, seek development by science and technology

Corporate philosophy

People-oriented, science and technology enterprise, recruiting high level scientific and

technological personnel, actively introduce advanced technology at home and abroad

JiuHe Service
As a professional company,we promise as following:

JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.

JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
