Specifications
Brand Name :
SANY
Model Number :
BC5180BH1169
Place of Origin :
Changsha，Hunan，China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T、L/C、D/A、D/P
Supply Ability :
1pcs/month
Delivery Time :
15days
Packaging Details :
Standard Export Package
Color :
Red + Orange
Brand :
Sany
Engine Power​(kW) :
247kW
Maximum speed :
95km/h
Arm length :
30 meter
Description

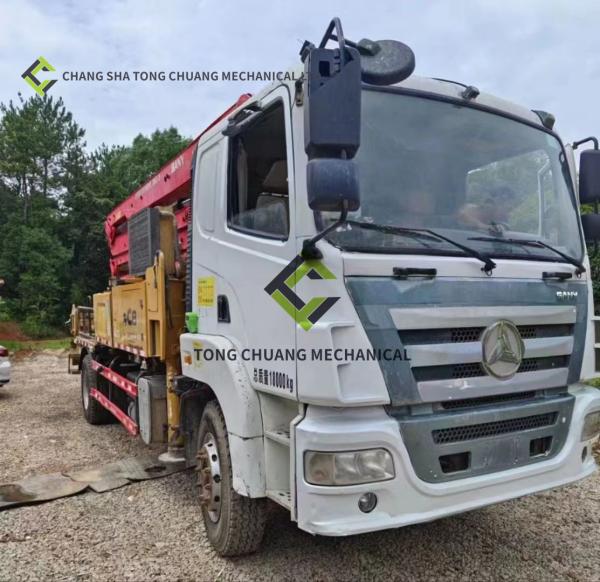

In 2018 Sany Heavy Industry Used BC5180BH1169 Concrete Pump Truck

Product features and advantages:

1: Manufacture date: 2018

2: Pump working time: 1392.4 hours

3: conveying square quantity of concrete: 51173 cubic meters

4:Very favorable prices for sale

Technical parameters of Sany BC5180BH1169 30 meter concrete pump truck:

Here are the technical parameters of the Sany BC5180BH1169 30m concrete pump truck:
1: Model: BC5180BH1169
2: Maximum theoretical conveying distance: 30m
3: Maximum theoretical conveying height: 29.7m
4: Maximum theoretical conveying depth: 19.5m
5: Pumping pressure: 8MPa
6: Pumping frequency: 16 times/min
7: Chassis configuration: SINOTRUK HOWO chassis
8: Engine power: 247kW
9: Engine emission standard: China National V
10: Hydraulic system pressure: 32MPa
11: Hydraulic oil tank capacity: 400L
12: Total weight: 18000kg
13: Overall dimensions: 8900mm×2490mm×3850mm

Sany Heavy Industry BC5180BH1169 30 meter concrete pump truck HOWO chassis parameters:

Here are the parameters of the SINOTRUK HOWO chassis used in the Sany BC5180BH1169 30m concrete pump truck:
1: Chassis model: ZZ5187N4617E1R1

2: Engine model: WD615.87, meets China's National V emission standard
3: Engine power: 247kW
4: Maximum torque: 1350N.m
5: Displacement: 9.726L
6: Cab type: HW76 long top single row cab, with air conditioning
7: Transmission model: HW19710, 10 forward and 2 reverse manual transmission
8: Drive form: 6x4, with rear double axle drive
9: Wheelbase: 4600mm
10: Tire specifications: 12.00R20, with double-layer steel wire tires
11: Fuel tank capacity: 300L
