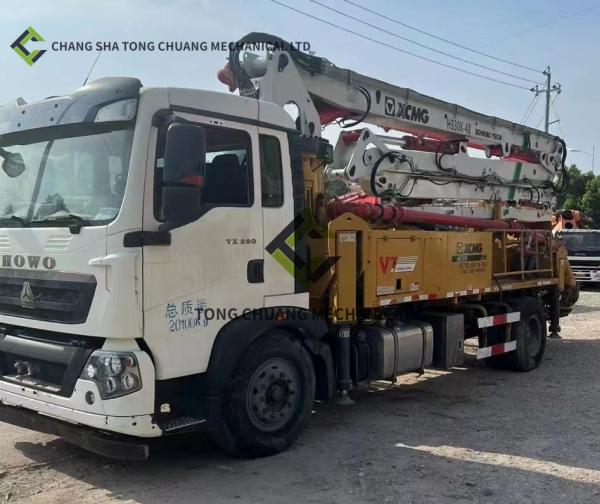

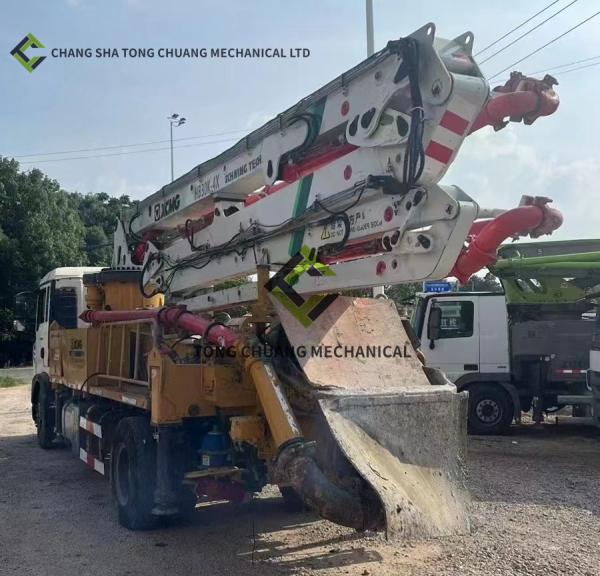

In 2021 XCMG SCHWING 30 meter Used HB30K-4X Concrete Pump Truck

Product features and advantages:

1: Manufacture date: 2021

2: Pump working time: 1200 hours

3: conveying square quantity of concrete:30000 cubic meters

4: Very favorable prices for sale

XCMG Schwing technical parameters of HB 30 K-4X 30 m concrete pump truck:

Here are the technical specifications of the XCMG HB30K-4X 30m concrete pump truck:
1: Model: HB30K-4X
２:Maximum theoretical conveying distance: 30m
３:Maximum theoretical conveying height: 29.7m
４:Maximum theoretical conveying depth: 17.5m
５:Pumping pressure: 8MPa
６:Pumping frequency: 18 times/min
７:Chassis configuration: XCMG self-produced chassis
８:Engine power: 132kW
９:Engine emission standard: China National V
1０:Hydraulic system pressure: 32MPa
1１:Hydraulic oil tank capacity: 300L
1２:Total weight: 11800kg
1３:Overall dimensions: 7750mm×2250mm×2960mm

Technical parameters of XCMG HB 30 K-4X 30 m concrete pump truck pumping system:

Here are the technical specifications of the pumping system for the XCMG HB30K-4X 30m concrete pump truck:
１:Main pump model: K3V112D
２:Main pump displacement: 112ml/r
３:Main oil cylinder diameter x stroke: ø100×1400mm
４:S-tube valve type for distribution valve
５:Supporting pump model: 50DWBX
６:Supporting pump displacement: 50ml/r
７:Oil tank capacity: 600L
８:Hydraulic system pressure: 32MPa
９:Pumping pressure: 8MPa
１０:Pumping frequency: 18 times/min

XCMG Schwing HB 30 K-4X 30 m concrete pump truck uses HOWO chassis technical parameters:

Here are the technical specifications of the SINOTRUK HOWO chassis used for the XCMG HB30K-4X 30m concrete pump truck:
１:Chassis model: ZZ5307N4647E1
２:Engine model: WD615.95E, compliant with China National V emission standard
３:Engine power: 247kW
４:Maximum torque: 1350N.m
５:Displacement: 9.726L
６:Cab type: HW76 long cab, single berth, with air conditioning
７:Transmission model: HW19710, 10 forwards and 2 reverse gears manual transmission
８:Drive type: 6×4, rear-wheel drive
９:Wheelbase: 4025+1350mm
１０:Tire specifications: 12.00R20 steel wire tire
１１:Fuel tank capacity: 300L
