Adjustable Height Table Formwork
Adjustable Height Table Formwork
Specifications
Place of Origin :
Beijing, China (Mainland)
Brand Name :
ZULIN
Certification :
ISO9001-2008
Model Number :
Shifting trolley
MOQ :
One 20ft container
Price :
Negotiation
Packaging Details :
In bulk,pallet,bundle or according the customer demand
Delivery Time :
After deposit 15-20 days
Payment Terms :
T/T L/C （bank transfer）
Supply Ability :
100sets/day
Description

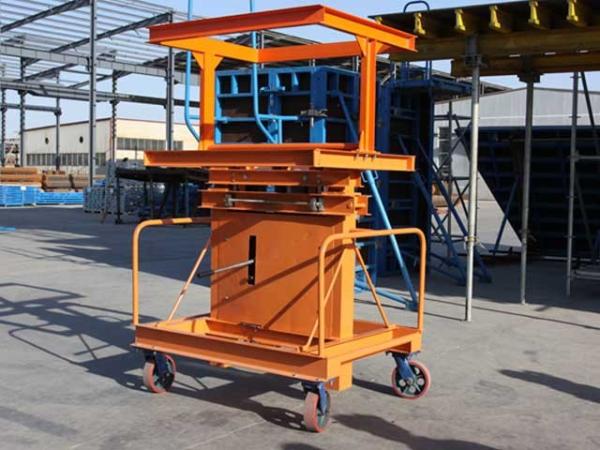

Adjustable Height Table Formwork Shifting Trolley with Attached Frame Construction Equipment

Descrition:

Shifting trolley is used for transporting the table formwork unit on the same floor. It mainly consists of two parts,

the standard device and attached frame(if needed). During transporting, push the shifting trolley to the place just

below the center of table formwork unit, adjust the height of the trolley manually by a handle, and lift the formwork

unit.Then move the trolley (with the formwork unit on it) to the designated position, lower the trolley manually, leave

the table formwork unit on the ground and finally remove the trolley.

Height:

※ Standard device
Hmin = 1750mm Hmax = 3250mm
※ Standard device with an attached frame
Hmin = 2500mm Hmax = 3900mm

Bearing load:

※ Standard device:1100kg(11kN)
※ Standard device with an attached frame:1000kg(10kN)

Move the table formwork on the same floor
