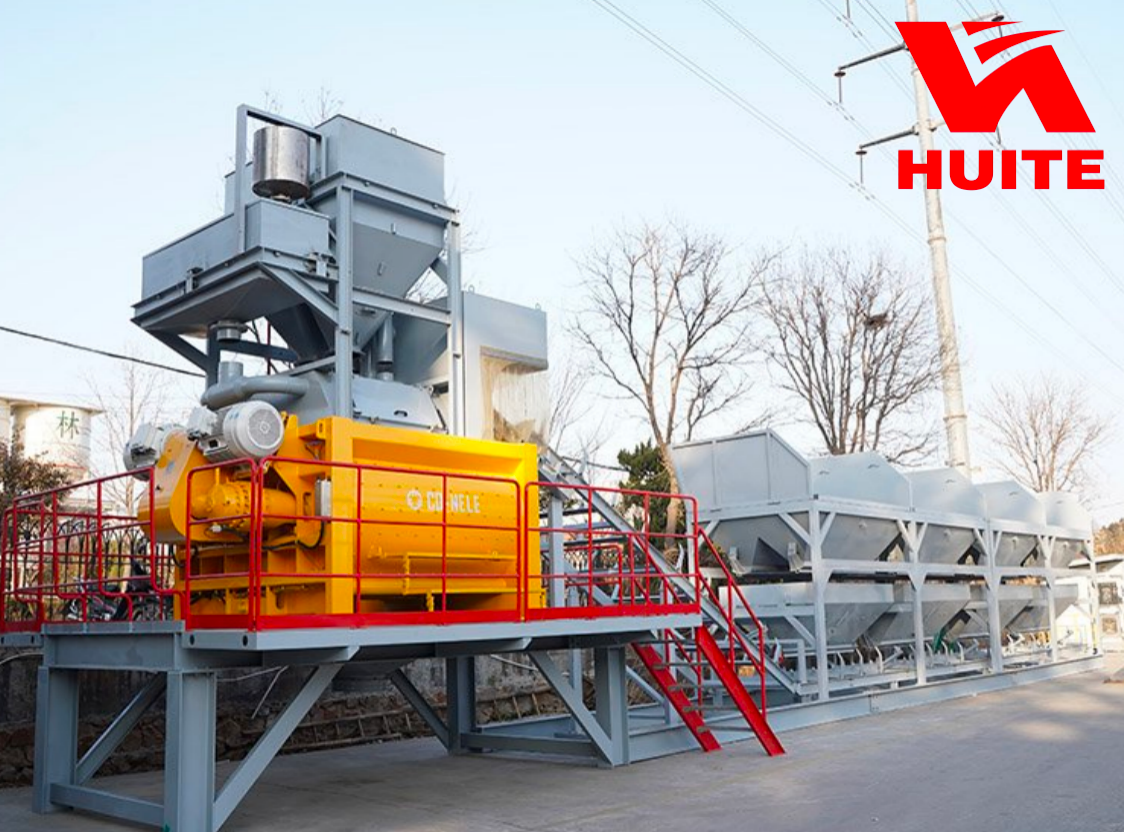

HZS180T Stationary Compact Concrete Batching Plant Equipment
HZS180T Stationary Compact Concrete Batching Plant Equipment
Specifications
Model Number :
HZM180T
Structure :
Stationary, Tower-type, Modular
Safety devices :
Overload protection, emergency stop, limit protection
Maintenance :
Easy to replace wearing parts
Brand Name :
HUITE
Theoretical productivity :
180 m³/h
MOQ :
1
Application :
Commercial mixing plant, large construction site
Payment Terms :
D/P,T/T
Transportation :
Split transportation, easy relocation
Description
Product Description
Main Station System
  • Modular metering system for easy installation and commissioning.
  • The main building frame is made of H-beam steel for enhanced structural stability.
  • The aggregate bin is equipped with a cover for feeding, featuring long service life and high durability.
  • Built-in dust removal pipelines for powder materials realize faster discharging and higher working efficiency.
Aggregate Conveying System
  • High-angle chevron conveyor belt with extended deflector head, requiring shorter conveying distance and lowering overall costs.
  • High-quality chevron belt with deep patterns and wide width ensures smooth material transportation.
  • Dense roller sets together with self-aligning idler assemblies simplify on-site maintenance.
Batching Section
  • Double-door discharging design enables fast and accurate metering.
  • The sand bin is lined with polymer plates to guarantee smooth discharge of manufactured sand.
  • Long-opening discharge gates speed up discharging and improve batching efficiency.
  • H-beam base frame with high modularity delivers outstanding stability.
