Specifications
Brand Name :
ForPro
Model Number :
Parameter list
Certification :
ISO and CE
Place of Origin :
Shanghai
MOQ :
1000 pcs
Price :
$6-10/pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000 pcs
Delivery Time :
20-30 Work Days
Packaging Details :
Pallet
Package :
Standard Package (plastic Bag/carton Box)
Condition :
100% original
Quality guarantee :
One Year
Operating temperature :
Normal Temperature
Lead time :
25 Work days
Unit price :
CONTACT US,Email US
Description

ForPro galvanized tie rod for concrete construction with high intensity and self-cleaning

Outline

Nut is a kind of important accessories to tight formwork in pouring shear wall. Together with the Tie Rod, they act as wall tie system to fasten the formwork panels tightly during concrete pouring . They can also be used in other applications for fasten purpose.

We have casted & forged wing nut,swivel nut/combination nut,anchor nut ,waler plate with nut of different size and weight,we can also fabricate them according to your drawing or sample.

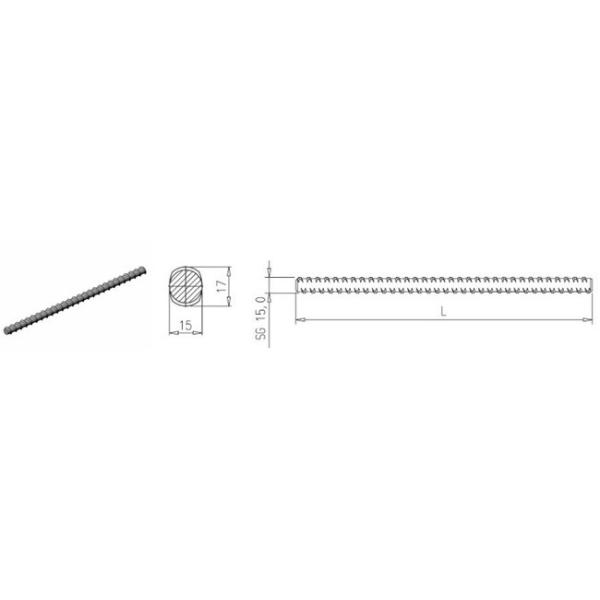

Tie rod 15.0

Permitted load:120 KN
Factor of safety :1.6:1
Permitted capacity to DIN 18216:90 KN
Breaking load:192KN
If galvanized treatment required, need to be customized.

ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity

Super plate 15.0

Galvanized
Composite type
According to DIN 18216 standards.

ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity

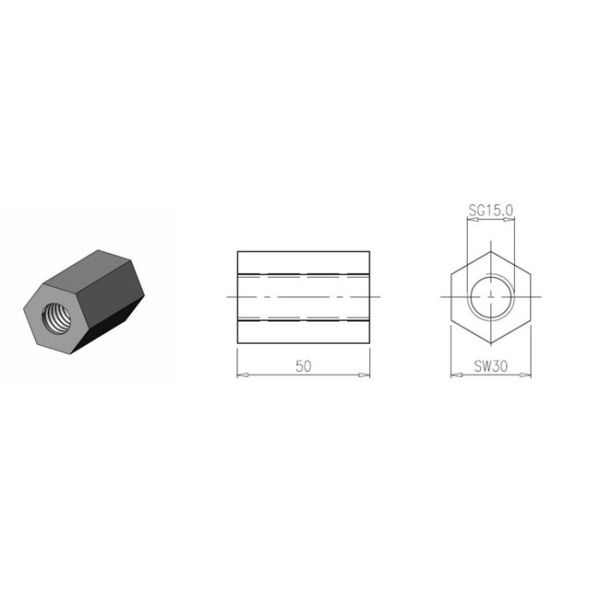

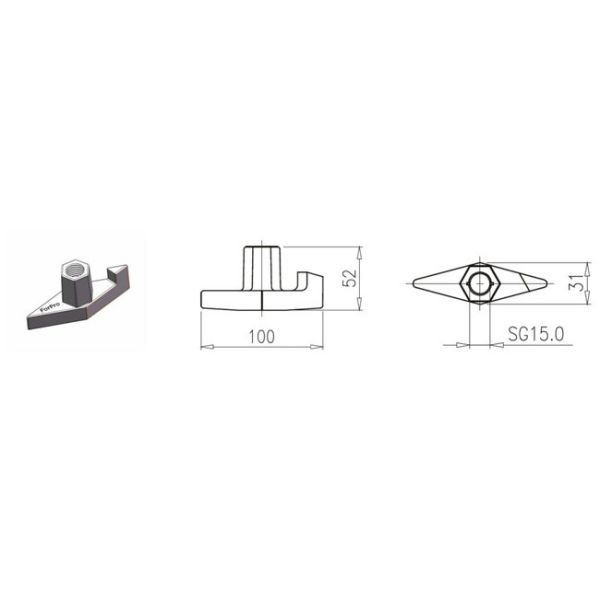

Wing nut 15.0 and Hexagon nut 15.0

Galvanized
Need to be used with the Anchor plate 15.0
According to DIN 18216 standards.

ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity

ForPro Concrete Formwork Accessories Galvanized Tie Rod With High Intensity
