High Bearing Capacity Scaffolding In Building Construction Q235 Steel Material
High Bearing Capacity Scaffolding In Building Construction Q235 Steel Material
Specifications
Brand Name :
ForPro
Model Number :
M60
Certification :
ISO and CE
Place of Origin :
Shanghai
MOQ :
100 Ton
Price :
$1000-1200/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Ton/Year
Delivery Time :
20-25 Work days
Packaging Details :
Pallet
Material :
Q235 Steel;Q345
Size :
M60
feature :
Quick erection
Bearing capacity :
17-20Tons
Surface :
Hot dipped galvanized
Standard :
ISO 9001-2000
Color :
Silver
Type :
Heave Duty Props
Description

High Bearing Capacity Quality Construction Scaffolding Material Ringlock scaffolding

Product description

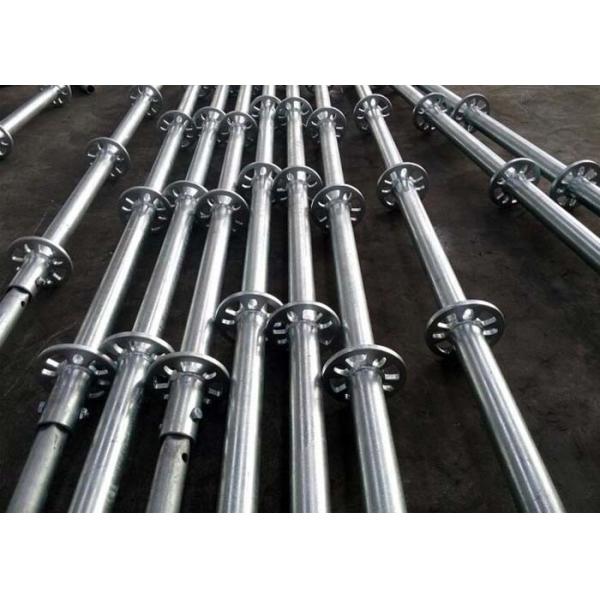

Ringlock scaffolding standard is made of Q235 steel tube, OD with 48mm and 60mm, thickness is 3.0mm, surface can be hot dip galvanized or powder coated.

The drop forged rosettes of ringlock scaffolding are welded on standard every 500mm, which is international standard. Each rosette have 8 holes, including 4 large holes and 4 small holes. so ringlock scaffolding allow the legers and standards are not at right angle. which means the ringlock scaffolding can be used for any shape of building.

Connect pin can be adjustable or fixed on standards, as you like.

High Bearing Capacity Scaffolding In Building Construction Q235 Steel MaterialHigh Bearing Capacity Scaffolding In Building Construction Q235 Steel Material

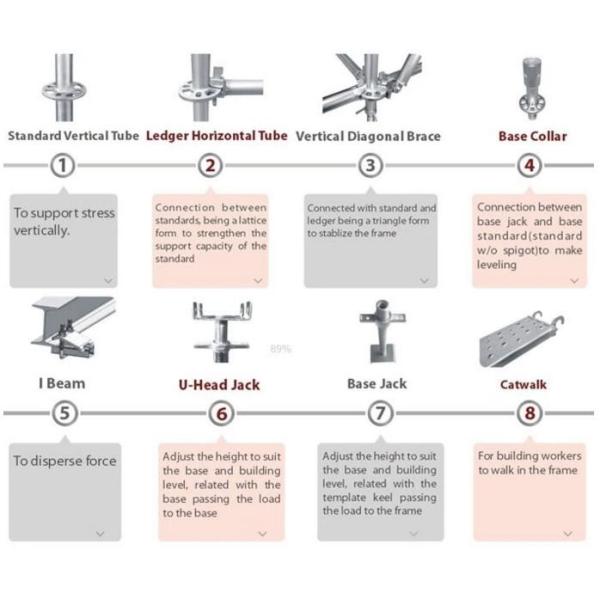

Product Components

Standard, Ledger, Brace, Metal Plank, Ladder, Base jack, Rosette, base collar

Standard with spigot, ledger and brace with forged connect point

Assemble steps

High Bearing Capacity Scaffolding In Building Construction Q235 Steel Material

Product feature

1.Surface treatment: Hot dipped galvanized

2 Reasonable joint design, easy to assemble.

3 Q345B materrial, HDG surface, more durable and clean.

4 Automatic welding, high precision.

5 High bearing capacity.

Advantage

1 Easily set up and easily disassembly,so it's labour saving
2 Stable and reliable,safe and efficent
3 Structure simple,Very little material required
4 Maintenance free ,easy to transport and always ready for use
5 Economic and versatile design
6 Strong commonality

Application

Bridge

Metro

Hydropower station

Tunnel

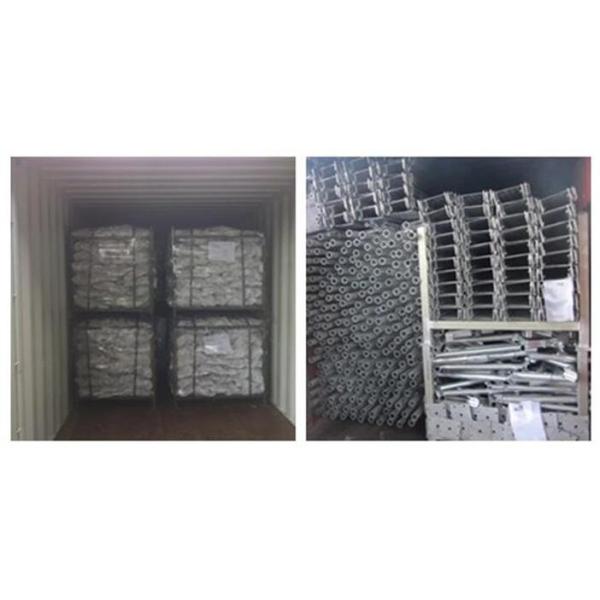

Packing

High Bearing Capacity Scaffolding In Building Construction Q235 Steel Material
