Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
Specifications
Brand Name :
ForPro
Model Number :
Customized
Certification :
ISO and CE
Place of Origin :
Shanghai
MOQ :
100 sqm
Price :
$100-150/Sqm
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Sqm / Year
Delivery Time :
15-20 work days
Packaging Details :
Pallet
Material :
Hot galvanizing Steel and Plywood
Color :
Yellow,Silver
Application :
LNG tanks/ Dam/ High-rise building/ Bridge tower/ Nuclear project etc..
Name :
Concrete Formwork,lager size formwork,Top50 formwork
Surface :
Painted,Galvanized,Easily Assembled, Reuses, Universal forming application, Eco Friendly,
Feature :
With Scaffold Bracket Equipped
Type :
Wall Form,column
Size :
Standard or customized
Description

Large-size & High Rigidity Concrete Wall Formwork Systems For Nuclear Project

Product Description

Large area formwork can be adapted to different geometric shapes to achieve fair-faced concrete.It includes plywood, wood beams, steel waling and connectors.Big rigidity, good molding quality.

Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project

Wall formwork components

Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams
Panel strut Painted
Waling connector Painted, Used for formwork panels alignment
Corner connector Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket Painted,severs as safety working platform

Packing
Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project

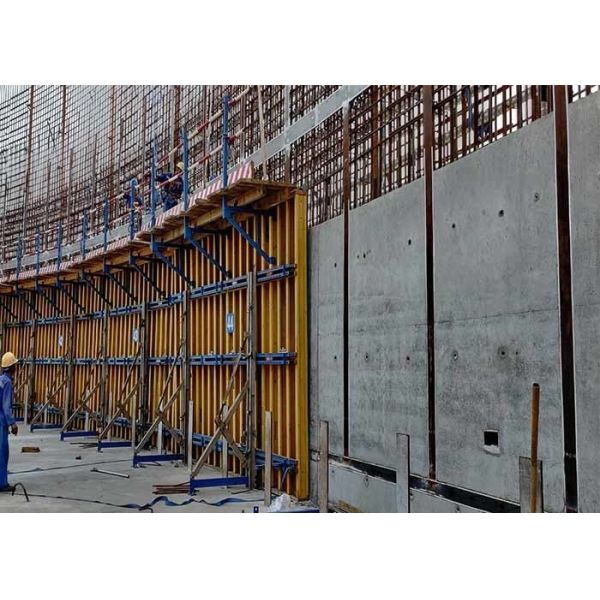

Applications

Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project
