Beams Columns And Slabs Formwork Systems T Form 350mm Thickness
Beams Columns And Slabs Formwork Systems T Form 350mm Thickness
Specifications
Brand Name :
ForPro
Model Number :
Customized
Certification :
ISO and CE
Place of Origin :
Shanghai
Payment Terms :
L/C, T/T
Supply Ability :
100000 M2 / Year
Delivery Time :
25-30 Work days
Packaging Details :
Pallet
Application :
Concrete Construction, slab pouring, Building Exterior Wall, Construction and reinforced concrete wall, slab formwork
Product name :
plastic formwork for construction, aluminum formwork system concrete forming system concrete formwork, Aluminum formwork system manufacturer in China, Steel Concrete Column Formwork
Surface treatment :
high protected painted
Length :
600-1800mm
Max loading :
350mm slab thickness workable
Description

Formwork For Beams Columns And Slabs Formwork Systems T Form With High Efficiency

Outline
T-Form is a cost-effective slab formwork system , with only 3 basic components and ready to use panel makes formwork construction become much simply and high efficiency. early strip head is specially equipped at the same time to decrease total material quantity and save formwork costs.

All components are made from Q345B (S335 DIN EN10025:), the galvanized or powder coated, or both on all the component. By the combination of panels, aux beams and bridge beam (or panel), the system deals with complex slab structure by very simple way. Formwork for Beam, filler for Column and Wall side will be not difficult anymore. Alternative way is to use the standard panel sitting on the lower level support mechanism as the beam bottom.

Main components

  • Slab panel

Steel frame and 12mm plywood is riveted into steel frame.

  • Steel prop with early strip head
  • Intermediate beam

Technical data

  • Light panel formwork for widely range of applications, small size panels can be handy mounted
  • Panel widths is up to 1.20m and width is up to 1.80m
  • Maximum permissible slab width for max. panel size (1.20mx1.80m): 350mm;
  • Shift wheel device is available for moving formwork unit to new position.

T-Form Panel dimension

Slab panel Panel size weight
Description WxH (mm) (kg)
TF0606 600x600 13.5
TF0906 900x600 18
TF0909 900x900 22
TF1206 1200x600 22
TF1209 1200x900 26
TF1212 1200x1200 32
TF1506 1500x600 25
TF1509 1500x900 33
TF1512 1500x1200 40.6
TF1806 1800x600 30
TF1809 1800x900 38
TF1812 1800x1200 45

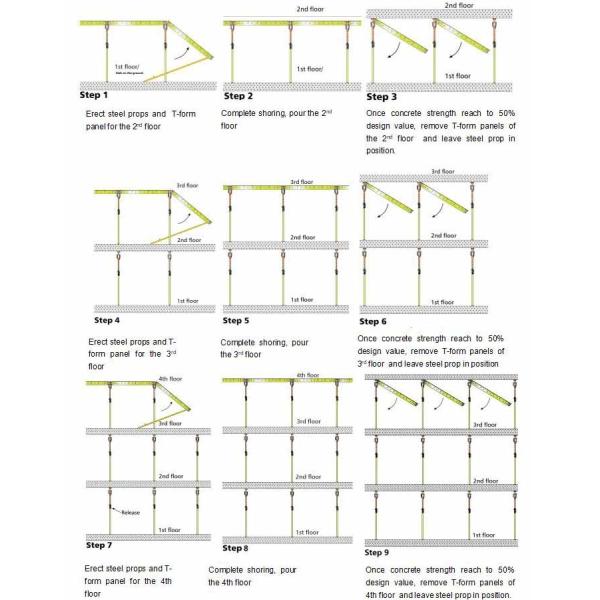

Erection procedure

Beams Columns And Slabs Formwork Systems T Form 350mm Thickness

Application field

  • Residential House
  • Factory
  • Civil engineering projects
