Specifications
Brand Name :
HLA
Model Number :
SQ-280 / SQ -18B
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T, Western Union,, L/C
Supply Ability :
600 sets /month
Delivery Time :
7 days after your payment
Packaging Details :
Normal Packing Carton or Flight Case
Frequency Range (+/-3 dB) :
70 Hz - 18 kHz
dispersion (-6 dB) :
H x V90° x 10°
Driver :
LF2x 8" HF1x 1.5" Exit Compression Driver
Nominal Impedance :
Dimensions(mm) :
752 X 425 X 250
Net Weight :
28KG
Description

Neodymium Nightclub Sound Equipment 8" 2 - Way 250W RMS Outdoor Line Array Speakers

Quick Detail:

SQ-280 / SQ-18B is a 2-way line array loudspeaker,which provides 70Hz-18KHz frequency response, consist of two neodymium 1" HF driver and one 8 inch LF driver,to generate ultrahigh headroom,effectively decrease the weight of the enclosure and obviously improve the ratio of SPL and Volume.
SQ-280 line array is used combine with SQ-18B bass speaker,it can be used to be a line array sound system for over 1000 people or a mini sound system on the floor serve for 100 people,you can make flexible use for different occasions.
In addition,SQ-280 / SQ-18B sound system is very convenient to operate and easy use,one man can control a whole small activity,because it is small and light for transportation and carrying.



Description:

This line array speaker system is designed for applications with high requirements on SPL, sound quality, throw distance, and dispersion. And, this system can be used in outdoors applications like touring concert and living show, and indoors applications like disco, nightclub, conference and church.

SQ-280 / SQ -18B is fixed with 1pcs 1.5" HF and 4pcs 8" LF neodymium drivers. The cabinet design and cabinet dimensions are exactly the same as original Q1. We just changed the crossover mode to actives one full range speaker and the impedance of each speaker is 8 ohm.
SQ -18B When you fly in concert, we suggest you stack 18" subwoofers SQ-280 on the ground to get better LF sound effect.


System configuration:
.
Let us know your requirements on the system or tell us what kind of applications they are, we will offer you one solution---send you one sheet with models,quantity and cost of the products(loudspeakers, amplifiers, processors, cables, connectors, flight cases, rack.....) for your project. Various package available for your projects of different scale.

To avoid damage and scratch during transport,according to customer’s requirement,we can put the items in flight cases.

Black/Gray/White/Purple finish available for different applications.


Applications:

Medium size indoor and outdoor performance,Touring,Clubs,Worships,TV Station Studios,Fixed

installations

Model SQ-280 SQ-18B
Frequency Range 70Hz -18kHz 40Hz-300Hz
Dispersion(-6 dB) H x V 90°x 10°
Sensitivity 99dB 96dB
Maximum Peak SPL 105dB 121dB
Driver LF2 x 8" HF1x 1.5" Exit Compression Driver LF1x 18"
Nominal Impedance
Power Handling 100W - 250W 600W
Connection 2x Speakon NL4
Product dimensions(WxDxH) (mm) 752х425х250 752х600х520
Net Weight 28KG 46KG

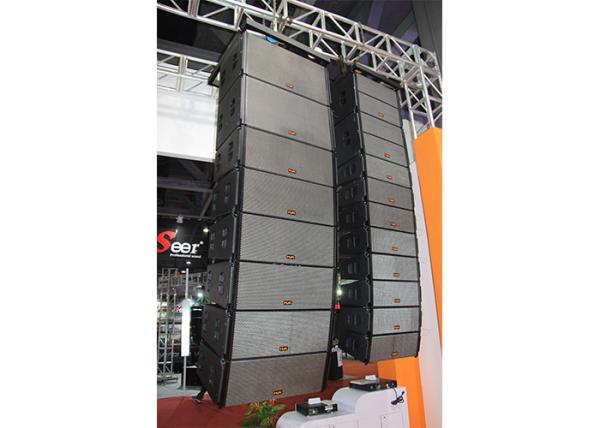

Application Gallery:
