High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Specifications
Brand Name :
HUILONG
Model Number :
CBW-HL001
Certification :
CE CERTIFICATE / ISO
Place of Origin :
CHINA HEBEI
MOQ :
50 COILS
Price :
USD5.0-USD15.0/KG
Payment Terms :
L/C,T/T AT SIGHT
Supply Ability :
40,000 KG PER DAY
Delivery Time :
7 DAYS AS SOON AS GET CUSTOMERS L/C OR DEPOSIT.
Packaging Details :
IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Product Name :
Ukraine Use Galvanized 1000mm BTO16 BTO18 Galvanized Razor Barbed Wire Fence
Material :
stainless steel,galvanized.
Wire diameter :
2.0,2.5,2.8mm
Coil diamter :
300mm 450mm 500mm 700mm 900mm 1000mm Customized
Clip per spirl :
0 3 5
Length :
8,10m as your request
Tensile :
1400-1500MPA
Standard :
ASTM A975, EN
Description
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence
Product Specifications
Attribute Value
Product Name Ukraine Use Galvanized 1000mm BTO16 BTO18 Galvanized Razor Barbed Wire Fence
Material Stainless steel, galvanized
Wire diameter 2.0, 2.5, 2.8mm
Coil diameter 300mm, 450mm, 500mm, 700mm, 900mm, 1000mm (Customized available)
Clip per spiral 0, 3, 5
Length 8m, 10m (Customizable)
Tensile 1400-1500MPA
Standard ASTM A975, EN
Product Overview

Blade barbed wire is a high-security protection product that fixes sharp blades on high-strength steel wire or rope through a specialized process. The blades are manufactured from premium stainless steel or alloy steel, offering exceptional hardness and corrosion resistance to maintain sharpness in harsh environments. The evenly distributed blades create an impenetrable barrier that effectively deters trespassing attempts.

High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Material Composition
  • Blade: Galvanized Steel or Stainless Steel (0.5mm thickness), Barb Length: 12-65mm, Barb Spacing: 26-100mm
  • Core Wire: Electro Galvanized Wire, Hot-dipped Galvanized Wire, or Stainless Steel Wire (2.5mm diameter)
  • PVC Coating: Optional coating for enhanced corrosion resistance and aesthetics (standard green or custom RAL colors)
Common Blade Types
  • BTO (Barbed Tape Obstacle): BTO-10, BTO-18, BTO-16, BTO-22, BTO-30
  • CBT (Concertina Barbed Tape): CBT-60, CBT-65

Our blades feature a high-tensile reinforcing band for maximum strength, significantly more resistant to cutting or trampling. The heavy-duty steel clips withstand approximately 200lbs/100kgs of force, requiring specialized tools for removal.

High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Technical Specifications
Coil diameter Loops Clips Length Note
300mm 33 - 8-10m Single coil
450mm 56 3 8-10m Cross type
500mm 56 3 9-10m Cross type
600mm 56 3 10-11m Cross type
700mm 56 5 10-12m Cross type
900mm 56 5 12-14m Cross type
Manufacturing Process
  1. Raw Material Preparation: Galvanized Steel/Stainless Steel Plate + Wire
  2. Machine Punching: Steel sheet punched into sharp barbs
  3. Machine Forming: Core wire and razor plate assembly

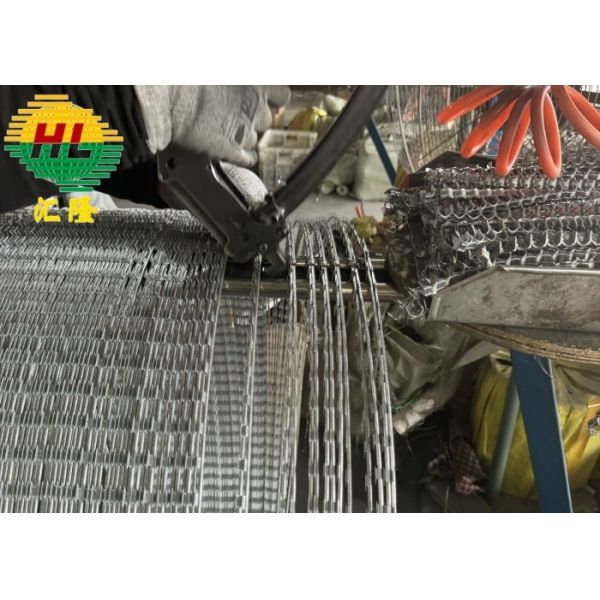

  4. Clip Installation: C-ring clips secured with pneumatic clip guns
  5. PVC Coating: Optional RAL color application
  6. Packaging: Waterproof paper + woven bag, corrugated carton, or pallet
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Packaging Options

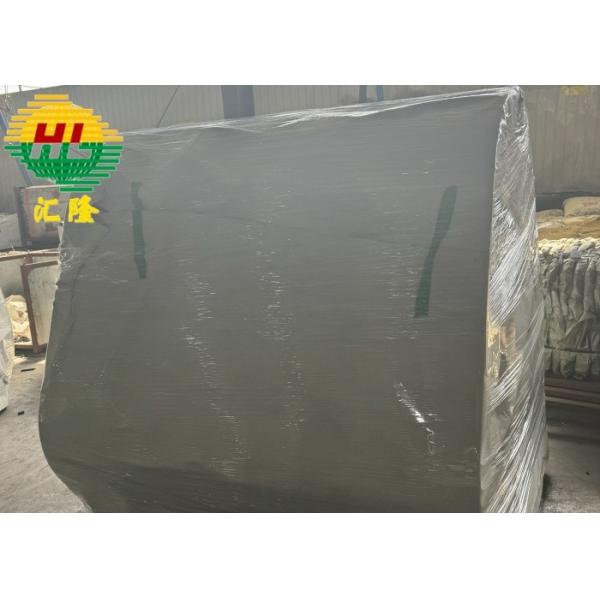

  • Standard Packaging: Waterproof paper + woven bag (loose or compressed with steel belts)
  • Retail Packaging: Small corrugated boxes for individual coils
  • Bulk Packaging: Custom corrugated cartons for 3-5 coils
  • Palletized Packaging: Compressed coils with plastic film and packing belts
  • Custom Solutions: Exclusive packaging services available
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Production Capacity

Our 5,000 square meter production facility includes:

  • 5 punching machines
  • 20 wire wrapping machines
  • 50 automatic pneumatic clip guns
  • 6 manual workbenches
  • 68 skilled workers including quality inspectors

We utilize pneumatic clip guns operating at 90-120psi (6-8bars) for faster, stronger clip installation.

High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Quality Assurance

Our comprehensive quality control system covers all stages from raw materials to final shipment. We adhere to international standards including:

  • ASTM F1910-98(2018) - Long Barbed Tape Obstacles
  • ASTM F1379-95(2018) - Barbed Tape Terminology
  • ASTM F1911-05(2019) - Barbed Tape Installation
Applications

Our concertina barbed wire is widely used in:

  • installations and border security
  • Prisons and detention facilities
  • Government buildings
  • Industrial complexes
  • High-security residential areas
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Enhanced Security Solutions
  • Welded Razor Wire Meshes: Diamond or rectangular patterns for additional security
  • Double Concertina Razor Wire: Combined coils for highest security grade
  • Mobile Deployment Systems: Rapid deployment trailers for temporary barriers
  • Flat Loop Concertina Wire: Low-profile installation for existing fences
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
Frequently Asked Questions
Are you a factory or trading company?

We operate as both a manufacturing facility and trading company. With 18 years of experience, we maintain direct control over production quality while offering comprehensive international trade services.

What's the minimum order quantity?

Standard products have an MOQ of 50 coils. Custom products require negotiation. Sample orders have no minimum quantity requirements.

How do you guarantee product quality?

Our Quality Assurance Department implements strict inspections at every production stage. We provide 24-hour response and 72-hour resolution for any issues, with comprehensive after-sales support.

Company History
  • 1989: Company established in Anping Wire Mesh World Supermarket
  • 1994: Factory founded, serving domestic market
  • 2004: Became joint venture with international investment
  • 2008: Expanded to European markets
  • 2009: Built new 50-acre production facility
  • 2011: Exported to over 100 countries
  • 2020: Established dedicated Concertina Razor Wire Factory
High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection High Security Ukraine Market BTO16 BTO18 Concertina Barbed Wire Fence For Safety Protection
