Specifications
Private Mold :
NO
Products Status :
Stock
Ports :
24
Transmission Rate :
462Mpps
Function :
LACP, POE, SNMP, Stackable, VLAN Support
Communication Mode :
Full-Duplex
Switch Capacity :
2.56/25.6Tbps
Brand Name :
HW
Model Number :
S5732-H24UM2CC
Place of Origin :
Beijing, China
Product name :
24port Full 10 Gigabit Multi-Rate Switch
Port + Power supply :
24 10GBase-T Ethernet ports 4SFP28+2x40GE QSFP
Warranty :
1 Year
Weight :
8kg(including the packaging materials)
Size :
442*420*43.6mm
Model number :
S5732-H24UM2CC
Condition :
New and original
stcok :
Yes
Delivery time :
within 2 day
MOQ :
1 piece
Packaging Details :
Carton
MOQ :
2 pieces
Price :
$2,042.00/pieces 2-29 pieces
Description
Product Description

S5732-H series Switches are brand-new full-10GE(Multi-GE capable) switches developed for the Wi-Fi 6 . S5732-H builds on unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. With these merits, the CloudEngine S5732-H can function as core switches for small-sized campus networks and branches of medium- and large sized campus networks, and also work as access switches for Metropolitan Area Network. CloudEngine S5732-H can provide a maximum of 48 10GE Multi-GE ports, which is a good choice for WLAN APs to connect to a switch in the high-quality campus networks.High-density Multi-GE Access Interface.Enabling Networks to Be More Agile for Services.Delivering Abundant Services More Agilely.Providing Fine Granular Network Management More Agilely.Comprehensive VPN Technologies.Flexible Ethernet Networking.Various Security Control Methods.Mature IPv6 Features.Intelligent Stack (iStack).VXLAN Features.Intelligent O&M.PoE Function(Perpetual PoE+Fast PoE).Intelligent Upgrade.Big Data Security Collaboration.Cloud Management.Open Programmability System(OPS).Licensing IDN One Software.Large-Scale Enterprise Campus Network. CloudEngine S5732-H series switches can be deployed at the access layer of a campus network to build a high-performance and highly reliable enterprise network.Small- or Medium-scale Enterprise Campus Network S5732-H series switches can be deployed at the aggregation layer of a campus network to build a highperformance, multi-service, and highly reliable enterprise network.Small-scale Enterprise Campus Network With powerful aggregation and routing capabilities of CloudEngine S5732-H series switches make them suitable for use as core switches in a small-scale enterprise network. Two or more S5732-H switches use iStack technology to ensure high reliability. They provide a variety of access control policies to achieve centralized management and simplify configuration. S5733-H series switches can be deployed at the access layer of a MAN(Metropolitan Area Network) to build a high-performance, multi-service, and highly reliable ISP MANnetwork.
Specification
Product name
Network Switch S5732-H24UM2CC
Fixed port

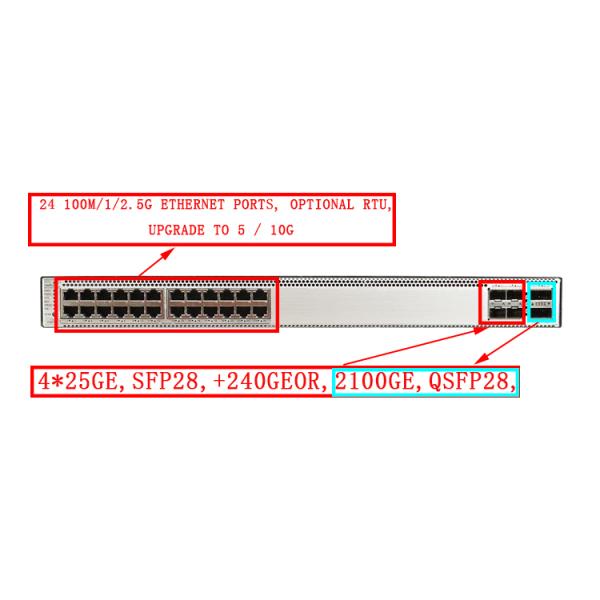

24×100M/1G/2.5G/5G/10GBase-T Ethernet ports, 4 x 1/10/25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28 ports
Exchange capacity
2.56/25.6Tbps
Packet forwarding rate
960Mpps
Warranty
1 year
Weight
8.0kg(including the packaging materials)
Size

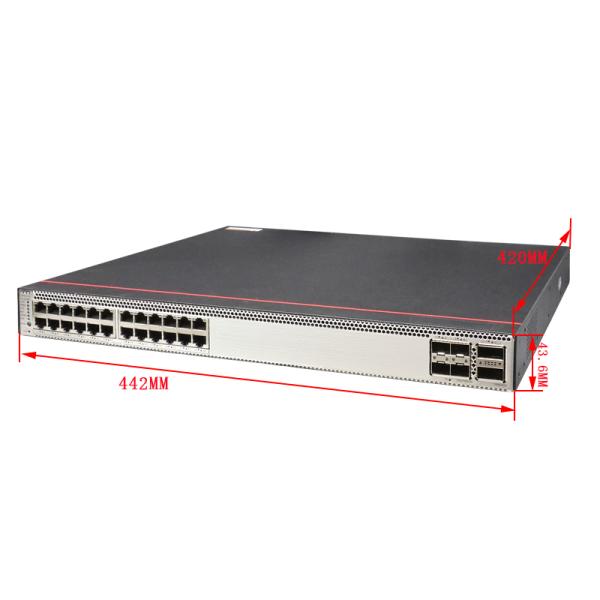

442*420*43.6mm
Condition
New and original
Chassis height
1 U
Power supply type

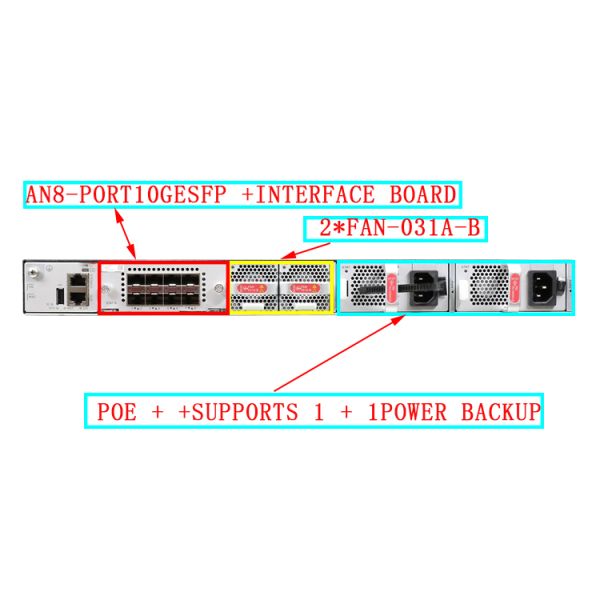

⚫ 600 W PoE AC (pluggable)
⚫ 1000 W PoE AC (pluggable)
⚫ 1000 W PoE DC (pluggable)
Maximum voltage range
⚫ AC input(600 W/1000 W PoE AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz
⚫ High-Voltage DC input: 190 V DC to 290 V DC
⚫ DC input(1000 W PoE DC): -38.4 V DC to - 72 V DC
Operating temperature
-5°C to 45°C
Storage temperature
-40°C to 70°C
VLAN
4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and
ports VLAN mapping
MPLS
MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS
