Specifications
Max. LAN Data Rate :
1000Mbps
With Modem Function :
NO
Standards And Protocols :
Wi-Fi 802.11ax, IEEE 802.3ah
Wi-Fi Supported Frequency :
2.4G & 5G
Supports WDS :
No
Supports WPS :
Yes
Wi-Fi Transmission Standard :
None
Wired Transfer Rate :
10000Mbps
2.4G Wi-Fi Transmission Rate :
150 Mbps
Encryption Type :
WPA-Enterprise
Private Mold :
NO
Products Status :
New
Type :
Wireless
Application :
Network Security
Function :
QoS, VPN
LAN Ports :
2
WAN Ports :
1 x10/100/1000Mbps
Brand Name :
huayutiancheng
Place of Origin :
Beijing, China
5G Wi-Fi Transmission Rate :
433Mbps
Product name :
enterprise class router NetEngine 8000 M1A
Model :
NetEngine 8000 M1A
WeightContained packing material) :
5.2 kg
Size(Contained packing material) :
585 * 390 * 255 mm
Typical power consumption :
74.84W
Chassis height [U] :
1U
Power :
2* DC power supply
Warranty :
1 Year
Product status :
Stock
Typical heat dissipation value :
242.81 BTU/hour ( with configuration )
Packaging Details :
Carton
Supply Ability :
20000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$606.00/pieces 2-9 pieces
Description
Product Description
NetEngine 8000 Series Routing Device (hereinafter referred to as NetEngine 8000 for short) is a new generation of high-end full-field intelligent routing device, which should be mainly used for accessing convergence, private network, private line, IGW, DC GW, data center interconnection and other scenes, with a minimalist structure, intelligent and intelligent connection and high reliability. Smart I P bearer network used. NetEngine 8000 series has three characteristics: ultra-wide network platform, intelligent connection based on SRv6, and full-life cycle automation, which can provide rich business types and high reliable S L A quality, and is the best choice for enterprises and customers to convert from digital to digital. Leading ultra-wide platform Ultra-wide converged bearer platform, with a maximum capacity of 14.4T/slot, is more than 1.5 times ahead of the industry, which meets customers' full-scenario and large-capacity service access requirements, and one network meets all-service converged bearer, and supports the smooth evolution of equipment to a larger capacity. High-density, large-capacity and compact card-box equipment can meet customers' needs, greatly save customers' computer room space and electricity bills, and reduce operation and maintenance costs. Intelligent connection based on SRv6 SRv6 is a new generation minimalist protocol for the future, which naturally supports IPv6 and meets the needs of massive address space access. SRv6+iMaster NCE realizes the cloud dispatching network, and the service jumps into the cloud and is automatically opened in minutes; SRv6 can identify applications and tenants, realize intelligent routing such as delay and bandwidth, and guarantee SLA；; At the same time, SRv6 realizes the unified protocol and simplifies the configuration. Huawei participated in the formulation of more than 75% SRv6 standards in the SRv6 field, taking the lead in realizing large-scale commercialization in the financial and OTT industries, and will continue to lead the evolution and innovation of SRv6. Full life cycle automation Based on the intelligent brain-IMASTENCE, the real-time visual perception and full life cycle automation of the whole network are realized. Accurate downstream detection based on iMaster NCE+IFIT, real-time visual service quality and minute-level rapid fault location; Unique ROAM algorithm, intelligent routing and optimization, network utilization rate increased by more than 20%; AI algorithm alarm compression, Reduce the number of alarms by 99%, improve the efficiency by 90%, and help corporate customers fully move towards the wide-area network of autonomous driving.
Specification
Product name
NE8000 M1A
Warranty
1 year
Amount of machine
30 set
Connection type

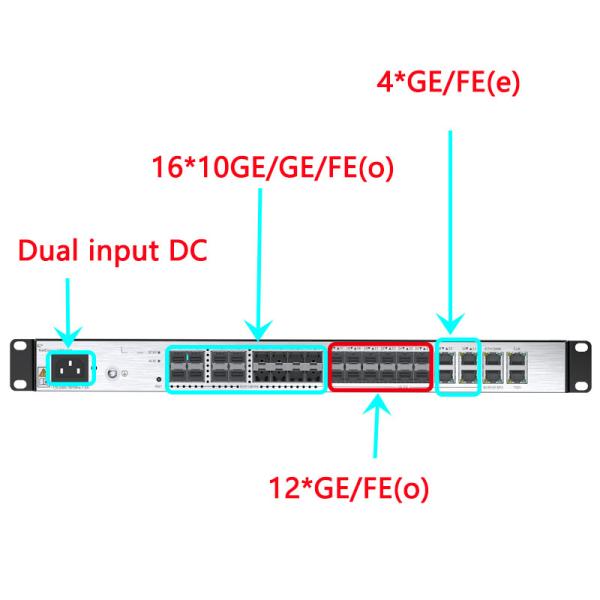

Fixed port enable (6*10GE+26*GE),
2* DC power supply

Weight （Contained packing material）
5.2kg
Size （Contained packing material）
585 mm x 390 mm x 255 mm

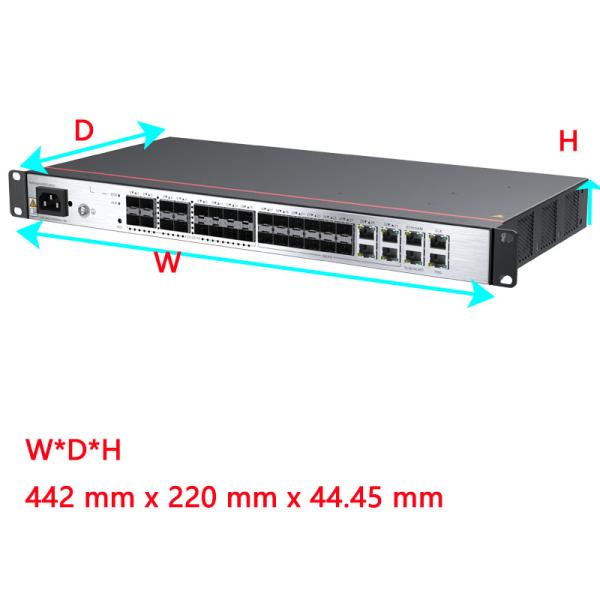

Size （w*d*h）
442 mm x 220 mm x 44.45 mm
Installation cabinet standard
ETSI 21 inches; IEC 19 inches;
IMB(3U)； F01M50 outdoor cabinet
Typical heat dissipation value
(with configuration) [BTU/hour]
242.81 BTU/hour
MTBF[year]
35.99
MTTR[hour]
2 hours
Processor specifications
4-core 1.4GHz
SDRAM specification
4 GB
Flash
64 MB
store

2 GB
Power supply system
DC
