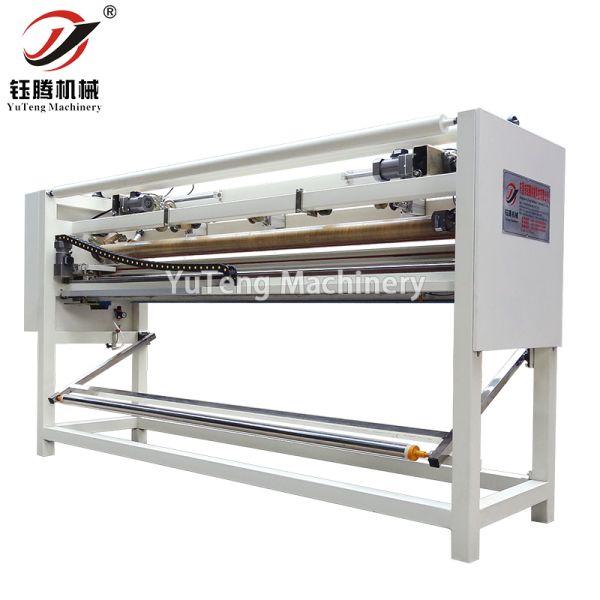

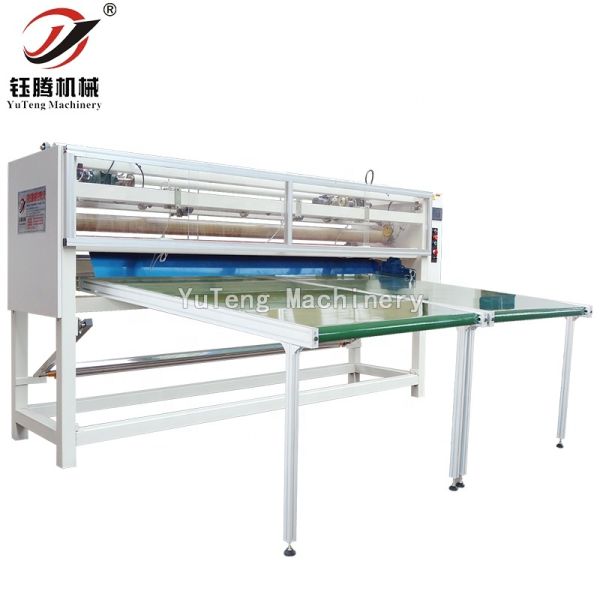

Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Computerized Fabric Edge Cutting Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUTENG
MOQ :
1
Weight :
750 kg
Core components :
PLC, Motor
Machine size :
3200*2200*2500 mm
Cutting width :
2400 mm
Cutting length :
Min 30cm-Infinite
Cutting speed :
Vertical cut 10m/min, horizontal cut 5 s/cut
Machine weight :
600 kg
Max power :
1.8 KW
Voltage :
380V/50HZ, 3-Phase
PLC interface :
5-inch color touch screen
Material feeding :
Synchronous pressure bar
Machine design :
Box shape, optimized
Model :
YTCM96-C
Cutting type :
Cross-cutting, slitting, edge cutting
Phase :
3-Phase
Description

Computerized Fabric Edge Cutting Machine

♦ Product main features :

1.Using national standard 5-inch color touch screen PLC man-machine interface,easy to operate;

2.All computer materials,electrical appliances,motors and so on are adopted by CE certification,greatly extending the service life of the machine;

3.The length and width of the cut can be adjusted by electric length,which makes the operation more user-friendly;

4.Synchronous pressure bar for material feeding,the pressure is even,the feeding and slitting cut is more smooth,especially for the thin material edge trimming;

5.Box shape,optimized design,improve the whole machine running speed and quality of cutting scissors,cutting efficiency is higher.


♦ Purpose :

For seat covers,sofa cushions,quilt covers,bedcovers,home decoration,export packaging,bedding processing,automatic cutting after sewing etc.For cross-cutting,slitting,edge cutting,quilting products,composite products,can also be used alone.

♦ Technical Parameters :

Model

YTCM96-C

Machine size(L*W*H)

3200*2200*2500(mm)

Cutting width

2400mm(can be customized)

Cutting length

Min 30cm-Infinite

Cutting speed

Vertical cut 10m/min,horizontal cut 5 s/cut

Machine weight

600KGS

Max power

1.8KW

Voltage

380V/50HZ , 3-Phase

* Customized model are available to meet client's various needs


♦ Effect diagram :

Computerized Fabric Edge Cutting MachineComputerized Fabric Edge Cutting Machine

♦ Certificate :

Computerized Fabric Edge Cutting Machine

♦ Company pictures :

Computerized Fabric Edge Cutting Machine
