Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Computer Quilting Fabric Cutting Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YUTENG
MOQ :
1
Weight :
650kg
Core components :
PLC, Motor
Touch screen size :
7"
Max X dimension :
2300mm
Max Y dimension :
300mm
Power supply :
380V/50HZ, 220V/60HZ
Machine dimensions :
3700mm*1100mm*1850mm
Operating air pressure :
0.4~0.8Mpa
Material thickness :
3-80mm
Cutting speed :
10 M/Min
Power :
2.6KW
Edge trim :
Yes
Slitters :
Yes
Discharge method :
Conveyor belt mechanical
Feed system :
Electric controls
Description

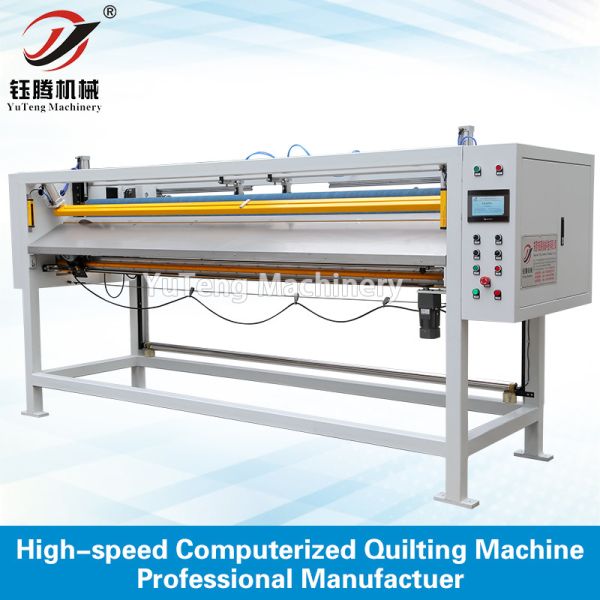

Computer Quilting Fabric Cutting Machine

♦ Product main features :

1,7”touch screen,large screen for ease of operation

2,Hidden slitting blades are more convenient and safer

3,Electric controls for length and width of cross cut which make operations more human

4,Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil

5,Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.


♦ Purpose :

It is used to crosscut,slitting and edge trimming the quilted fabric,and usually works in tandem with

the quilting machine and rolling device,but it can also run alone.

♦ Technical Parameters :

Edge trim/ Slitters The Max.X dimesion: 2300mm
The Max.X dimesion: 300mm
Edge trim The Max.X dimension: 2300mm
Power supply: 380V/50HZ
220V/60HZ
Machine dimension(L*W*H): 3700mm*1100mm*1850mm
Weight: 1300kg
Operating air preasure: 0.4~0.8Mpa
Thickness: 3-80mm
Speed: 10(M/Min)
Power: 2.6KW

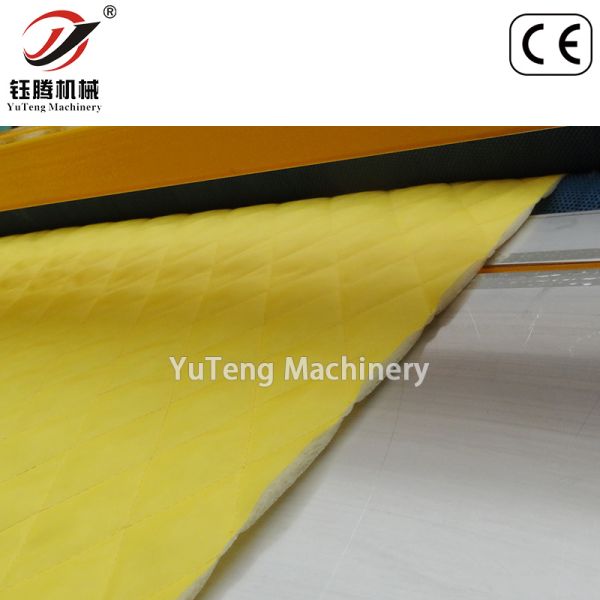

♦ Effect diagram :

Computer Quilting Fabric Cutting MachineComputer Quilting Fabric Cutting Machine

Computer Quilting Fabric Cutting Machine

♦ Certificate :

Computer Quilting Fabric Cutting Machine

♦ Company pictures :

Computer Quilting Fabric Cutting Machine

1. Delivery Time: Within 35 days upon receipt of 30% deposit

2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.

3. Delivery Terms: FOB, CIF, CFR, etc.

4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.

5. Warranty: One year.

6.Customized Model are available to meet client's various needs.
