M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
M.2 NGFF Adapter for B+M Key SATA Bus SSD to Mini PCI-E with Vertical Installation for 2280 Type SSD
Specifications
Brand Name :
BQZYX
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$7.30-9.90
Interface type :
Mini PCI-E/mSATA
SSD support :
M.2 Socket 3 PCI-e-based M Key 2280 SSD (Mini PCI-E mode), M.2 SATA bus B+M key SSD (Msata mode)
Speed :
1X speed (Mini PCI-E mode)

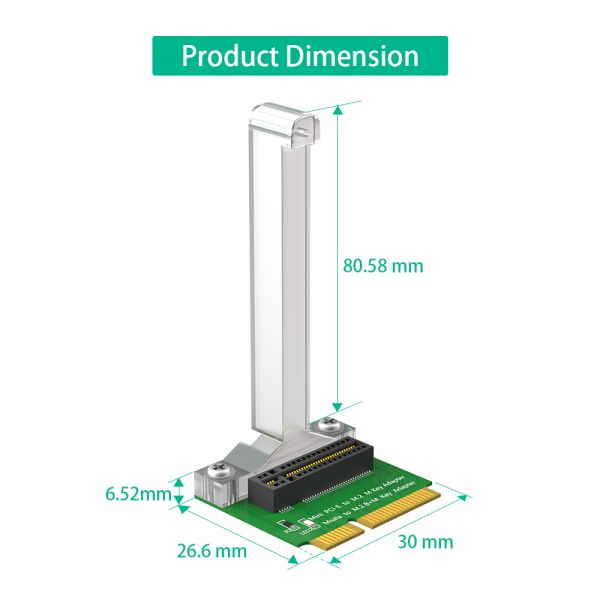

Dimensions :
160*90*30
Installation type :
Vertical installation
Slot requirement :
Half size (26.80x30mm) or full size (50.95x30mm) Mini PCI-e/msata slot
Material :
Plastic support frame, metal bracket
Included components :
1x adapter, 1x plastic frame, 1x metal bracket, 4x M2 screws, 1x screwdriver, 1x manual
SSD type :
2280 type
Key type :
B+M key
Bus type :
SATA bus
Compatibility :
M.2 NGFF nvme SSD
Model number :
HL-0019102901
Color :
Green
Product status :
Stock
Description
M.2 NGFF NVMe SSD / B+M Key SATA Bus SSD to Mini PCI-E Adapter
This vertical installation adapter is designed for 2280 type SSDs, providing reliable conversion between M.2 and Mini PCI-E interfaces with enhanced stability through its plastic support frame design.
Product Features & Compatibility

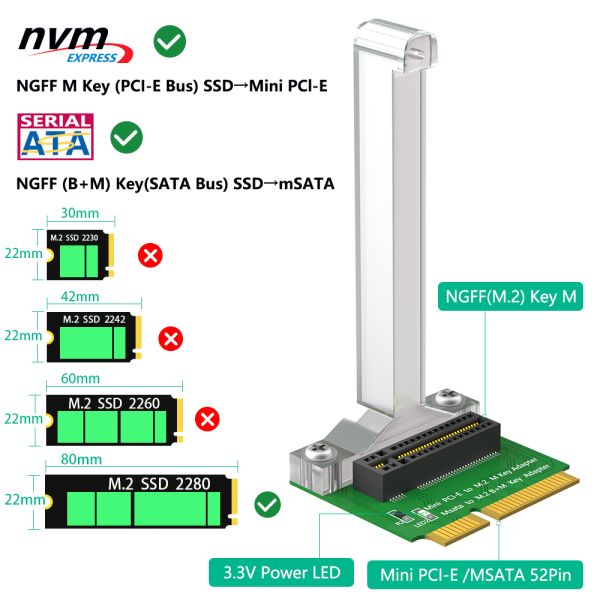

Mini PCI-E Interface Supports M.2 Socket 3 PCI-e-based M Key 2280 SSDs only. Does not support M.2 SATA bus B key SSDs. Speed limited to 1X.
mSATA Interface Supports M.2 SATA bus B+M key SSDs only. Does not support M.2 Socket 3 PCI-e-based M Key 2280 SSDs.

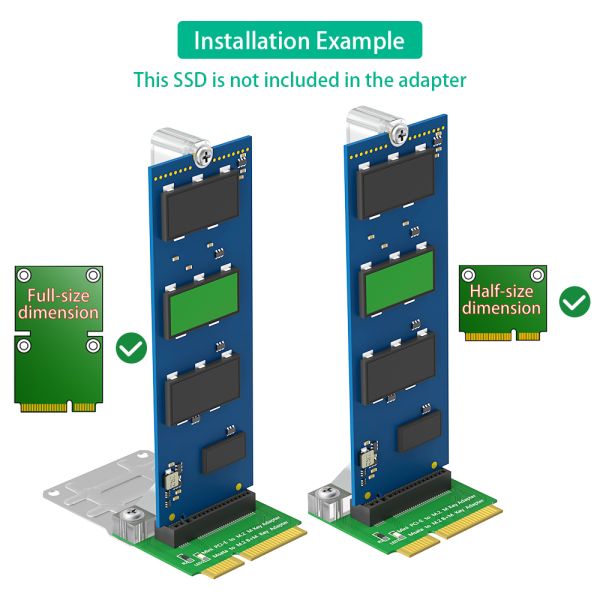

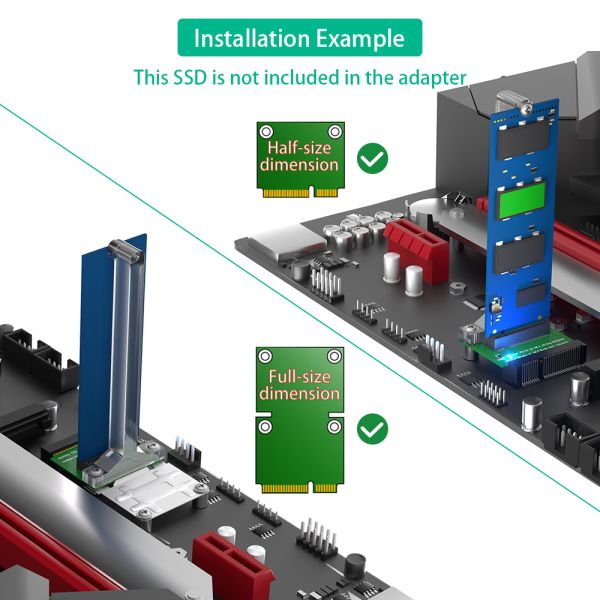

System Requirements Requires half size (26.80x30mm) or full size (50.95x30mm) Mini PCI-e/mSATA slot on motherboard.
Installation Design Vertical installation with plastic support frame for enhanced stability and reliability.

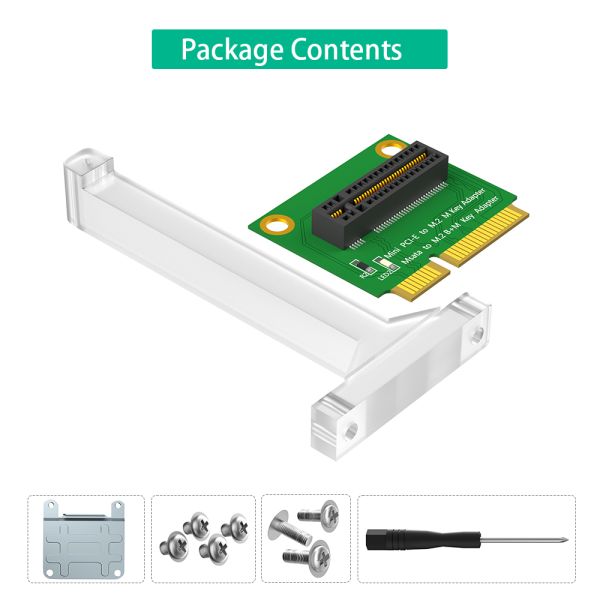

Package Contents
  • 1x Mini PCI-E (mSATA) adapter
  • 1x Plastic support frame
  • 1x Minicard extender metal bracket
  • 4x M2 Screws
  • 1x Screwdriver
  • 1x Manual
