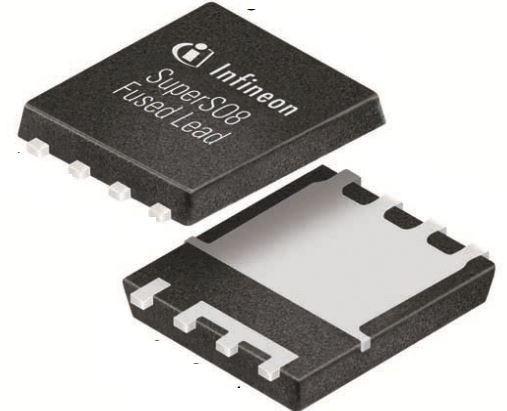

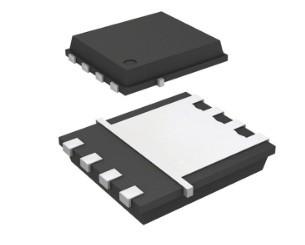

BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
BSC123N08NS3G High Power MOSFET N CH 80V 11A Automotive 8 Pin TDSON EP
Specifications
Brand Name :
Infineon
Model Number :
BSC123N08NS3G
Place of Origin :
CHINA
MPN :
BSC123N08NS3G
MFR :
Infineon
Category :
Mosfet
Size :
1*5.15*5.9mm
MOQ :
package qty
Price :
contact sales for updated price
Packaging Details :
tape and reel
Delivery Time :
2 weeks
Payment Terms :
T/T
Supply Ability :
1000+
Description

BSC123N08NS3G Infineon Trans MOSFET N-CH 80V 11A Automotive 8-Pin TDSON EP

Product Technical Specifications

EU RoHS Compliant with Exemption
ECCN (US) EAR99
Part Status Active
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive Unknown
PPAP Unknown
Product Category Power MOSFET
Process Technology OptiMOS
Configuration Single Quad Drain Triple Source
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 80
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 11
Maximum Drain Source Resistance (MOhm) 12.3@10V
Typical Gate Charge @ Vgs (nC) 19@10V
Typical Gate Charge @ 10V (nC) 19
Typical Input Capacitance @ Vds (pF) 1430@40V
Maximum Power Dissipation (mW) 2500
Typical Fall Time (ns) 4
Typical Rise Time (ns) 18
Typical Turn-Off Delay Time (ns) 19
Typical Turn-On Delay Time (ns) 12
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Pin Count 8
Standard Package Name SON
Supplier Package TDSON EP
Mounting Surface Mount
Package Height 1
Package Length 5.15
Package Width 5.9
PCB changed 8
Lead Shape No Lead
