Specifications
Place of Origin :
China
Brand Name :
JY
Ice Shape :
Ice Cube
Voltage :
220V
Dimension(L*W*H) :
562*830*1560 mm
Warranty :
1 Year
Key Selling Points :
High Productivity
Ice storage capacity :
30kg, 900kg, 140kg, 350KG, 80KG, 700kg, 40kg, 400kg
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Compressor brand :
TECUMSEH
Application :
Industrial, Industry.etc
Name :
Cube ice machine
Type :
Automatic Ice Maker
Material :
Stainless Steel
Control system :
Automatic Control System
Ice size :
29mm*29mm*22mm /22mm*22mm*22mm
Keyword :
Commercial Block Ice Making Machine
Daily capacity :
45kg/d
Feature :
High Efficiency
Power supply :
320w
Applicable Industries :
Restaurant, Hotels, Building Material Shops, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop
Condition :
New
Power :
0.8kW
Packaging Details :
Export Standard Package
Port :
shanghai
Supply Ability :
2000 Set/Sets per Year
Price :
$35.00/sets 1-9 sets
Description
Product Description

22*22*22 cube ice machine with evaporator ice maker manufacturer suppliers from China
Grids quantity
Maximum production capacity
Evaporator size
Grids size
5*9
48kgs/day
237*259mm
22*22*22mm
5*10
54kgs/day
237*282mm
22*22*22mm
5*11
60kgs/day
237*305mm
22*22*22mm
5*12
65kgs/day
237*328mm
22*22*22mm
5*14
75kgs/day
237*374mm
22*22*22mm
5*16
86kgs/day
237*420mm
22*22*22mm
5*18
97kgs/day
237*466mm
22*22*22mm
6*14
90kgs/day
260*374mm
22*22*22mm
6*18
116kgs/day
260*466mm
22*22*22mm
7*18
136kgs/day
282*466mm
22*22*22mm
9*12
116kgs/day
330*330mm
22*22*22mm
11*18
215kgs/day
376*468mm
22*22*22mm
12*13
170kgs/day
422*537mm
22*22*22mm
13*18
252kgs/day
422*468mm
22*22*22mm
13*21
295kgs/day
422*537mm
22*22*22mm
11*17
295kgs/day
422*537mm
28*28*22mm
14*13
196kgs/day
399*353mm
22*22*22mm
17*21
385kgs/day
514*537mm
22*22*22mm
19*18
370kgs/day
560*468mm
22*22*22mm
19*21
430kgs/day
560*537mm
22*22*22mm
16*17
430kgs/day
560*537mm
28*28*22mm
11*12
430kgs/day
560*537mm
40*40*22mm
21*23
520kgs/day
537*604mm
22*22*22mm
Any size can be customized, please contact!
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker
Specification
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker
TECUMSEH Compressor Nickel Cube Ice Making Machine Evaporator for Copper Ice Maker

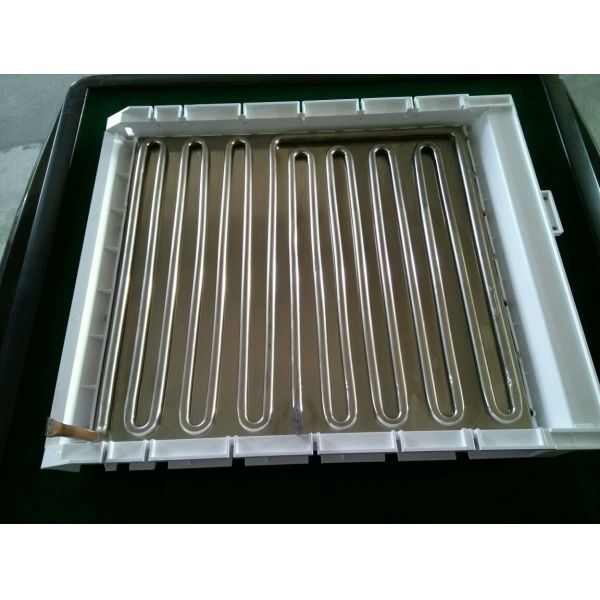

Product features:
*Mainly used for quick cycle ice-making of household and commercial ice machine *It is made of copper by welding, with advantage of heat exchanging.

*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice
board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.

*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.

*There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.

*The ice cube is nearly square and it is transparent with high density.

Working principle:
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice
grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.
