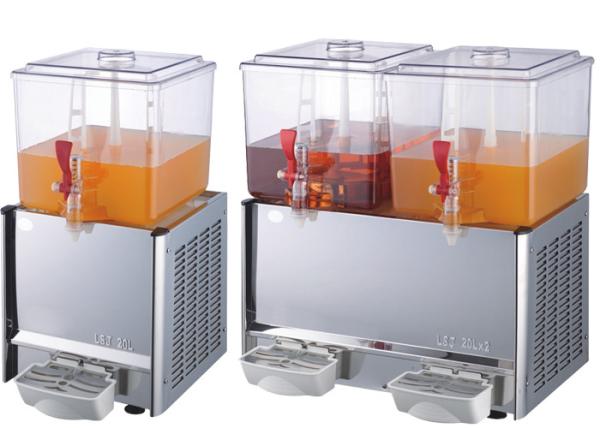

12L Commercial Refrigeration Equipment Spray / Pedal Type Commercial Beverage Dispenser
Features
- The panel is made of stainless steel 304 which is high-grade and easy cleaning.
- The compressor is derived from “Wanbao” or “Qianjiang” which are the best famous and professional compressor manufacturer in China

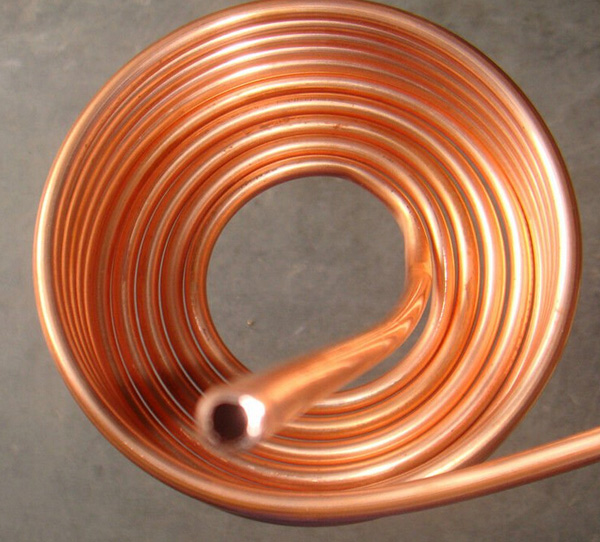

- Red copper evaporator conducts cool air very fast
- Our models are very complete from 12L to 50L.
- We supply cooling function machine,heating function machine and both cooling and heating combination one.All can match with mixing and spraying function.
- Magnetic rotating
- The tank is made of PC(Polycarbonate) meterial which is high/low temperature resistance, innoxious, antiflaming and good flexibility.
- We have been in this line for about 10 years; our customers are over 20 countries. We always supply the best service after-sale.
OPTINAL:
- Spray or pedal type;
- Hot drink tank;
Specifications:
12L/tank
| Model | LSP-12X1 | LSP-12X2 | LSP-12X3 | LSJ-12X1 | LSJ-12X2 | LSJ-12X3 |
| Dimension | 470x360x690 | 460x450x690 | 640x540x740 | 470x360x690 | 460x450x690 | 640x540x740 |
| Refrigerant | R134a | R134a | R134a | R134a | R134a | R134a |
| Power(kw) | 0.24 | 0.39 | 0.45 | 0.24 | 0.39 | 0.45 |
| Power Supply | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz |
| Capacity | 12LX1 | 12LX2 | 12LX3 | 12LX1 | 12LX2 | 12LX3 |
| Type | spray | spray | spray | pedal | pedal | pedal |
18L/tank
| Model | LSP-18X1 | LSP-18X2 | LSP-18X3 | LSJ-18X1 | LSJ-18X2 | LSJ-18X3 |
| Dimension | 470x360x740 | 510X470X740 | 750X470X740 | 470x360x740 | 510X470X740 | 750X470X740 |
| Refrigerant | R134a | R134a | R134a | R134a | R134a | R134a |
| Power(kw) | 0.24 | 0.39 | 0.475 | 0.24 | 0.39 | 0.475 |
| Power Supply | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz | 220v/50hz |
| Capacity | 18LX1 | 18LX2 | 18LX3 | 18LX1 | 18LX2 | 18LX3 |
| Type | spray | spray | spray | pedal | pedal | pedal |
20L/tank
| Model | LSJ20Lx1 | LSJ20Lx2 |
| Dimension | 420x350x680 | 600x350x680 |
| Refrigerant | R134a | R134a |
| Power(kw) | 0.28 | 0.35 |
| Power Supply | 220V/50Hz | 220V/50Hz |
| Capacity | 20Lx1 | 20Lx2 |
| Type | pedal | pedal |
50L/tank
| Model | LSP50 | LSJ50 |
| Dimension | 520X520X730 | 520X520X730 |
| Refrigerant | R134a | R134a |
| Power(kw) | 0.33 | 0.33 |
| Power Supply | 220v/50hz | 220v/50hz |
| Capacity | 50LX1 | 50LX1 |
| Type | spray | pedal |

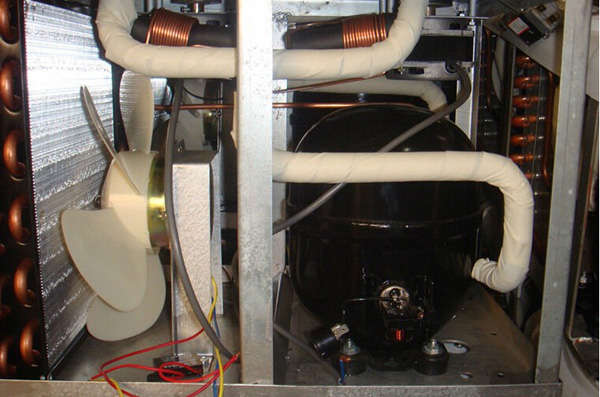

Cooling group

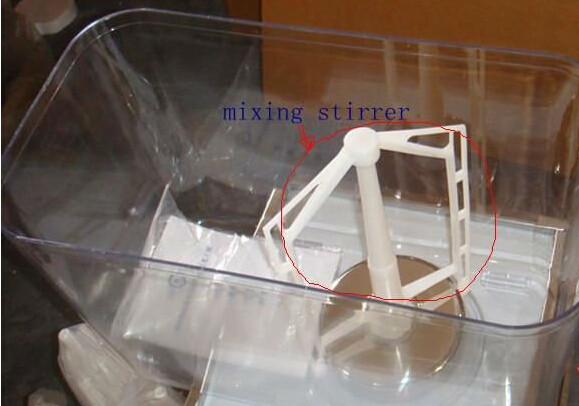

Mixing type

Spray type

Copper
