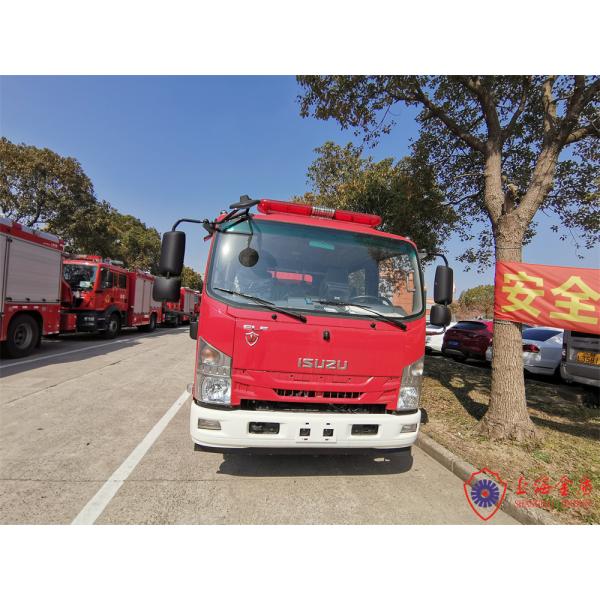

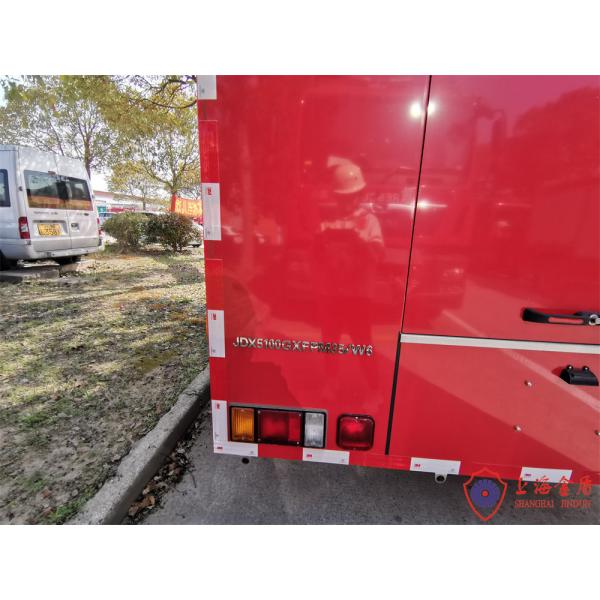

Stainless Steel Foam Fire Truck With Pump Monitor 2500L 10 Ton
Stainless Steel Foam Fire Truck With Pump Monitor 2500L 10 Ton
Stainless Steel Foam Fire Truck With Pump Monitor 2500L 10 Ton
Stainless Steel Foam Fire Truck With Pump Monitor 2500L 10 Ton
Specifications
Brand Name :
ISUZU, MAN or HOWO (optional)
Model Number :
PM35
Certification :
ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Place of Origin :
Shanghai,China
MOQ :
1 unit
Price :
Factory price, Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 units per year
Delivery Time :
90 days
Packaging Details :
exporting standard package or customized packing
Drive type :
4×2
Chassis brand :
ISUZU
Seat (inc. driver) :
2+3
Water capacity :
2500L
Foam capacity :
1000L
Fire pump :
USA HALE
Max power :
139kw/189hp
Dimension :
6870×2240×3040 (mm)
Product name :
Light foam fire truck
Description

Modern 10 Ton Foam Fire Fighting Truck use USA Fire Pump and Fire Monitor

PM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.

Whole vehicle Dimensions 6870X2240X3040 mm
　 Full load permissible weight 10000 kg
　 Vehicle total weight 6125 kg
　 Fire-extinguishing agents water+foam:3500 kg
　 Max. Power (kw/hp) 139 kw/189hp
Chassis Manufacturer ISUZU chassis
　 Drive type 4x2
　 Cab double cabin (1+1+3)
　 Wheelbase 3815mm
　 Clutch Monolithic, dry
Fire pump Manufacturer USA HALE Company
　 Model AP32
　 Flow 32L/s
　 Pressure 1.0MPa
Tank Capacity Water: 2500kg, foam:1000kg
　 Material high quality stainless steel

Stainless Steel Foam Fire Truck With Pump Monitor 2500L 10 TonStainless Steel Foam Fire Truck With Pump Monitor 2500L 10 Ton

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
