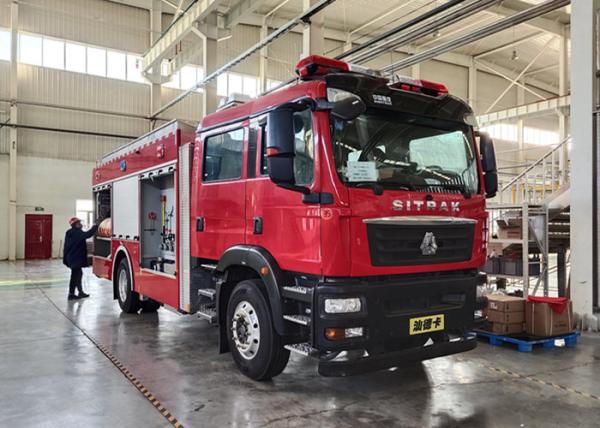

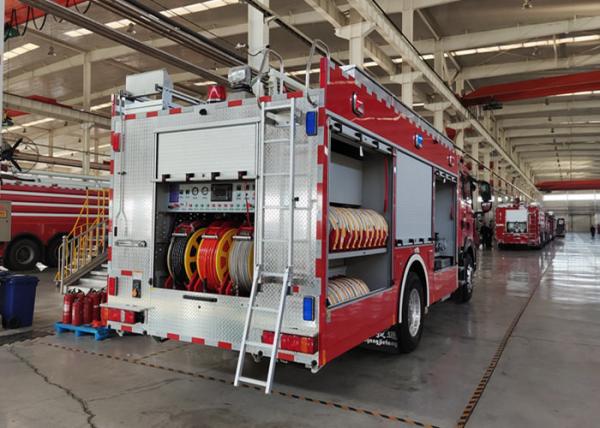

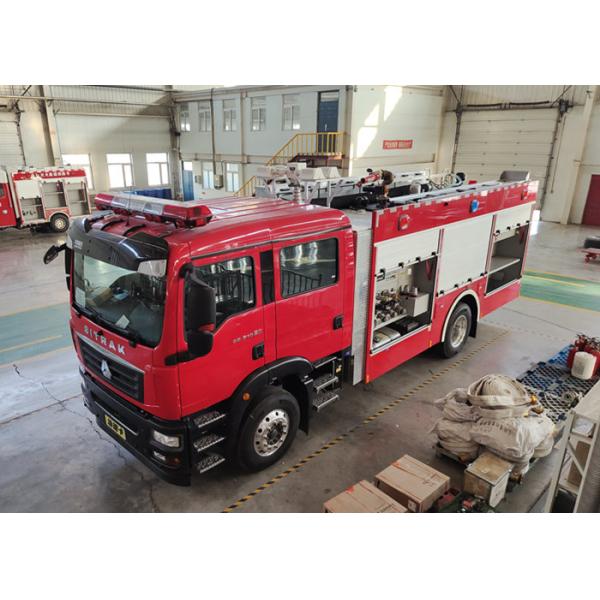

206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam
206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam
206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam
206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam
Specifications
Brand Name :
CIMC Jindun
Model Number :
PM80
Certification :
ISO9001,CCC
Place of Origin :
Shanghai, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Money Gram
Supply Ability :
300 units/year
Delivery Time :
120 days
Packaging Details :
roll roll
Dimension :
8475×2500×3400 mm
Gross weight :
19800kg
working height :
25m
Wheel base :
1875+3950+1380 mm
Fording depth :
500mm
Seat :
2+4
Driving :
6×4
Water :
6000L
Foam :
2000L
Product name :
8000L water tanker fire truck
Description

206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam

Vehicle

Dimension (L×W×H) 8475×2500×3400 (mm)
Gross weight 19800 (kg)
Complete vehicle shipping mass 11600 (kg)
Seat (inc. driver) 2+4
Max. power 206kw

Chassis

Manufacturer Sinotruk HOWO
Model ZZ5207M4617D5
Drive type 4x2
Cab Four door lengthen cab
Wheelbase 4600mm
Max. speed 100km/h
Min. turning diameter ≤20m
Approach angle 16°
Departure angle 14°
Engine type Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.28-40
Max. torque 1190N.M
Emission standard China IV
Clutch pull type diaphragm
Gearbox Manual, 10 forward gear

Liquid tank

Capacity Water: 6000L, Foam: 2000L
Material High quality stainless steel 304
Structure Total side girder structure

Device

2 ingate

1 overflow device

2 liquid level sensor

2 DN40 drain outlet with valve

4 DN80 filling pipe end
Technical requirements

Conform to rule GA39.4-92

Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.

Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card
  5. Chassis certificate, vehicle certificate, 3C logo
  6. Engine code copy
  7. Chassis code copy
  8. Onboard equipment list
  9. Follow-up service card
  10. Hand-over list



206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam

206kw Four doors Lengthen Cab Water Tanker Fire Truck With 8000L Water/Foam
